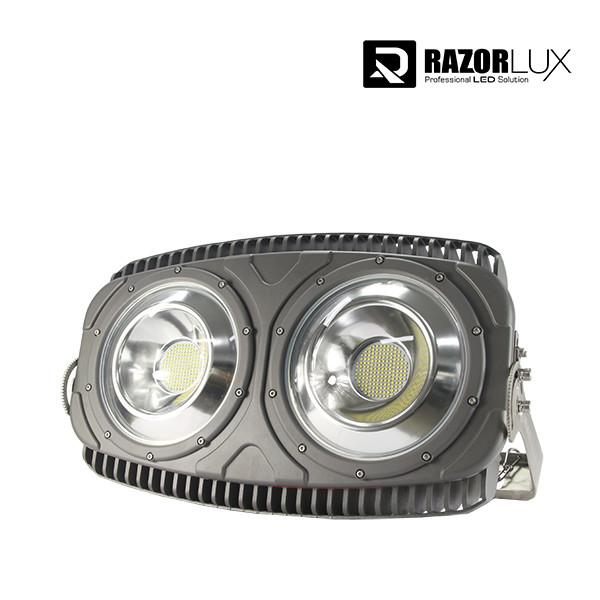

1000w LED Stadium High Mast Flood Light IP67 anti-corrosion housing and high lumen efficiency
1000w LED Stadium High Mast Flood Light IP67 anti-corrosion housing and high lumen efficiency
Specifications
Brand Name :
Razorlux
Model Number :
RGL-1000A
Certification :
ce, LVD, RoHS, Saa
Place of Origin :
Shaanxi, China
MOQ :
1 piece
Price :
900USD-1300USD/PCS
Supply Ability :
5000 Piece/Pieces per Month
Packaging Details :
1.EPS Foam+carton(ONE UNIT PER CARTON)
2.Carton Size(mm):550*450*415mm
3.One 20'' Container can accept 250 Units
Color Temperature(CCT) :
5700K (2700 ~ 6500K available on request)
Lamp Luminous Efficiency(lm/w) :
130
Support Dimmer :
Yes
Lighting solutions service :
Lighting and circuitry design, DIALux evo layout
Working Time (hours) :
50000
Input Voltage(V) :
100 ~ 306Vac, 400 ~ 600Vac
Beam Angle(°) :
15° 20° 60° 120° 140°X60°,
Lamp Body Material :
Aluminum & Powder coating
Application :
Sports Stadiums
Light Source :
LED
Lamp Luminous Flux(lm) :
130,000 lm
Working Temperature(℃) :
-40C~60C/40F~140F,
Warranty(Year) :
5-Year
Product Name :
multiple beam angle LED Stadium Exterior Lighting
Power :
800W
Housiong Material :
Aluminum alloy
IP Class :
IP 67
Color Rendering :
≥Ra75
Description
1000w LED Stadium High Mast Flood Light IP67 anti-corrosion housing and high lumen efficiency
LED Sports light technical parameter:
Model
1000P-L15
1000P-L20
1000A-L60
1000A-L120
1000A-L140
Beam Angle
15°
20°
60°
120°
140°x60°
Stable Flux
(5700K after 1 hour)
115,000 lm
118,000 lm
130,000 lm
135,000 lm
130,000 lm
Dimension (mm)
671x405x374mm 671x405x322mm 671x405x204mm

Power Consumption
LEDs
950W
Driver
50W
Total
1000W
Replace HID Lamp
2000 ~ 3000W
Net Weight
29kg (64lbs) with stainless steel floodlight bracket
Color Temperature
5700K (2700 ~ 6500K available on request)
Color Rendering
≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life
≥50000Hrs
Housing Material
Aluminum Alloy
Coating
Anti-corrosion Powder Coating
IP Class
IP 65 (Upgradeable to IP 67)
Insulation Class
Class I
Working Temperature
-40 ~ 60C / -40 ~ 140F
Working Humidity
10% ~ 95%
AC Input
100 ~ 305Vac, 400 ~ 600Vac
DC Input
100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD
<10%
Power Factor
≥0.98
Warranty
LED Module
5 year
Driver
5 year
Housing
10 year



1000w LED Stadium High Mast Flood Light IP67 anti-corrosion housing and high lumen efficiency
1000w LED Stadium High Mast Flood Light IP67 anti-corrosion housing and high lumen efficiency
1000w LED Stadium High Mast Flood Light IP67 anti-corrosion housing and high lumen efficiency

Features & Specifications:

  • Exquisite design with patent.
  • Power Range: 6000W-1000W
  • Input Voltage: AC100-305, DC127-431
  • Color Temperature: 2700K-6500K
  • Lamp Efficiency: 130LM/W
  • Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
  • CRI: Ra>75
  • IP Grade: IP65/IP67
  • Bracket: Stainless Steel
  • Driver: MEANWELL
  • LED Chip: SAMSUNG

FAQ:

1. Are you a factory or trading company:

We are a factory located in Xi'an China, established in 2006.

2. What is your product range?

Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.

3. How many days of production will the order take?

Normally 7-15 days, depending on the order quanity.

4. How do you ship goods abroad?

We ship goods by express, air, by sea, by train. Or by customer's appointed forwarder. This step will be discussed before or after order placed.

5. Does your product support smart control like sensor, dimming, DALI, etc.

Yes, our lights compatible with all mainstrain smart control method.

6. How do you deal with failed lights?

We have 3 years and 5 years warranty options, and we will send customer free parts for replacing if there is a failure.
