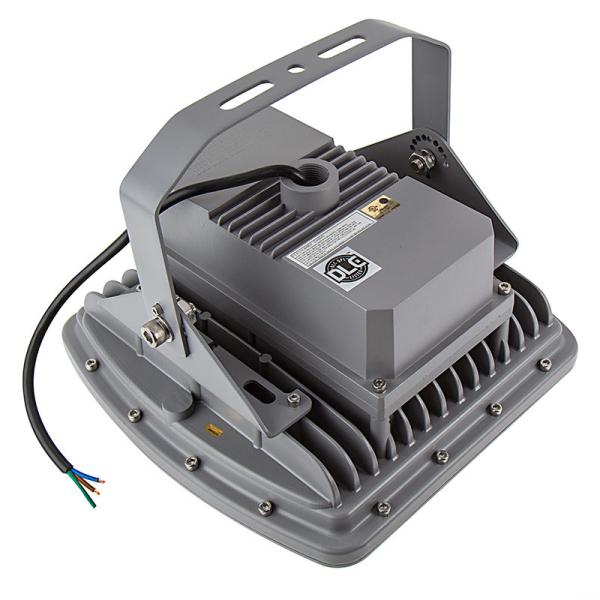

Exclusive Patent 4000K Ip68 Waterproof Led Lights 40W Gas Station Canopy Lights
Exclusive Patent 4000K Ip68 Waterproof Led Lights 40W Gas Station Canopy Lights
Specifications
Place of Origin :
Shaanxi, China
Brand Name :
Razorlux
Certification :
ce, C-tick, PSE, RoHS, Saa
Packaging Details :
Delivery term: FOB Tianjin/Shanghai, EX-Work, CFR, CIF
3-5 days for samples after payment
Supply Ability :
1000 Piece/Pieces per Week
Price :
$80.00 - $120.00/Pieces
Model Number :
R EP-J-40
Color Temperature(CCT) :
5700/4000/2700K, Cool White
Input Voltage(V) :
90-305 VAC
Lifespan (hours) :
100,000
Working Time (hours) :
100,000
Product Weight（kg） :
4
CRI (Ra>) :
75
Lamp Luminous Flux(lm) :
3480lm
Product Name :
Exclusive patent design IP68 waterproof 5 years warranty 40w led explosion proof flood light for gas station canopy
Power :
40W
Material :
Die Cast Aluminum
Description
Exclusive patent design IP68 waterproof 5 years warranty 40w led explosion proof flood light for gas station canopy

FEATURES:

1.High Efficacy low decay 700MA LED chip
2.High heat transmit die cast housing ADC12 aluminum, patent design, IP68
3.Shock and vibration resistant tempered glass, super clear 95% light transmit rate
4.Anti-glare.Scientific optical reflector design, making the light more focus,even, comfortable for eyes
5.Original Bridgelux LED source,high luminous efficacy and long lifespan
6.MEANWELL HLG series driver, the highest level of MEANWELL driver
7.Surface treatment-Powder painted, salt resistant and chemical resistant, also hard for dust to accumulate on the surface
8.2.0mm aluminum PCB with heat index 2.5, keep LED working under cool temperature
9.Working temperature: -30ºC to 50ºC.
ITEM NO.
RLEP-J40
RLEP-J100
RLEP-J200
TOTAL POWER
30w
100w
185w
Replace HPS
150w
300-350w
700-1000w
Dimension
200*200*270mm
300*300*175mm
400*400*185
Weight
4KG
7.5KG
12KG
Reflector/ wide angle
120
wide angle
wide angle
Nominal lumens
3480lm
11600lm
20880lm
Driver Current
350mA
# OF LEDS
24
84
156
System Efficacy
116 LM/W
Light Color option
5700/4000/2700K
Materia
Die Cast Aluminum
Wide AC input
90-305 VAC
Power Factor
0.98
Total Harmonic Distortion
< 10%
Surge protection
IEC/EN 61000-4-5
Operation temp
-30 ºC to +50 ºC
IP class
68
Rated Life
100,000+ hrs
Warranty
5 years
Certificate
ROHS CE DLC ATEX SAA PSE C-TICK

COOLING DESIGN – The powerful high lumen work light has an extraordinary ability to stay cool.

The back ribbed design makes it heat radiating, preventing the potential for damage under high working temperatures.

QUALITY – FCC, ETL certifications. Made with a sturdy powder coated steel frame.

The work light is suitable for use in a variety of activities and environments.

Even on rainy days, the work light performs to its standard and provides lighting under the toughest conditions.

WHAT’S MORE – 10 ft. Power Cord, which is longer than most work lights on the market.

On/off switch on each head, IP65 waterproof. Black frame and yellow light frame combination makes the product conspicuous.

Easy install and storage. FIVE YEAR WARRANTY.

Application
1. Suitable for gas station, petroleum and chemical industries, coal mine, military, airport, warehouse, marine etc.
2. Zone1 & Zone2 gaseous environment, and Zone21 & Zone22 dust environment.
3. Class I Division 2 Group A, B, C, D
