Highway Billboard P10 Advertising Led Screen
Highway Billboard P10 Advertising Led Screen
Highway Billboard P10 Advertising Led Screen
Highway Billboard P10 Advertising Led Screen
Highway Billboard P10 Advertising Led Screen
Highway Billboard P10 Advertising Led Screen
Highway Billboard P10 Advertising Led Screen
Highway Billboard P10 Advertising Led Screen
Specifications
Brand Name :
Hongwei
Model Number :
P10
Certification :
CE,FCC,ROHS
Place of Origin :
Shenzhen, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces/month
Delivery Time :
10-15 working days
Packaging Details :
Wooden case
Pixel pitch :
10mm
Brightness :
6500cd/sqm
Cabinet material :
Iron cabinet
Cabinet size :
960*960mm or customized
Pixel density :
10000dots/sqm
Scan mode :
2 scan
Refresh rate :
1920Hz~3840Hz
Power Supply :
110V~240V AC
Warranty :
2 Years
Certificate :
CE ROHS FCC
Description

Highway billboard P10 Advertising Led Display

Key features

Our company have 8 years led display experience,who are manufacturer of full color led display,especially in indoor/outdoor rental advertising led display screen.We have led solution experience for many years

  • Large number of pixel options available

  • High refresh rate and gray scale ensures the picture quality remains seamless

  • WiFi / 4G / APP / USB / PC/HDMI flexible control methods
  • IP65 waterproof rate

​

Parameter of P10 highway advertising led display

You can refer to below specification for more details:

Pixel pitch 6mm 8mm 10mm
Led lamp SMD 3535 SMD 3535 SMD 3535
Module size 192*192mm 256*128mm 320*160mm
320*160mm
Scan method 1/8 S 1/4 S 1/2 S
1/5 S
Brightness >=6500cd/sqm >=6500cd/sqm >=6500cd/sqm
Pixel density 27777dots/sqm 15625dots/sqm 10000dots/sqm
Panel material Iron cabinet Iron cabinet Iron cabinet
Panel size 960*960mm 960*960mm 960*960mm
Average power consumption 500w/sqm 600w/sqm 600w/sqm
Max power consumption 900w/sqm 1000w/sqm 1000w/sqm
Best view distance 6-68m 8-88m 10-120m
Gray level 12-4bit
View angle H≧140° V≧140°
Refresh rate ≧1920 Hz ≧3840 Hz
Protection level IP65
Control system Linsn/Colorlight/Novastar
Frame frequency ≧50/60 Hz
Input voltage 100-120V 200-240V
Screen life 100000h


Application of P10 highway advertising led display

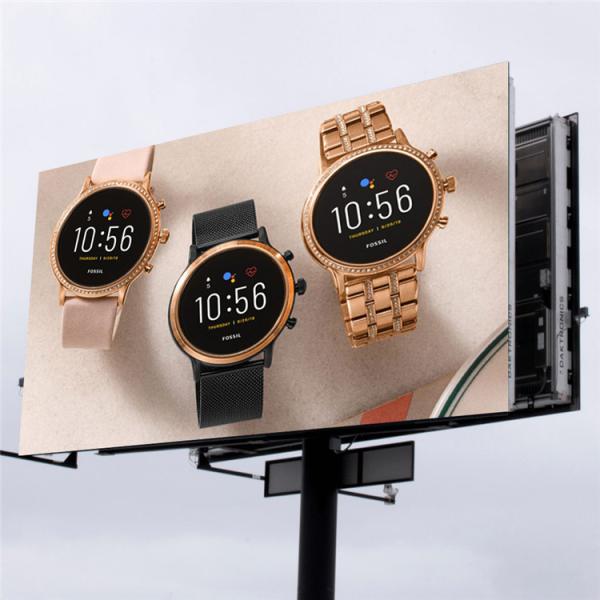

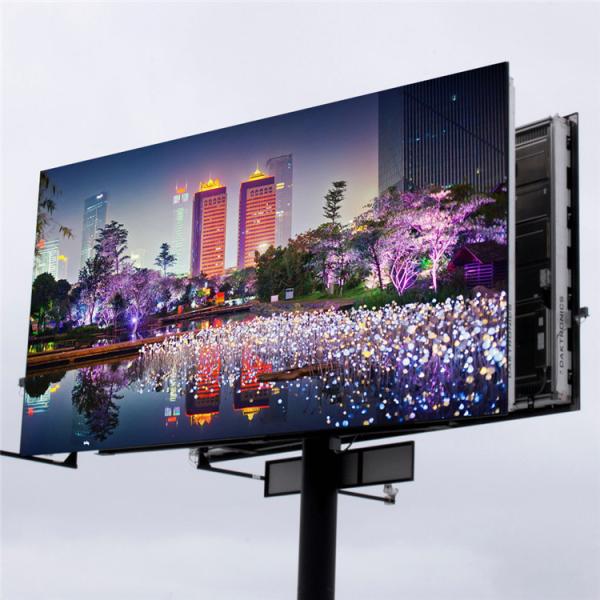

P10 highway advertising led display is widely used on the side of highway

Highway Billboard P10 Advertising Led Screen

Highway Billboard P10 Advertising Led Screen

Why choose our P10 highway advertising led display

Aging testing is a must to see if there are any problem products.We need keep all are the working normal before shipment

Highway Billboard P10 Advertising Led Screen

Highway Billboard P10 Advertising Led Screen

Highway Billboard P10 Advertising Led Screen

Installation of P10 highway advertising led display

Below are the different installation solutions for you, we can talk more if you need the special installation, do not hesitate to click right and then we can talk easily!

Highway Billboard P10 Advertising Led Screen

Control method of P10 highway advertising led display

We can help to choose the suitable and easy to use controller for you, if you can share more details of the project you want to build

Highway Billboard P10 Advertising Led Screen
