Hongwei P5 SMD2727 960x960 Rental Led Screen Die Casting Aluminum 800W/M2
Hongwei P5 SMD2727 960x960 Rental Led Screen Die Casting Aluminum 800W/M2
Hongwei P5 SMD2727 960x960 Rental Led Screen Die Casting Aluminum 800W/M2
Hongwei P5 SMD2727 960x960 Rental Led Screen Die Casting Aluminum 800W/M2
Specifications
Brand Name :
Hongwei
Model Number :
P5
Certification :
CE, ROSH
Place of Origin :
Shenzhen, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces/month
Delivery Time :
10-15 working days
Packaging Details :
Flight Case
Usage :
Outdoor
Cabinet size :
960*960mm
Tube chip color :
Full Color
Brightness :
6500cd/sqm
Warranty :
2 Years
Life span :
100000hours
Pixel :
5mm
Module size :
320*160mm
Led lamp :
SMD2727
Scan method :
8 S
Module quantity :
3 x 6 = 18pcs
Best viewing distance :
5-70m
Maximum power :
<800W/m2
Viewing angle :
140°/140°
Description

Hongwei P5 Outdoor 960x960 Die Casting Aluminum Rental Led Screen

Key Features

Main fitures:

1. With the best LED industrial waterproof and ultraviolet-proof SMD 3 in 1 technology, confirm the super wide view angle and stability;

2. Delicated image, wide horizon viewing angle at 140 degree to provide better viewing experience with optimal refresh rate (2000Hz), high grey level (14 bits) and high contrast ratio (2000:1);

3. SMD led encapsulation ensure good heat dissipation and low power consumption;

4. Excellent heat dissipation and noiselessness with ultra-quite fan.

Parameters

Products’ parameters can help you to select which one you need

Pixel 4mm 5mm
Led lamp SMD 2121 SMD 2727
Module size 256*128mm 320*160mm
320*160mm
Scan method 1/8 S 1/8 S
Brightness ≧6500cd/sqm ≧6500cd/sqm
Pixel density 62500dots/sqm 40000dots/sqm
Panel material aluminum cabinet aluminum cabinet
Panel size 512*512mm 640*640mm
960*960mm 960*960mm
Average power consumption 800w/sqm 800w/sqm
Max power consumption 380w/sqm 380w/sqm
Best view distance 4-47m 5-50m
Gray level 12-4bit
View angle H≧140° V≧140°
Refresh rate ≧1920 Hz ≧3840 Hz
Protection level IP33
Control system Linsn/Colorlight/Novastar
Frame frequency ≧50/60 Hz
Input voltage 100-120V 200-240V
Screen life 100000h

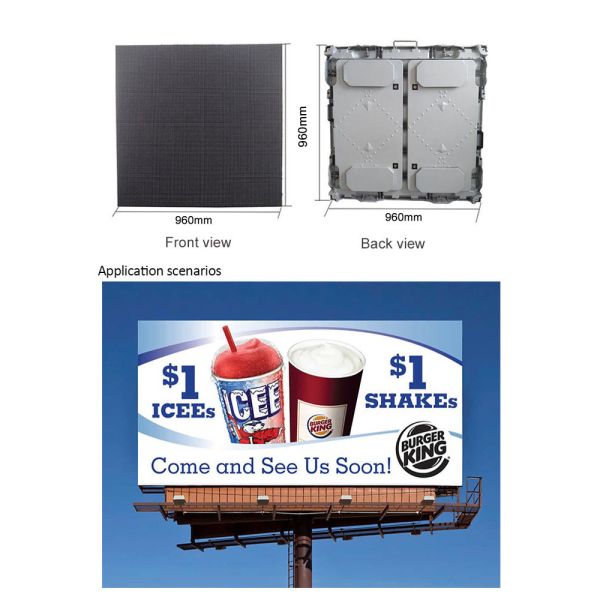

What is P5 Outdoor Die-casting Aluminum LED Screen?

Cabinet material:die casting aluminum

Cabinet color:Silver

Cabinet thickness:8cm

Hongwei P5 SMD2727 960x960 Rental Led Screen Die Casting Aluminum 800W/M2
Hongwei P5 SMD2727 960x960 Rental Led Screen Die Casting Aluminum 800W/M2
Hongwei P5 SMD2727 960x960 Rental Led Screen Die Casting Aluminum 800W/M2

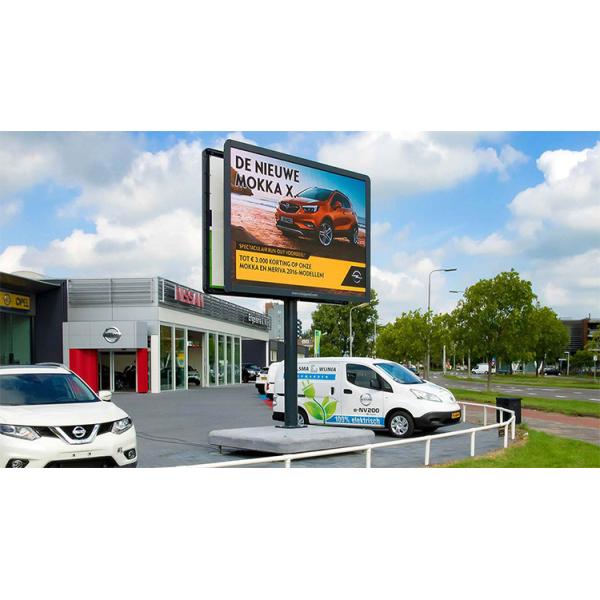

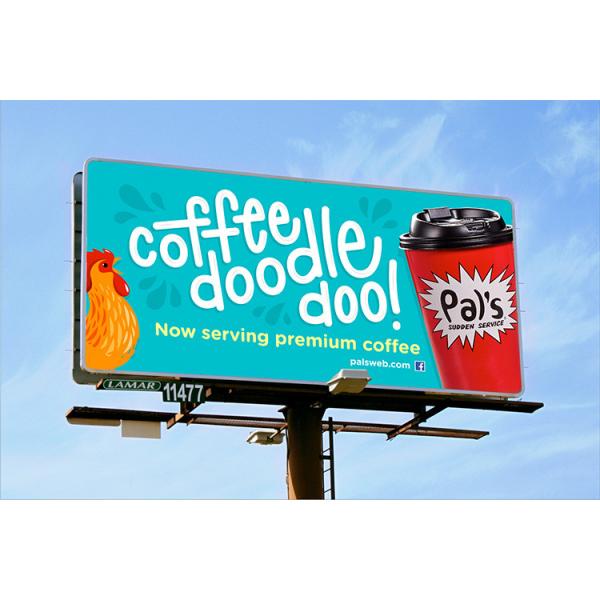

Application of P5 Outdoor Die-casting Aluminum LED Screen
P5 outdoor die casting aluminum led screen can get signal of camera, video, VCD, DVD, LD, TV and so on.
Multiform language are available,such as English, French, Germany, Spanish, Russian,etc.
Hongwei P5 SMD2727 960x960 Rental Led Screen Die Casting Aluminum 800W/M2
Hongwei P5 SMD2727 960x960 Rental Led Screen Die Casting Aluminum 800W/M2

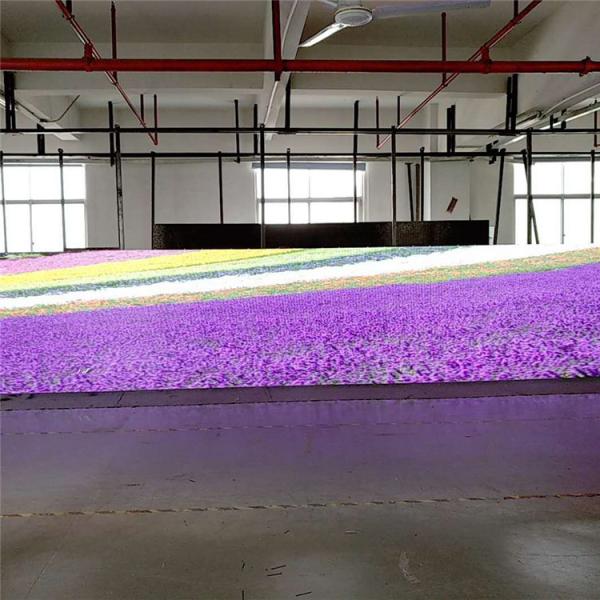

Aging test
Strict quality control systems to ensure led display with good quality:Our led products must be tested of at least 72hours before shipping, from purchase raw materials to ship.
Hongwei P5 SMD2727 960x960 Rental Led Screen Die Casting Aluminum 800W/M2

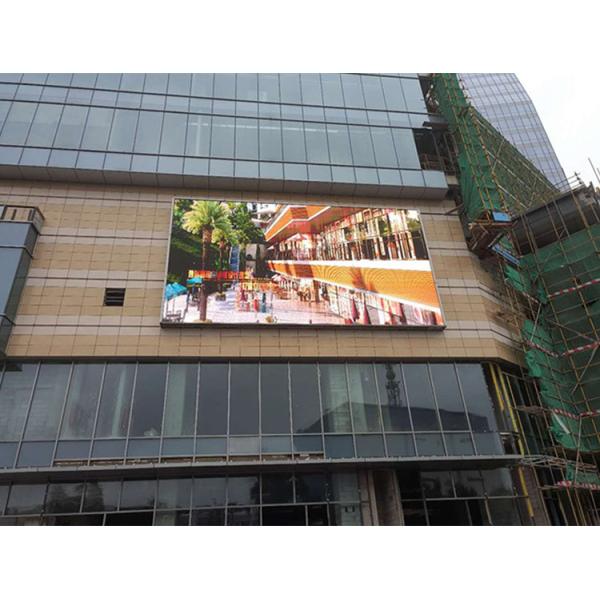

New cases of P5 Outdoor Die-casting Aluminum LED Screen
New case from the USA.
Hongwei P5 SMD2727 960x960 Rental Led Screen Die Casting Aluminum 800W/M2
Control method
Hongwei P5 SMD2727 960x960 Rental Led Screen Die Casting Aluminum 800W/M2
Installation of P5 Outdoor Die-casting Aluminum LED Screen
Easy installation
Hongwei P5 SMD2727 960x960 Rental Led Screen Die Casting Aluminum 800W/M2
