Multipurpose RGB WiFi Pool Light Switch , 350W LED Strip Dimmer Controller
Multipurpose RGB WiFi Pool Light Switch , 350W LED Strip Dimmer Controller
Multipurpose RGB WiFi Pool Light Switch , 350W LED Strip Dimmer Controller
Multipurpose RGB WiFi Pool Light Switch , 350W LED Strip Dimmer Controller
Multipurpose RGB WiFi Pool Light Switch , 350W LED Strip Dimmer Controller
Multipurpose RGB WiFi Pool Light Switch , 350W LED Strip Dimmer Controller
Specifications
Brand Name :
SHENZHEN REFINED
Model Number :
RF-CTR01
Certification :
CE,RoHs
Place of Origin :
China
Payment Terms :
T / T , L / C , PayPal , Western Union
Input Voltage :
12V AC
Output Voltage :
12V AC
Maximum Power Output at 12V Terminal :
350W
Cable distance :
MAX 100 meters
Control Way :
Touch Panell &Wifi remote controller
Description

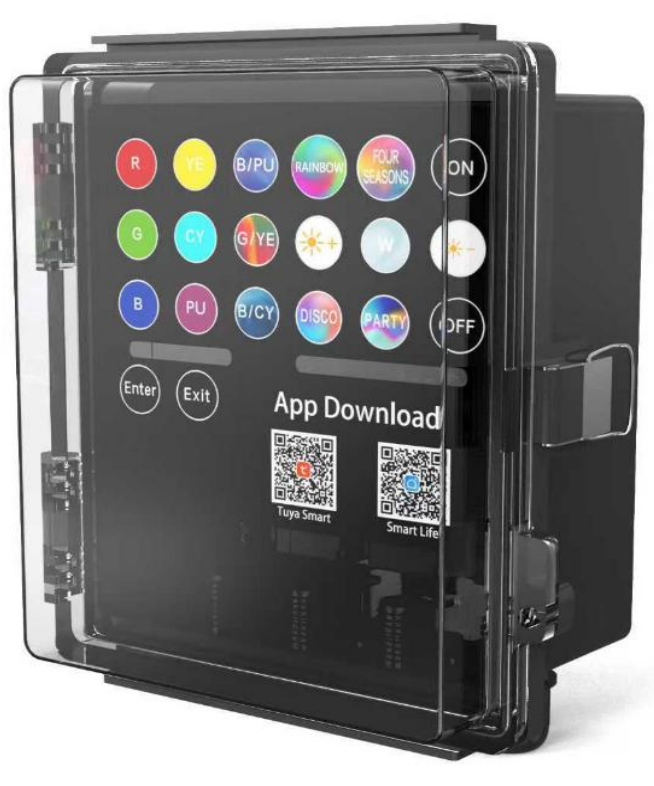

Wifi Controller for LED Pool Light with Remote Touch Panel RGB Color Changing Control Unit Switch Controller
Multipurpose RGB WiFi Pool Light Switch , 350W LED Strip Dimmer Controller
A: Touch Panel control
B: Wifi control via mobile phone
C: 18key remote controller control (need to buy separately )
Voltage:12VAC Load:<350W RGB LED lamps
Signal coverage over 60 maters.(<100m)
All our LED pool lights can work with this controller.
IMPORTANT: This manual includes essential information on the safety
measures to be implemented for installation and start-up. Therefore, the
installer, as well as the user, must read these instructions before beginning
installation and start-up. To achieve optimum performance, follow the
instructions indicated below:
2. INSTALLATION:
Prior to commencing, make sure there is no electricity passing through the
wires and cables to be connected. Mount the controller on a solid and
secure wall at a minimum distance of 5 meters from any water source or
pipes. Open the controller cover, connect the 12V AC input voltage into the
terminals clearly marked as 12V AC INPUT. Connect the lamps parallel to
the terminals clearly marked as LAMPS 12VAC. It is essential to make sure
the connections are as tight as possible in order to avoid sparking.
Installation diagram:

Multipurpose RGB WiFi Pool Light Switch , 350W LED Strip Dimmer Controller

Multipurpose RGB WiFi Pool Light Switch , 350W LED Strip Dimmer Controller

Multipurpose RGB WiFi Pool Light Switch , 350W LED Strip Dimmer Controller

Multipurpose RGB WiFi Pool Light Switch , 350W LED Strip Dimmer Controller

Multipurpose RGB WiFi Pool Light Switch , 350W LED Strip Dimmer ControllerMultipurpose RGB WiFi Pool Light Switch , 350W LED Strip Dimmer Controller

6W 7W 8W 10W 15W 18W 24W 35W 42W 12V 24V AC DC remote control switch control phone wifi control 2 wires 4 wires external control tuya control music RGB RGBW cool white cold white warm white Natural White blue green purple yellow high brightness dimmable SMD2835 cree leds fully resin filled ecopoxy glue plastic 316L stainless steel 304 China supplier Chinese pool light factory made in china led pool light pool lighting pool lights underwater lamp pool design pool builders underwater light water light shenzhen refined tech pool light swimming pool‬ swimming pools‬ pool service‬ pool dealer‬ pool services‬ piscina piscine led underwater light iluminación de la piscina illuminazione della piscina éclairage de piscine Poolbeleuchtung iluminação da piscina
