Specifications
Brand Name :
PILEDS
Model Number :
H803TV
Certification :
CE ROSH BIS
Place of Origin :
China
MOQ :
1
Price :
USD280
Payment Terms :
T/T, L/C
Supply Ability :
300+PCS+DAY
Delivery Time :
5
Packaging Details :
carton
Control Mode :
Master-Slave
Working Temperature :
-20℃~60℃
Protection Level :
IP20
Weight :
0.8KG
Control Distance :
≤100m
Input Voltage :
AC85-265V
Warranty :
2 Years
Output Channels :
4 Ports
Description

H803TV LED DVI Controller H803TV H802RA H801RC DMX SPI Digital Led Strip DVI Online Master Madrixs Controller

Product Description
1. Features
(1). H803TV is an online master controller that transmits data over DVI/HDMI interface.
(2). Four network interfaces drive maximum 400000 pixels.
(3). It supports dual-monitor mode, multi-monitor extension mode and duplication mode.
(4). Support the following resolutions: 1024x768, 1280x720, 1280x960, 1280x1024, 1360x765, 1360x1020, 1600x900, 1600x1200.
(5). Use the autorun USB to transmit and control data, which is applied to both 32-bit and 64-bit operating systems.
(6)Auxiliary slave controller is H802RA and H801RC. Auxiliary software is “LED studio software”
(7)Four ports are separated and configured individually, which means four ports can drive different chips. Four ports control 1020 slave controllers in total, each ports control 255 slave controllers.
(8) Data is transmitted based on standard Ethernet protocol and the transmission distance is up to 100 meters.

2. Supported driver chips
LPD6803, LPD8806, LPD1882, LPD1889, LPD6812, LPD1883, LPD1886, DMX512, HDMX, APA102, MY9221, DZ2809, SM16716, SM16711, UCS6909,
UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, INK1003, TM1812, TM1809, TM1804, TM1803, TM1913, TM1914,
TM1926, TM1829, TM190, TM1814, BS0901, BS0902, BS0825, BS0815, LY6620, BS0825, LD1510, LD1512, LD1530, LD1532, TLS3001, TLS3002,
DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, 74HC595,
6B595, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, HEF4094, A8012, etc.

Note: H803TV supports more than the chips listed above(some chips have the same sequence diagram, such as UCS2903 has the same sequence diagram with UCS1903, so H803TV supports them all).
Package Include
1 pcs controller, 1 pcs USB cable, 1 pcs DVI cable, 1 pcs adaptor
3. Controller and Accessories display

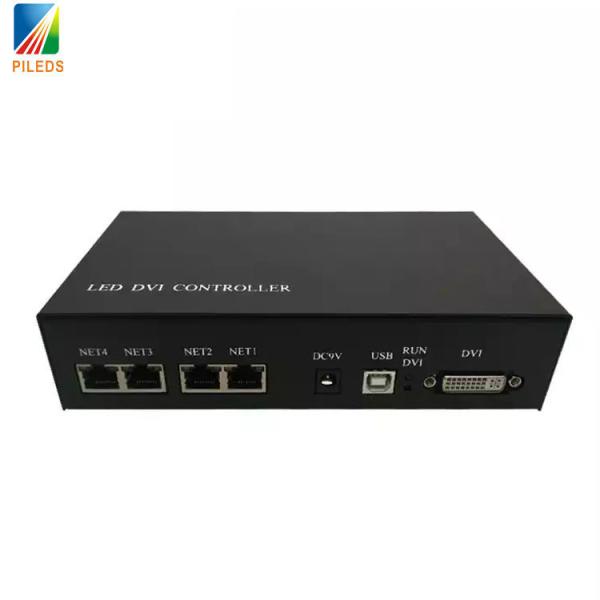

H803TV Online MASTER Controller
Four ports of H803TV can drive different chips, each port can be configured individually.
You can also connect multiple H803TVs to DVI distributer, each H803TV just control part of the screen
H803TV LED DVI Controller SPI Digital Master Madrixs for Led StripH803TV LED DVI Controller SPI Digital Master Madrixs for Led StripH803TV LED DVI Controller SPI Digital Master Madrixs for Led StripH803TV LED DVI Controller SPI Digital Master Madrixs for Led StripH803TV LED DVI Controller SPI Digital Master Madrixs for Led Strip
