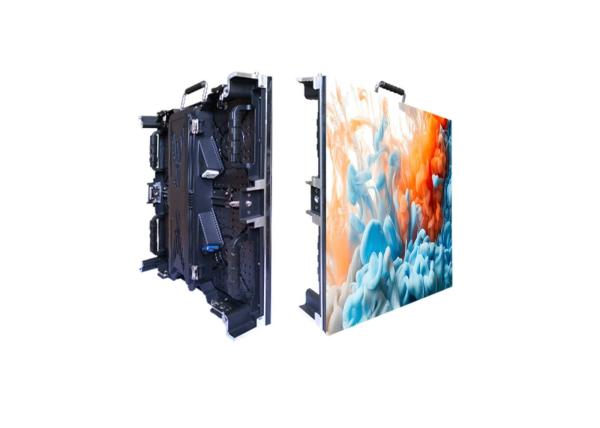

RGB P3.91 Rental LED Display Video Wall SMD Die Casting Aluminum Cabinet
RGB P3.91 Rental LED Display Video Wall SMD Die Casting Aluminum Cabinet
Specifications
Brand Name :
Weiye
Model Number :
Weiye D6
Certification :
CCC FC CE FC CB ROHS
Place of Origin :
Guangdong, China
MOQ :
1 pcs / 1 sqm
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5,000 square meters per month
Delivery Time :
7-12 working days after received your payment
Packaging Details :
Carton，Honeycomb box，Wooden box，Flight Case
product name :
LED Video Wall Full Color Die Casting Aluminum Cabinet SMD RGB P3.91 Indoor LED Display Rental
Pixel pitch （mm） :
P3.91
Cabinet size :
500x500mm
Material :
Die-cast aluminum
Color :
Full Color
Description

LED Video Wall Full Color Die Casting Aluminum Cabinet SMD RGB P3.91 Indoor LED Display Rental

Function and Technology Character Introduction:

1,High-quality bottom shell kits and masks, using anti-deformation module bottom shell kits, high hardness and strength, to ensure that the screen body is flat and not deformed

2,Waterproof, moisture-proof, UV-proof, Low attenuation, high reliability

3,The color uniformity of the display screen is super high, and the screen picture is more delicate.

4,Energy-saving, environmentally friendly, cost-effective, the LED display luminescent material itself is an energy-saving product, equipped with a dedicated constant current drive, energy-saving IC and high conversion rate drive power, and the brightness can be automatically adjusted.

Products Applications:

widely used in large stadiums, train waiting rooms, live TV, exhibition venues, performing arts centers, entertainment venues, large-scale cultural evenings, concerts, etc.


SPECIFICATIONS Parameters:

Pixel pitch (mm) P3.91
Module size(mm) 250X250mm
Pixel density (point /㎡) 65536
Module resolution (WxH) 64X64
Pixel structure SMD2020
scanning method 1/16
Refresh rate (Hz) ≥3840Hz
White balance brightness (nits) ≥1200
Color temperature (K) 3200-9300Adjustable
Gray scale 14bit
Frame change frequency 60Hz
Viewing angle (horizontal/vertical°) 140/140
Protection level (front/back) IP31/IP43
Power consumption (peak/average W/㎡) 600/200


weiye D6 series led strip display screen advantage:

1,The circuit board adopts wave soldering process and has a green oil oxygen barrier to prevent moisture and oxidation of the circuit and increase the service life.

2,Nice appearance and simple structures.

3,Humanized operating interface with breakdown indicator lights, easy to maintain.

4,Can be normally used under the temperature between -35℃ and +65℃ .

5,Use advanced processing technology, guarantee for high-quality and long lifetime products

RGB P3.91 Rental LED Display Video Wall SMD Die Casting Aluminum Cabinet
