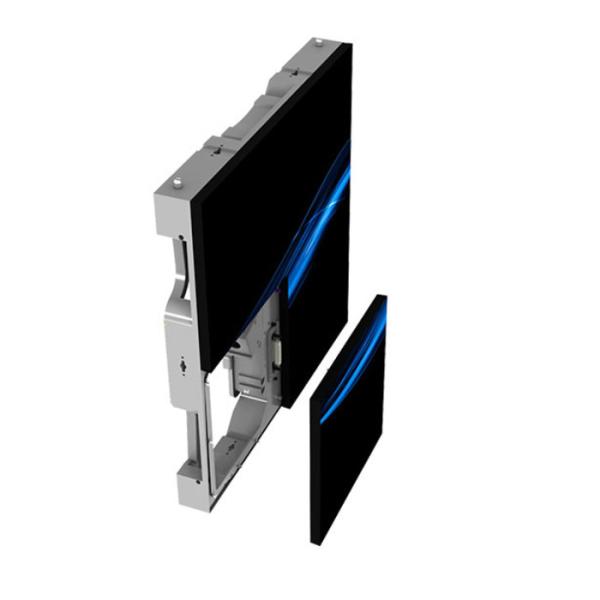

P5 P8 Digital Advertising Signs Outdoor HD Front Service Led Screen 1920hz
P5 P8 Digital Advertising Signs Outdoor HD Front Service Led Screen 1920hz
P5 P8 Digital Advertising Signs Outdoor HD Front Service Led Screen 1920hz
P5 P8 Digital Advertising Signs Outdoor HD Front Service Led Screen 1920hz
P5 P8 Digital Advertising Signs Outdoor HD Front Service Led Screen 1920hz
P5 P8 Digital Advertising Signs Outdoor HD Front Service Led Screen 1920hz
Specifications
Brand Name :
Weiye
Model Number :
Weiye Moudle
Certification :
CCC FC CE FC CB ROHS
Place of Origin :
Guangdong, China
MOQ :
1 pcs / 1 sqm
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5,000 square meters per month
Delivery Time :
7-12 working days after received your payment
Packaging Details :
Carton，Honeycomb box，Wooden box，Flight Case
product name :
led screen front service video hd outdoor tv energy saving p5 p8 display led advertising digital signage and displays
Pixel pitch （mm） :
P8
Usage: :
outdoor
LED chip: :
nation star
Warranty: :
2 Years
Description

led screen front service video hd outdoor tv energy saving p5 p8 display led advertising digital signage and displays

Function and Technology Character Introduction:

1. Energy-saving, saving money.

2. Low heat, low working temperature.

3. Long lifespan.

4. Low attenuation.

5. High protection degree, IP65. Protect it from dust and water.

6. Color Temperature is constant and the colorless block is used for a long time.

7. High-performance thermal silica gel makes the display waterproof, moisture-proof, dust-proof and fast heat dissipation

8. High-performance thermal silica gel makes the display waterproof, moisture-proof, dust-proof and fast heat dissipation

Products Applications:

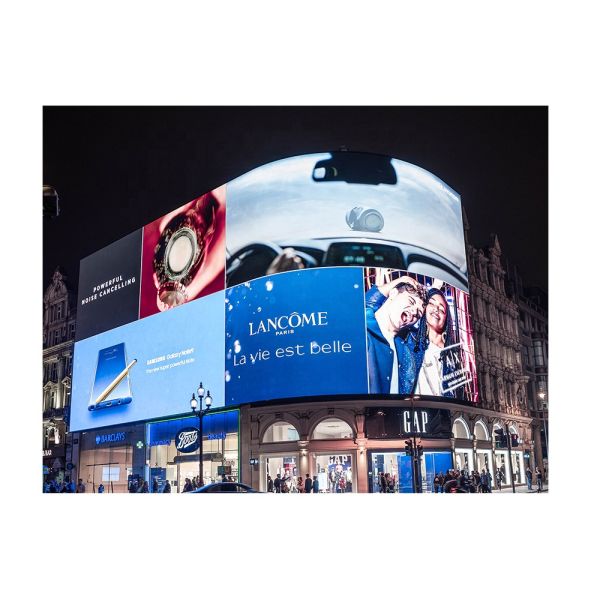

Used in large outdoor venues such as city squares, high-end hotel exterior walls, outdoor advertising displays, film and television centers, and sports centers.

SPECIFICATIONS Parameters:

model P8-3535-5S-320x160
LED lamp bead model NationstarNH-Z3535RGBA-SG
Pixel pitch (mm) 8
Pixel density (Dots/㎡) 15625
Pixel color configuration 1R1G1B
Pixel resolution 40x20
scanning method 1/5 scan
Brightness (cd/㎡) ≥6000
Gray level (bit) 14bit
Refresh rate (Hz) ≥1920
Mask structure With face mask
Horizontal viewing angle (Deg) 140(±10)
Vertical viewing angle (Deg) 120(±10)
Driver chip ICND2049AP
Row decoding method ICND2019AP
Module size (L*W) 320x160mm
Module weight (g) ≤495
Flatness of module mask ≤0.2mm
Module maximum current (Ampere) R:≤2.7A GB:≤4.5A
Input voltage (DC) R:2.8V/GB:3.8V
Maximum power consumption of the module (W) ≤25W
Maximum power consumption (W/m²) ≤600
Average power consumption (w/㎡) ≤150-180W
Module installation structure Install from the back
Mean time between failures ≥10000 hours
Service life ≥100000 hours
Use environment outdoor
Working temperature range (℃) -10℃-60℃
Working humidity range (RH) 30%-85%
Storage temperature range (℃) 0℃-40℃
Storage humidity range (RH) 35%-60%
waterproof level IP65

FAQ

1) Q: How is the after sales service?

A: We have a professional team which is in all around the world, also a service hot-line dealing with your complains and feedback. We also offer 24-hour online service to help you solving problems

2) Q: What is your current lead time?​

A: usually no more than 20 days; and some products are in stock for quick delivery

3) Q: What’s your warranty of your products ?

A: usually 2 years, counted from the date goods reaching clients.

4) Q: Why so many clients choose WeiyeLED?​

A: Our led display has applied many countries in the world. Many countries have our projects.
