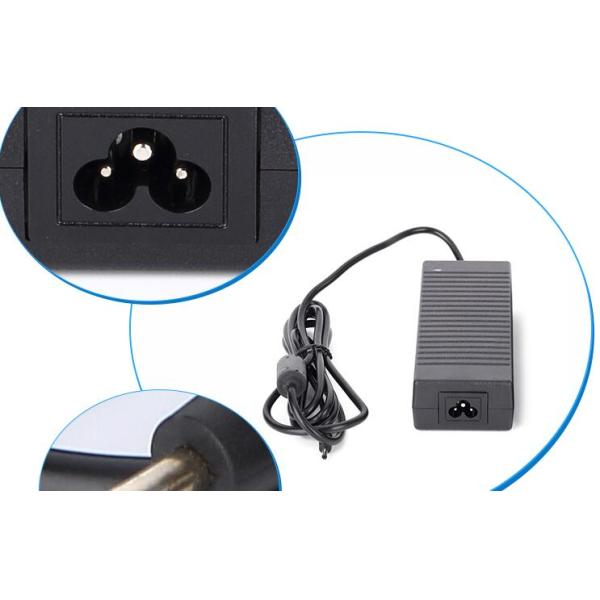

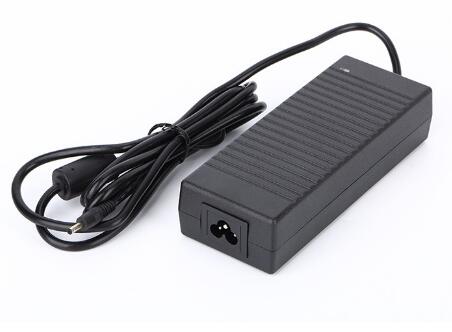

12v 8a 96 Watt Desktop Power Adapter AC DC Power Adapter With 5.5*25mm DC Connector
12v 8a 96 Watt Desktop Power Adapter AC DC Power Adapter With 5.5*25mm DC Connector
12v 8a 96 Watt Desktop Power Adapter AC DC Power Adapter With 5.5*25mm DC Connector
12v 8a 96 Watt Desktop Power Adapter AC DC Power Adapter With 5.5*25mm DC Connector
12v 8a 96 Watt Desktop Power Adapter AC DC Power Adapter With 5.5*25mm DC Connector
12v 8a 96 Watt Desktop Power Adapter AC DC Power Adapter With 5.5*25mm DC Connector
Specifications
Brand Name :
OEM
Model Number :
AE-12008000
Certification :
UL CB SAA CE FCC
Place of Origin :
China shenzhen
MOQ :
1pcs
Price :
1usd/pcs
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
100000pcs/month
Delivery Time :
3-5days
Packaging Details :
Neutral white box packaging
Output :
12Volt 8Amp 96Watt
Input :
95~240V Ac input
Ripple noise :
100mvp
Material :
ABS plastic
Dc connector :
5.5*2.5mm 5.5*2.1mm
Warranty :
3 years
Description

12v 8a 96Watt desktop power adapter for led strips, CCTV camera,with 5.5*25mm dc connector

Features:

Universal AC input/Full range(up to 264Vac)

Protection: Short circuit/Overload/Over temperature

High efficiency, long life and hign reliaility

100% full load burn-in test

One year warranty

Class 1 design

96W power adapter
Part. No. AE-12008000

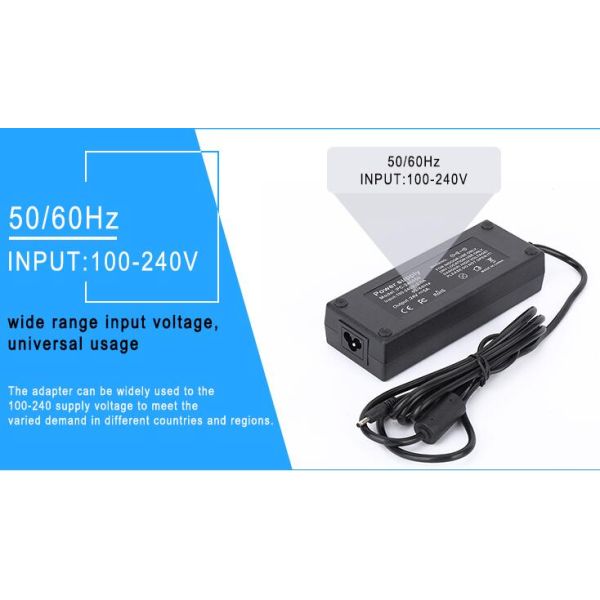

AC Input 100~240V AC 50/60Hz Max:90~264V AC 47/63Hz
DC Voltage 12V
Rate Current 8A
Current Range 0~8A
Rate Power 96W
Material 100% PC
Certification Approved CE ROHS FCC C-TICK certification
Rippe & Noise <120MVP-P
Voltage Tolerance ±5%
Line Regulation ±1%
Load Regulation ±5%
Efficiency >85%
Short Circuit Protection Shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed.
Over Current Protection 130%~150%
Over Voltage Protection 115%~135%
Operating Temperature -10℃~50℃(±10℃)
Relative Humidity 20%~90% RH
Storage Temperature -40℃~80℃(±10℃)
DC Connector 5.5*2.5mm or 5.5*2.1mm (Customized available)
DC Cable 1.2M, 1.5M, 1.8M, 2M, 3M, 5M(Customized available)
AC Cable USA/UK/EU/AU/India Plugs(Customized available)

4, output short circuit protection :

Output short circuit, the power supply into the protection of the state, after the failure to
lift the power to automatically resume normal work .

5, output overload protection :

When the output load current is more than 1.5 times, the product enters the the state of
the protection, the product is not damaged, when the fault is excluded, the power
automatically resume normal work

6, output over temperature protection :

When power supply working environment temperature exceeds 85 + 5 DEG C, OTP
power protection no output, below the point of internal power supply temperature is reset
to the protection and automatic restoration of power work

7, reliability requirements :

When the rated input voltage, full load, ambient temperature is 25 degrees Celsius, the
average power supply no failure time at least 50000 hours

8, safety rules :

(1) dielectric withstand voltage (high pressure) : I/P-O/P:3.75KVAC

(2) leakage current : 0.25mAmax at 240Vac/50Hz

(3) insulation resistance : I/P-O/P:≥50M O hm s/500V D C /25℃/70% R H

(4) safety standards : EN61347-1 Meet EN61347-1

(5) cooling mode : Natural cooling
