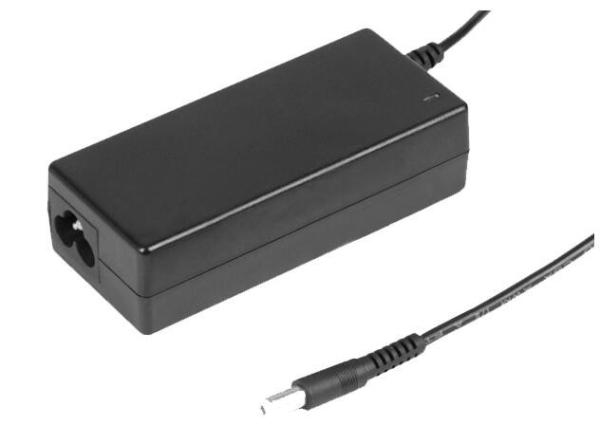

100Vac 240Vac desktop power Adapter 24v 4a 96w AC DC power supply for LED lights

Specification:

Description:

1. input voltage range of AC90-264V. wide voltage input, comply with the global standard.
2. input voltage frequency: 47-63Hz
3. output voltage: according to customer requirements
4. output voltage adjustable rate: 1%
5. rated output current can be customized
6. current output range 0-5A

Protections:

1) over voltage protection: 120%min
2) over current protection: 120%min
3) over protection
4) Short-circuit protection: automatic recovery ­
5) Load regulation: ±5%

Environmental requirement:

1)operating temperature: 0-40
2)storage temperature: -20-85
3)opera ting relative humidity:595%RH
4) Withstanding voltage: AC 3,000V (minimum), 5mA (maximum) ­
5Insulation resistance: DC 500V 100MΩ (minimum)

­
Advantages:

1. AC input power suitable for the world
2. Soft-start current can reduce the AC input impact efficiency
3. With short-circuit and overload protection
4. Compact size ,light weight
5. 100%full-load burning test
6. Installed with EMI filter ,minimum wave

Applications:

100-240Vac 50-60Hz AC DC Adapter 12V 3.5A KC
can be applied in security equipments, portable equipments, telecommunication equipments, consumer equipments, and other equipments.

• Security equipment: monitoring camera, hard disk video recorder, security system, control equipment, monitoring equipment, etc.
• Portable equipment: portable DVD, radio, mobile hard disk box, portable tools, charger, lithium ion battery, game machine, language repeater, walkman, digital products, tablet PC, etc.
• Telecommunication equipment: router, microprocessor system, ADSL equipment, telephone composite aircraft, hub, telecommunications terminal equipment, cell phone, etc.
• Consumer equipment: LCD TV, HD player, DVD players, digital photo frame, electronic refrigerator, acoustics, LED lamps and lanterns, small power electric appliances, electric tools, audio-video products, mini TV, decorative lighting, massager, LED lighting, electric bicycle battery charger, small size LCD TV and set top box, air cleaner, LCD, computer monitor, etc.
• Other equipment: industrial automation control, military equipment, scientific research equipment, industrial control equipment, electric power equipment, medical equipment, semiconductor refrigeration and heating, computer chassis, instrument power supply, printer, testing equipment, and almost any other portable type equipment.

Competitive Advantage:

1 Personal digital charger : smartphone/tablet usb charger, car charger,interchangeable charger.
2 Security power adapter: CCTV power adaptor 12v , access control systems power adapter.
3 Lighting power supply: LED light power supply, LED strips power supply.
5 Telecommunications power converter: router/hub CE KC SAA PSE adapter 12v 1a ,set top box power converter.
4 A&V power supply: Speaker power supply, DVD plyer power supply
