Specifications
Brand Name :
OEM/Anenerge
Model Number :
AE-12003000
Certification :
CE Rohs FCC UL TUV GS CB SAA KC
Place of Origin :
Shenzhen
MOQ :
1pcs
Price :
1-3usd/pcs
Payment Terms :
Western Union,Paypal,T/T
Supply Ability :
1000000pcs/month
Delivery Time :
3-5days
Packaging Details :
Neutral white box packaging
Input :
100~240v Ac input
Output :
12V 3a 5a 36a 60W
Material :
ABS+PC material
Ripple and noise :
120mvp-p
Color :
Black or white
Warranty :
2 years
Description

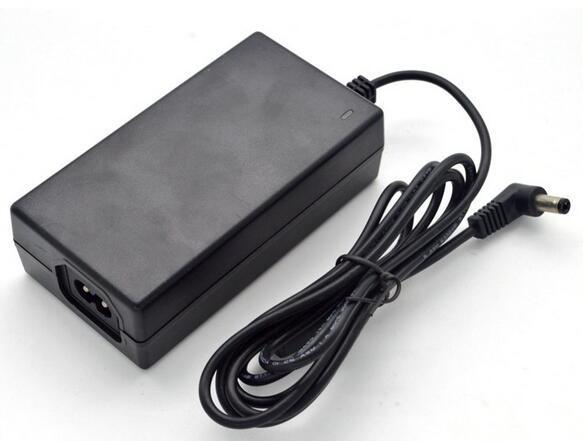

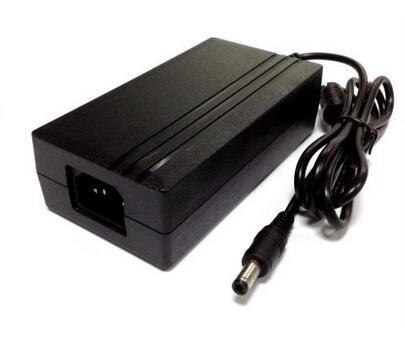

12V 3a 5a 36a 60W power adapter PSU LED power supply for CCTVs 100~240v input with UL CE marked

Usage

* LED strip ,LED light ,LED table lamp.

* Router,amplifier,CCTV camera,

* Home appliances ,setup box ,speaker,

* Audio & Video equipments,

* Wireless communication electronics .

* Medical equipments

* Electrical toy
* LAPTOP / Notebook
* LCD
DC Output Voltage 12V± 5%
DC Output Current 5000mA
DC Output Power 60w
Working Efficency 83%
Adapter Size 103*45*42mm (L/W/H)
Efficiency level 5
Warranty 2 years
Certificates approved TUV CB CE GS ROHS UL/CUL FCC IECS SAA C-tick
Input Rated Voltage 86Vac~264Vac
Input Frequency Range 47Hz~63Hz
Safety protection output voltage protection (120%-150% rated output current)
output current protection (150%-180% rated output current)
short current protection
Ripple and Noise less than 60Mv at full road with 20MHz bandwidth
DC connector 5.5*2.1*11mm (optional)
DC cable 1.5m 2464UL 20AWG cable (optional)
Operating Temperature 0°C - +55°C
Storage Temperature -20°C - +85°C
Safety Standard EN60950 EN60601 ESD (EN61000 3-3)
CAS (60950 ITE/TE,EN60601 Medical) FCC Part 15 subpart B Class 2
AN/NZS CISPR 22:2006
Turn On Delay Time less than 3S (AC:110V and full load)
Dielectric Voltage A IEC320 three pin input---output(FG)3000Vac one minute
Input Current less than 0.5A
Input Inrush Current less than 50A
Leakage Current less than 5mA
Standby power less than 0.3w
Net Weight 300g/pcs
Gross Weight 14.5kg/carton
Carton Box Size 39*31*29cm
