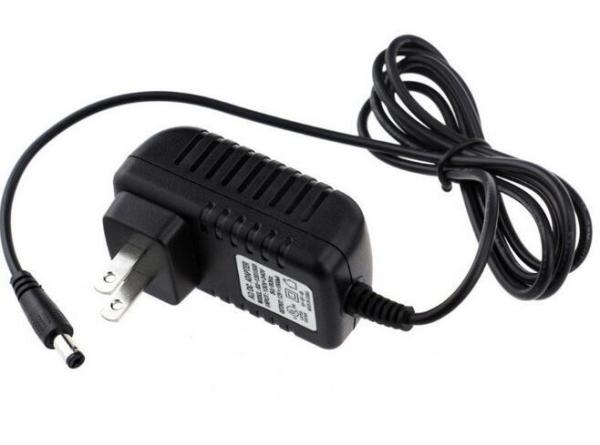

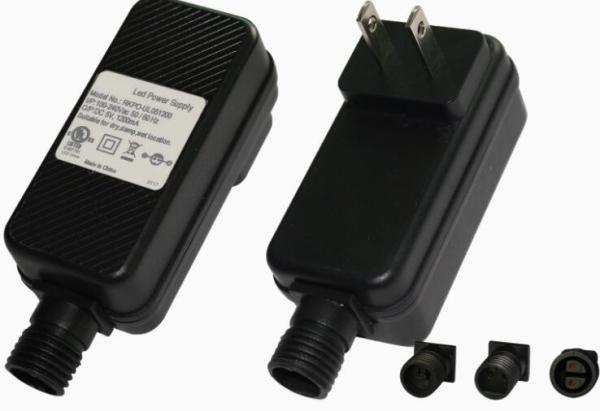

6W 12W Wall Mount LED Power Adapter Charger IP44 With Plug In Connection , AC 100-240V
6W 12W Wall Mount LED Power Adapter Charger IP44 With Plug In Connection , AC 100-240V
6W 12W Wall Mount LED Power Adapter Charger IP44 With Plug In Connection , AC 100-240V
6W 12W Wall Mount LED Power Adapter Charger IP44 With Plug In Connection , AC 100-240V
Specifications
Brand Name :
OEM/Anenerge
Model Number :
AE-5W6W12W
Certification :
CE Rohs FCC UL TUV GS CB SAA KC
Place of Origin :
Shenzhen
MOQ :
1pcs
Price :
1-3usd/pcs
Payment Terms :
Western Union,Paypal,T/T
Supply Ability :
1000000pcs/month
Delivery Time :
3-5days
Packaging Details :
Neutral white box packaging
Available :
LED lights CCTV camera
Plug :
UK US AU EU
Warranty :
3 years
Waterproof :
IP44
Material :
ABS plastic
Certificates :
UL CUL TUV GS CE SAA PSE
Description

Waterproof IP44 LED power adapter,EU UK AU US 12v 9v 5v 5W 6W 12W waterproof power supply​

Output Type:DC

Connection:Plug In

Color:Black

Material:ABS+PC

Ripple Noise:≤200mv

Warranty:2years

Output power:12w

Output voltage:12V±5%

Input voltage:100-240V ac

Usage:Digital Products

Input Frequency:50Hz/60Hz

Working Tempreture: 0℃-40℃

Technical Specification Input Voltage AC 100-240V
Input Frequency 50Hz/60Hz
Input Current ≤0.4A(AC Input Voltage 100V)
Dash Current ≤35A(AC Input Voltage 240V)
Power Factor ≥0.5(AC Input Voltage 240V, Internal Resistance<0.1Ω)
Efficiency ≥82.96% at rated voltage
Output Voltage 12V±5%
Output Rated Current 1A
Rated Power 12W
Ripple Noise ≤200mV
Start Delay Time ≤3S(under the Iput-voltage of AC110V)
Working Temperature 0℃ to 40℃
Storage Temperature -20℃ to 70℃
Humidity 5%-95%(under the condition of non-concentrated)
Atmospheric Pressure 70 — 106Mpa
Hi-pot Test AC 3000V(Min), 3S, leakage Current≤5mA
Insulation Resistance ≥10MΩ (Test condition: standard atmospheric pressure, humidity 90%, DC500V)
Certificate CE, FCC, ROHS, SAA, CB, GS, KC
Warranty 2 years
Feature IC Program Design with low power consumption
100% aging test
MTBF50,000 hours under the temperature of 25℃ with maximum load(according to the standard of MIL-HDBK-217)
6W 12W Wall Mount LED Power Adapter Charger IP44 With Plug In Connection , AC 100-240V6W 12W Wall Mount LED Power Adapter Charger IP44 With Plug In Connection , AC 100-240V
