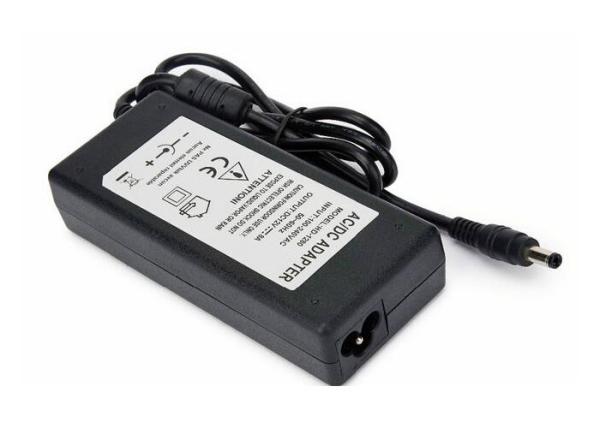

120 Watt Wall Mount Led Light Power Adapter AC110V-220V For Security System
120 Watt Wall Mount Led Light Power Adapter AC110V-220V For Security System
120 Watt Wall Mount Led Light Power Adapter AC110V-220V For Security System
120 Watt Wall Mount Led Light Power Adapter AC110V-220V For Security System
Specifications
Brand Name :
OEM/Anenerge
Model Number :
AE-12010000
Certification :
CE Rohs FCC UL TUV GS CB SAA KC
Place of Origin :
Shenzhen
MOQ :
1pcs
Price :
1-3usd/pcs
Payment Terms :
Western Union,Paypal,T/T
Supply Ability :
1000000pcs/month
Delivery Time :
3-5days
Packaging Details :
Neutral white box packaging
Ripple and noise :
100mvp-p
Used for :
LED strips CCTVs
Output :
12V 24V 5A 10A 120W
Input :
100~240V Ac input
Certificates :
CE Rohs FCC UL ETL SAA
warranty :
2 years
Material :
ABS plastic LED power adapter
Packaging :
Neutral white box
Description

LED power adapter 12V 10A 120Watt with UL CE marked for LED strips CCTV camera

100% more than 2 Hour Burn-In Test
100% 4 times electrical performance test
100% dropping test from 6 surface
100% Solder ball vibration test
100% Hi-Pot Test
0.3% RMA F.O.C

Product Electric Parameters
Input specification Input voltage AC110V-220V
Input frequency 50-60Hz
Input surge 20A@120VAC 40A@230VAC
Output specification Output voltage can be adjusted ±10%
Start-up time <1S(input230V Io=100%)
keep time >20mS (input230V,Io=100%)
Voltage regulation (Full load) <0.5%
Protection function Overload protection 105% - 150% rated power, automatic recovery
Over-voltage protection 105% - 150% of the rated voltage
Insulation intensity Input---output 1500VAC/1min
Input---ground 1500VAC/1min
Input---ground 500VAC/1min
Safety standards According with GB4943, UL60950-1,EN60950-1 standards.
E M C standards According with GB9254, EN55022 class A EN61347-2-13:2008 standards
Environmental working temperature - 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
Storage temperature - 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)
height above sea level <2000M
Cooling method Cooling method Natural cooling air convection
Product Type Table
Product model output specification ripple, noise efficiency
A-24-12CE 24V 5A 100mV 85%

120 Watt Wall Mount Led Light Power Adapter AC110V-220V For Security System120 Watt Wall Mount Led Light Power Adapter AC110V-220V For Security System
