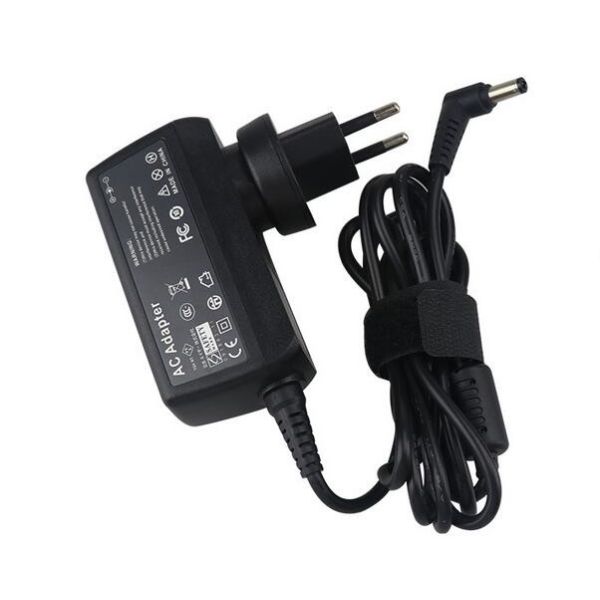

Eu Plug Universal Ac Dc Power Adapter For Cctv Camera / Wall Mount Power Supply 90~220v Input
Eu Plug Universal Ac Dc Power Adapter For Cctv Camera / Wall Mount Power Supply 90~220v Input
Eu Plug Universal Ac Dc Power Adapter For Cctv Camera / Wall Mount Power Supply 90~220v Input
Eu Plug Universal Ac Dc Power Adapter For Cctv Camera / Wall Mount Power Supply 90~220v Input
Eu Plug Universal Ac Dc Power Adapter For Cctv Camera / Wall Mount Power Supply 90~220v Input
Eu Plug Universal Ac Dc Power Adapter For Cctv Camera / Wall Mount Power Supply 90~220v Input
Specifications
Brand Name :
OEM/Anenerge
Model Number :
AE-900100
Certification :
CE Rohs FCC UL TUV GS CB SAA KC
Place of Origin :
Shenzhen
MOQ :
1pcs
Price :
1-3usd/pcs
Payment Terms :
Western Union,Paypal,T/T
Supply Ability :
1000000pcs/month
Delivery Time :
3-5days
Packaging Details :
Neutral white box packaging
Material :
ABS plastic
output :
9V 1A
plugs :
EU UK AU US
Available :
CCTV camera LED strips Pinters toys
input :
90~220v AC input
Warranty :
2 years
Description

Eu Plug Universal Ac Dc Power Adapter For Cctv Camera / Wall Mount Power Supply 90~220v Input

Place of Origin: Guangdong, China (Mainland)
Brand Name: Anenerge
Model Number: AE-090109
Output Power: 1 - 50W
Output Type: Single
Input Voltage: 90V-240V
Output Voltage: 9v
Output Frequency: 47-63HZ
Output Current: 1A
Dimension: 75*28*45MM(L'W'H')
Weight: 0.075Kg
Color: Black
Shell material: Plastick
Certificate: CE,RoHS
Safety compliance: EMC & LVD UL
Connector: 5.5*2.1MM
DC cable: 1.2M
Type: power adaptor

Features:

Output power:9V DC MAX
Protections: Short circuit/Over load/Over voltage
100% full loading burn-in test
2 years warranty

Oupt power range 9V 1A
The adapter size 75*28*45MM(L'W'H')
The adapter weight 0.075g/pcs
Input Rated Voltage 86Vac~264Vac
Input Frequency Range 47Hz~63Hz
Input Current less than 0.5A
Input Inrush Current less than 50A
Efficiency 80%(MIN)at Rated Voltage
DC Output Voltage 9V± 5%
DC Output Current 1A
DC Output Power 9W
Leakage Current less than 1mA
Standby power less than 0.5w
DC connector 5.5*2.1*11mm (optional)
DC cable 1.2m cable (optional)
Ripple and Noise less than 120Mv at full road with 20MHz bandwidth
Turn On Delay Time less than 3S (AC:110V and full load)
Certificates CE GS UL/CUL FCC ROHS
Dielectric Voltage A IEC320 three pin input---output(FG)3000Vac one minute
Safety protection output voltage protection (150%-180% rated output current)
output current protection (150%-180% rated output current)
short current protection
Operating Temperature 0°C - +55°C
Storage Temperature -20°C - +85°C
Certificates CE GS UL/CUL FCC ROHS

Eu Plug Universal Ac Dc Power Adapter For Cctv Camera / Wall Mount Power Supply 90~220v InputEu Plug Universal Ac Dc Power Adapter For Cctv Camera / Wall Mount Power Supply 90~220v InputEu Plug Universal Ac Dc Power Adapter For Cctv Camera / Wall Mount Power Supply 90~220v Input
