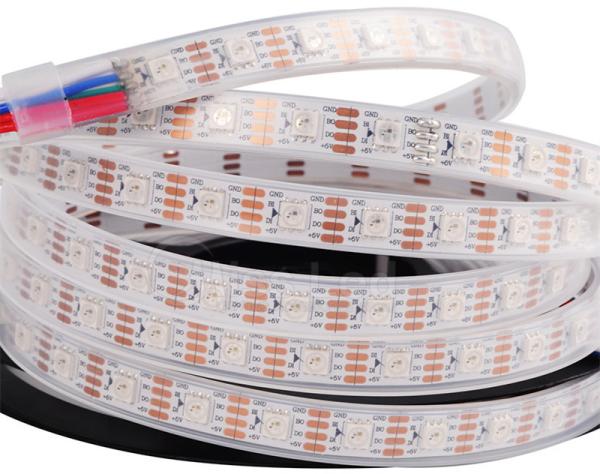

16.4FT 5M Full Color WS2813 Magic RGB LED strip 60 pixel addressable WS2813 LED strip

Specifications:

LED light source: WS2813 LEDs

same protocol as WS2811S but with Dual-signal wires,so can be controlled by the same WS2811/ws2812 controllers.

Pay attention:

30,60 means :30leds/m, 60leds/m

IP30: Non- waterproof

IP65: Waterproof in Silicon Coating

IP68: Waterproof in SiliconTube

Parameter:

Input voltage: DC5v

Pixels:30/60/meter

Grey scale:256

Bits/color:8-bits/color

FPC color: BLACK/White

Protection rate:IP20/ IP65 /IP67

Cuttable:every LED is cuttable

Colors:Full color RGB, dream color changing

Source life:50,000 hours

IC:(1 IC drives 1 led chip)

IC Type:improved version ws2813 IC(built inside the 5050 smd rgb led)

LED: each LED is separately controlled

LED resource: WS2813 led(5050 SMD RGB LED with built-in improved version of ws2811 ic)

Connector:4PIN connector terminal pair
(Red: 5V power , green: Date line, Blue: standby date line,Black: GND)

Recommand controllers:T-1000s,T-8000A;T-100K;T-200K;T-300K

Main feature:

one pixel damaged will not affect the other LEDs' working.

Dual signal wires version, signal can jump to transfer.

The power protection,if +5V and GND reverse polarity,the LED will not be burned.

The original electronic devices integrated,it does not cause virtual welding in the installation process.

Attention:

1. All the electronic components are integrated in a 5050 lamp beads, it does not require any other peripheral auxiliary electronic components to form a complete external control pixels. While reducing the product at the time of installation inverted Weld, caused by poor.
2. serial cascade interface, dual-line signal transmission, to achieve the functions of HTTP, which under a single pixel without causing damage to its lower pixel normal lighting, silk ho does not affect the overall results.
3. intelligent reverse polarity protection, product installation access 5V power supply in case of reverse, will not cause damage to the lamp beads.
4. built-in signal shaping circuit, any one pixel after receiving the signal through the waveform shaping and then output to ensure line waveform distortion will not accumulate.
5. the transmission distance between any two points in less than 5 meters without any additional signal amplification circuit.
6. when a refresh rate of 30 frames / sec, the number of cascades of not less than 1024 points.
7. the data transmission speed of up to 800Kbps. Light color consistency, cost-effective.

LED WS2813 Symphony light strip Function Description:
1. Happy control a single lamp, water, windows, rear meteor, chasing, pattern change animation, video, text, and so on.

2. Use of the lamp, in which a pixel bad, does not affect the normal operation of other lights so as not to affect the overall results.

3. Any color can show, random combinations into any pattern, in particular made light of the screen to use.

4. No separate address to write to the lamp can be achieved HTTP, installation easier.

5. Meanwhile lamp beads which also integrates a capacitive resistance, so that electronic components do not need to be on board the auxiliary light bar, thus increasing the stability of the product.

LED WS2813 strip use for :
The product rich colors and bright light, high visibility, more visually appealing

Is widely used in the corridor wall, indoor decoration

product model decorative lighting, decorative lighting consoles, speakers decorative lighting

entertainment, wine cooler bar backlight, smallpox backlight

LED light boxes, LED luminous signs, aquarium supplies, car decoration etc

it is to replace the traditional neon signs, fluorescent lamps and a new generation of lighting
