44Keys IR Remote LED strip controller for SMD 3528 5050 RGB LED Strip Lights

Specifications:
32 changing numbers

(20 static colour modes,6 DIY color modes,6 dynamic changing modes )
Input Voltage: 12V
Output Voltage: 12V 6A
Remote Controller Battery: 1x CR2025
Control box dimension: 5cm x 3.4cm x 2.2cm
Remote controller dimension: 8.5cm x 5.2cm
Current: 6A Max
Power: 144W max
Control range: 10cm - 500cm RGB LED Strips output
Working temperature: -20 Celsius - +60 Celsius
Application: Support 10 meters of 5050/3528 30LEDs/M or 5 meters of SMD5050/3528 60LEDs/M or Max load 72W
Package includes:
1 x Remote Controller
1 x Control Box
1 x Manual

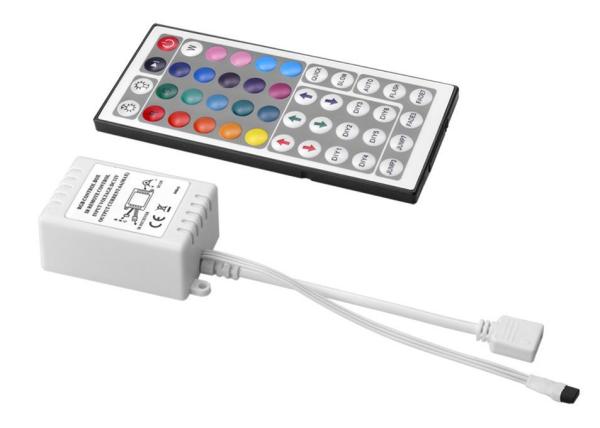

Controller

Remote

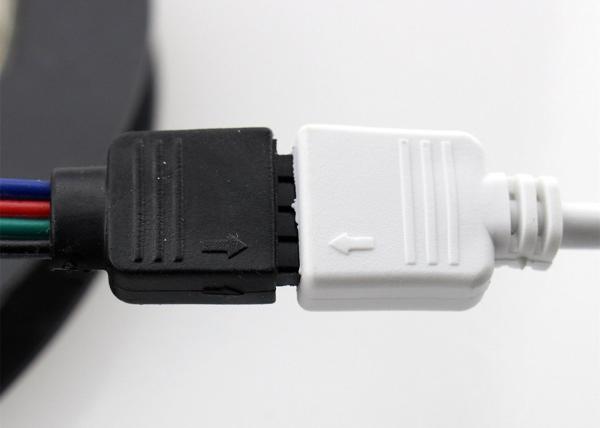

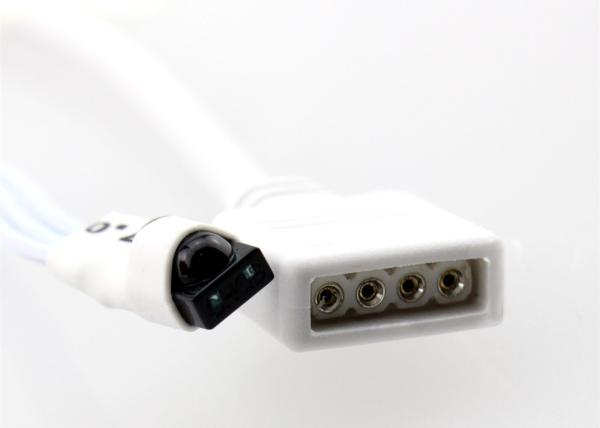

Panel and interface specifications:

Control method:
Using IR remoter to control the LED strip controller,which has 44 buttons,the function of each button as listed below :



Note:
The first two keys which concerns the brightness +/- or speed +/-,they're the multiplex key in the remote.when in static mode,they are brightness adjust keys,while in dynamical mode,they are used to adjust speed.
To avoid the battery power run out by extrusion during production and transportation,insulation film will be inserted between the battery and the circuit. Be sure to take out the insulation film before using the remote.

Install caution :
1. Please install the products by professional electrician.
2. It's non waterproof,please put into waterproof tank if in outdoor use.
3. Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
4. Please don't instatll the LED strip controller in lightening,intense magnetic and high voltage fields.
5. Check if the voltage and power supply suit the controller and the LED strip lights.
6. Plese make sure the wires can sufficiently load the LED strip lights.
