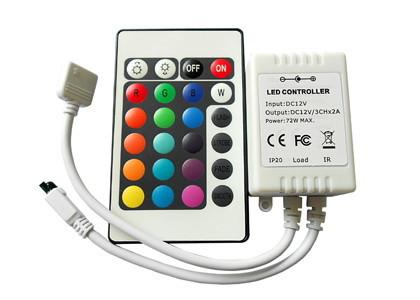

24 Key IR Color Changing Led Controller RGB With Li Battery 3 Channels CE / RoHS
24 Key IR Color Changing Led Controller RGB With Li Battery 3 Channels CE / RoHS
24 Key IR Color Changing Led Controller RGB With Li Battery 3 Channels CE / RoHS
24 Key IR Color Changing Led Controller RGB With Li Battery 3 Channels CE / RoHS
24 Key IR Color Changing Led Controller RGB With Li Battery 3 Channels CE / RoHS
24 Key IR Color Changing Led Controller RGB With Li Battery 3 Channels CE / RoHS
24 Key IR Color Changing Led Controller RGB With Li Battery 3 Channels CE / RoHS
24 Key IR Color Changing Led Controller RGB With Li Battery 3 Channels CE / RoHS
Specifications
Brand Name :
OEM
Model Number :
LLD-CT24K1
Certification :
CE / RoHS
Place of Origin :
Changzhou
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T,Paypal
Supply Ability :
100000PCS
Delivery Time :
15-20 working days
Packaging Details :
100PCS per Carton
Item :
24 keys IR LED strip controller
Input voltage :
12V DC
Output current :
2A X 3 channel 6A Max
Output power :
72W/144W (12V/24VDC)
changing mode :
20
Control method :
IR remote control
Description

24Keys IR Remote LED strip controller for SMD 3528 5050 RGB LED Strip Lights

Controller

Model Input voltage channels Output powerWatts

Modes of changing

JN-CT24K1

12V DC

3

72W (12VDC)

144W (24VDC)

20

Remote

Working voltage Control way control distance Battery types

key numbers

3V DC

IR

6-8m

Li battery,CR2052

24keys

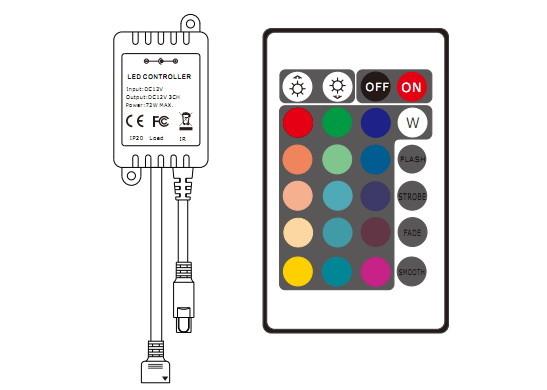

Panel and interface specifications:

24 Key IR Color Changing Led Controller RGB With Li Battery 3 Channels CE / RoHS

Control method:

Using IR remoter to control the LED strip controller,which has 24 buttons,the function of each button as listed below :

24 Key IR Color Changing Led Controller RGB With Li Battery 3 Channels CE / RoHS

Note:

The first two keys which concerns the brightness +/- or speed +/-,they're the multiplex key in the remote.when in static mode,they are brightness adjust keys,while in dynamical mode,they are used to adjust speed.

To avoid the battery power run out by extrusion during production and transportation,insulation film will be inserted between the battery and the circuit. Be sure to take out the insulation film before using the remote.

The wiring and the typical product apply diagram 24 Key IR Color Changing Led Controller RGB With Li Battery 3 Channels CE / RoHS

Production dimensions:

24 Key IR Color Changing Led Controller RGB With Li Battery 3 Channels CE / RoHS

Packing details :

Controller size Remote size Packaging size Weight/pcs Ctn size G.W./ctn

Pcs/CTN
L61.5xW35xH22mm L85xW52xH7mm L90xW57xH40mm 76g 39x30x22cm 8.2

100pcs

Install caution :

1.Please install the products by professional electrician.

2.It's non waterproof,please put into waterproof tank if in outdoor use.

3.ALways be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.

4.Please don't instatll the LED strip controller in lightening,intense magnetic and high voltage fields.

5.Check if the voltage and power supply suit the controller and the LED strip lights.

6.Plese make sure the wires can sufficiently load the LED strip lights.
