Touch Screen Controller Wireless RF Touch Remote For Flexible RGB Strip Light

Specifications:

1. Technical Data of Touch Screen RF Wireless RF Controller

Input Voltage: 12V DC or 24V DC

Loadable Current: 6A x 3 Channel, 18A Max

Output Power: 216W at 12V DC, 432W at 24V DC

Control Method: RF

Colour Effects: 18 Modes (7 static modes, 11 dynamic modes) (1-touch wheel (64 colour)

Dimming Method: PWM

Grey Steps: 256 per Channel

Dimming Intensity: 10 steps

Connection Mode: Common Anode

Radio Frequency: 433 MHz

Remote Range: >20m

Working Temp: -30C - +60C

Remote Battery Type: 3 AAA (not included)

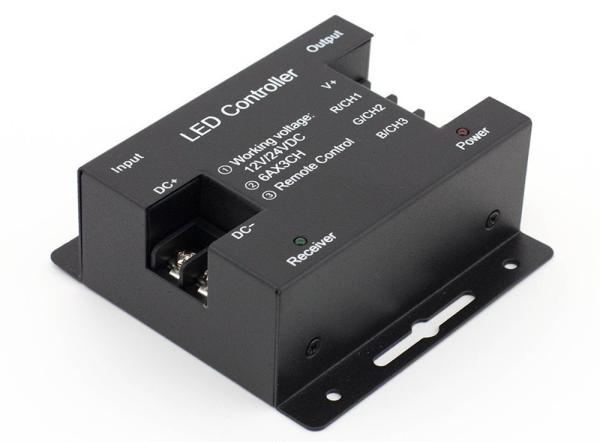

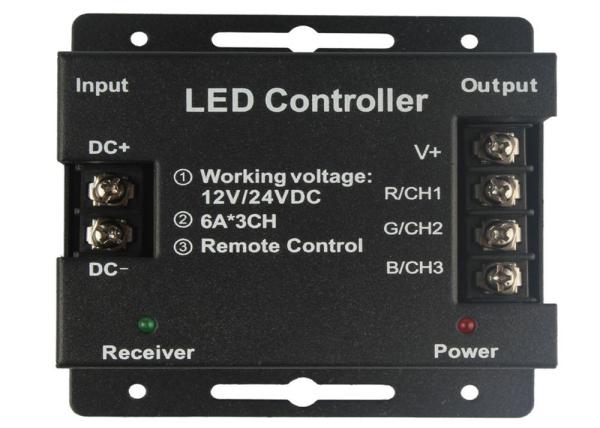

2. Brief Introduction of DC12-24V RGB LED Touch Screen Controller with Wireless RF Touch Remote

Using the newest capacitance touch and wireless technology, this elegant colour wheel controller will control any of the RGB lights we sell. Large 6 amp per channel allows for the capacity required in many of today's installations. Perfect for controlling RGB flex used in cove lighting, home theaters and anyplace you want to add colour to your environment.

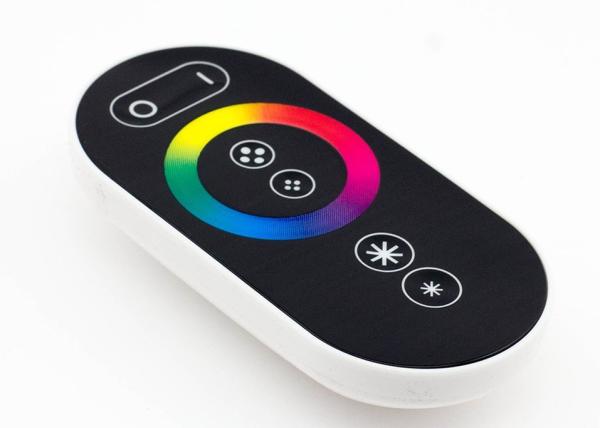

The very sensitive colour wheel remote will allow you to dial in the exact colour you want or you can activate one of the 17 pre programed colour modes. We especially like the auto play mode which cycles through all the dynamic colour modes making for a beautiful, changing colour effect. In addition to controlling the colour and light mode, the remote will turn your lights on and off, change the speed of the colour effects and control the brightness. There is quite a lot built into this product and it will allow you to experiment with the full spectrum of RGB lighting.

3. Features of DC12-24V RGB LED Touch Screen Controller with Wireless RF Touch Remote

Used to control RGB strip lights. Easily change the modes of the strip light to solid colors, to light shows and color mixing.
