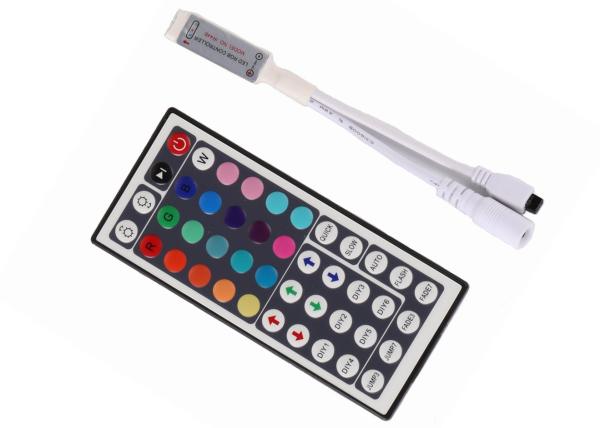

Mini IR Remote RGB LED Strip Controller 72W 44Keys SMD 5050 Smooth Change
Mini IR Remote RGB LED Strip Controller 72W 44Keys SMD 5050 Smooth Change
Mini IR Remote RGB LED Strip Controller 72W 44Keys SMD 5050 Smooth Change
Mini IR Remote RGB LED Strip Controller 72W 44Keys SMD 5050 Smooth Change
Specifications
Brand Name :
OEM
Model Number :
LLD-CT44K3
Certification :
CE RoHS
Place of Origin :
Changzhou
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T,Paypal
Supply Ability :
100000PCS
Delivery Time :
15-20 working days
Packaging Details :
100PCS per Carton
Item :
44keys IR LED strip controller
Input voltage :
12VDC
Output current :
2AX3 channel 6A Max
Output power :
72W
changing mode :
32
Control method :
IR remote control
Description

44Keys mini IR Remote LED strip Controller LED RGB strip lights

Specifications:
32 changing numbers

(20 static colour modes,6 DIY color modes,6 dynamic changing modes )
Input Voltage: 12V
Output Voltage: 12V 6A
Remote Controller Battery: 1x CR2025
Remote controller dimension: 8.5cm x 5.2cm
Current: 6A Max
Power: 72W max
Working temperature: -20 Celsius - +60 Celsius
Application: Support 10 meters of 5050 / 3528 30LEDs/M or 5 meters of SMD5050/3528 60LEDs/M or Max load 72W
Package includes:
1 x Remote Controller
1 x inline controller
1 x Manual

Controller

Model Input voltage channels Output powerWatts Modes of changing

JN-CT44K1

12V DC

3

72W (12VDC)

32


Remote

Working voltage Control way control distance Battery types key numbers

3V DC

IR

6-8m

Li battery,CR2052


44keys

16 colors, 5 light pattern: Static/Flash/Strobe/Fade-change/RGB Smooth-change.

16-classes Static Mode Dim Control

16-Speeds Control in Flash / Strobe / Fade-change / RGB Smooth-change

6 DIY keys, you adjust the R/G/B color freely

Input Voltage: 12V (Power supply is not included). Compatible with LED RGB Strip lights

Mini IR Remote RGB LED Strip Controller 72W 44Keys SMD 5050 Smooth Change


Control method:
Using IR remoter to control the LED strip controller,which has 44 buttons,the function of each button as listed below :

Mini IR Remote RGB LED Strip Controller 72W 44Keys SMD 5050 Smooth Change

Note:
The first two keys which concerns the brightness +/- or speed +/-,they're the multiplex key in the remote.when in static mode,they are brightness adjust keys,while in dynamical mode,they are used to adjust speed.
To avoid the battery power run out by extrusion during production and transportation,insulation film will be inserted between the battery and the circuit. Be sure to take out the insulation film before using the remote.
