10mm (5050) Solderless LED Strip Connector Multi Color RGB Strip to Strip Any Angle

RELIABLE AND EASY TO USE connection for bending your strips around a corner, extending them across a gap, or connecting them to a power supply or dimmer

SOLDERLESS CONNECTION can be used by anyone. No tools or electrical experience required

CONNECTS EASILY to a cut section of LED light strip. Simply open the clasp, make sure the strip aligns with the connector (match the positive terminals), and slide it underneath the contact prongs. Compatible with any 8mm strips

Specifications :

Connector Internal Width : 10 mm

Connector External Dimensions : 16.5 x 14 x 5 mm (5/8 x 1/2 x 3/16 inches)

Wire Length :any lengths

Wire Gauge : 22 AWG

Part Number : Compatible with any 5050 10mm LED RGB strip lights.

Our 10mm RGB multicolor (5050) LED light strip connectors are a simple, frustration-free solution for all of our LED light strip connection and extension needs. These solderless connectors install with a simple clasp attachment, meaning that you can achieve a safe and secure connection without any tools. Suitable for all LED light strip applications including kitchens, cabinets, bedrooms, shelving, and displays. These connectors come in a variety of lengths and styles to meet your needs.

Product Features :

Connect your strip light to another strip light, dimmer, or power supply

Simple, tool-free installation

Available in wired lengths of 6 inches to twelve feet, as well as gapless connectors and Strip to 4 Pin connectors

Installation Instructions:

Ensure your section of LED light strip has four contacts (+, R, G and B) and the contacts are clean.

Open the white clasp of the connector.

Insert the LED light strip into the clasp, under the prongs - making sure to match the + on the strip to the + on the clasp

Close the clasp

Gently pull on the LED light strip to confirm you've made a solid connection

Your connection is made!

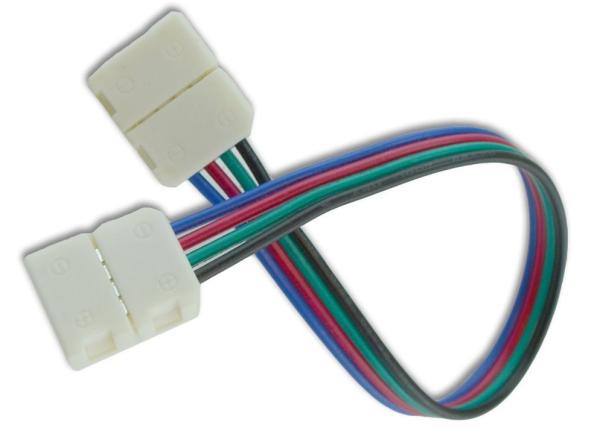

Our connectors and extensions are fully bendable and are perfect for extending a run of LED strip across a gap, around an obstacle, or for making a bend.

Easy to Use

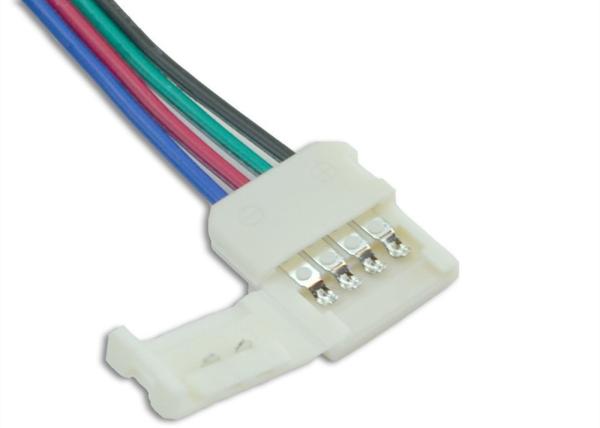

Open

Open the wire clip. It should snap open with just a little effort.

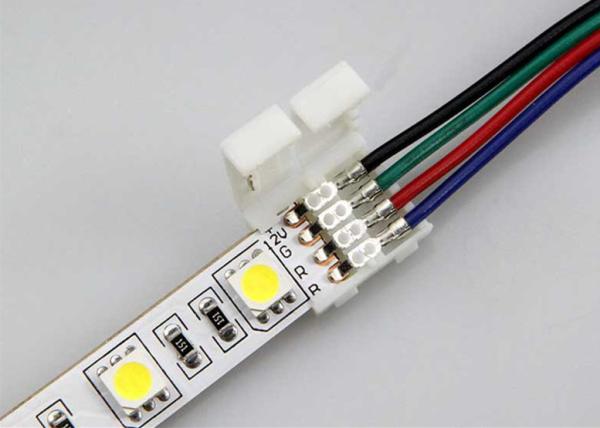

Insert

Insert your 8mm LED light strip inside the clip underneath the two contact prongs, making sure the 12V side of the strip aligns with the + symbol.

Close

Snap the wire clip shut. Gently pull on the wire to confirm you've secured the strip inside the connector.
