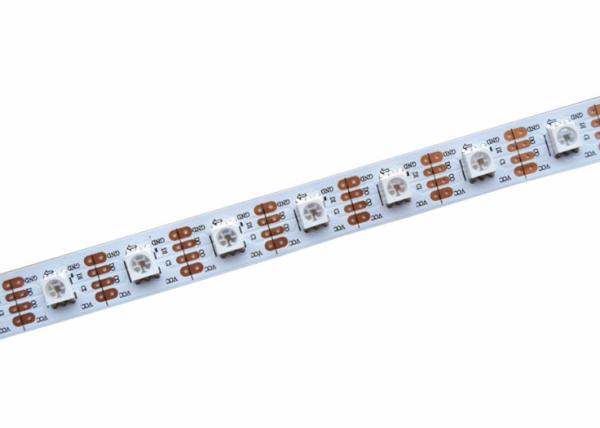

5M 16.4Ft SK6812 DC5V 4 in 1 30 60 144Leds/meter Magic RGB LED Strip Individual Addressable

Specification:

Light source: SMD 5050 LED;

Sheet: FPCB;
Chip: Epistar chip,

Gray scale: 256;

LED Quantity: 24/36/60/96/144 LEDs/Pixels / m;
Viewing angle: 120 °;

Standard Operating Voltage: DC 5V;

Features:

1. Addressable full color led strips ——SK9822 IC built-in.

2. Individually control —— 1 IC & I LED chip.

3. Standard Reel Length: 5meter/roll, also can be customized.

4. Cutted: 1 integrated RGB LEDs per segment, can be cutted per 1LED.

you can cut this stuff pretty easily with wire cutters, there are cut-lines

5. Power supply: You must use a 5V DC power supply to power this striup,

do not use higher than 6V or you can destroy the entire strip.

6. Sticky: non-waterproof: with 3M adhesive on back side for sticky;

waterproof: screw+silicon clip or 3M adhesive back side.

7. Connectors: 4PIN JST female and male connectors, DAT, CLK, DC5V+, GND-.

these LEDs have 2 wires (input and output) for sending data - one clock pin and one data pin. That means you need two pins, not one, to control DotStars. Because the clock and data is seperated, you can use any processor speed or type to control these strips, and you don't have to worry about being careful with the timing.

8. Type:

This is the 60 LED-per-meter version, We have 30 LED/m, 60 LED/m and 144 LED/m.

Waterproof——white PCB; Non-waterproof ——white PCB;

Waterproof——black PCB; Non-waterproof——black PCBSize

Application:

Applicable for automobile and bicycle decoration, border or contour lighting

Widely used for home decoration use, hotels, clubs, shopping malls

Architectural decorative lighting, boutique atmosphere lighting

Extensively applied in Backlighting, concealed lighting, channel letter lighting

Emergency & security lighting, advertisement sign lighting

Decorative lights for holiday, event, show exhibition
