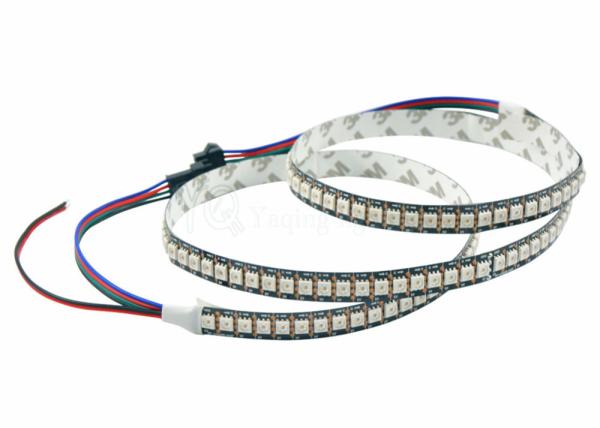

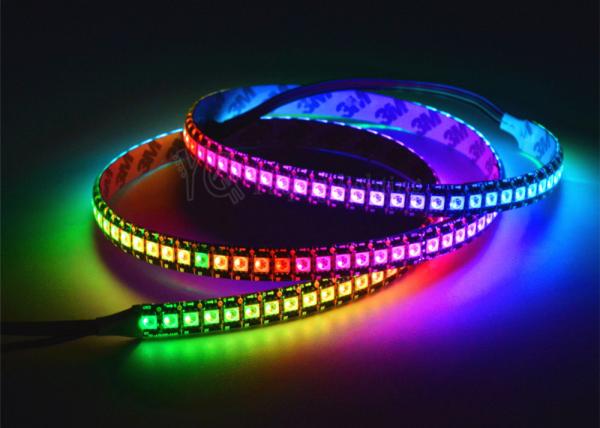

APA102 Addressable RGB LED Strip , DC 5V RGB LED Strip Adjusted Colors
APA102 Addressable RGB LED Strip , DC 5V RGB LED Strip Adjusted Colors
APA102 Addressable RGB LED Strip , DC 5V RGB LED Strip Adjusted Colors
APA102 Addressable RGB LED Strip , DC 5V RGB LED Strip Adjusted Colors
APA102 Addressable RGB LED Strip , DC 5V RGB LED Strip Adjusted Colors
APA102 Addressable RGB LED Strip , DC 5V RGB LED Strip Adjusted Colors
Specifications
Brand Name :
OEM
Model Number :
LLD5050-APA102S
Certification :
CE & RoHS
Place of Origin :
Changzhou
MOQ :
250 meters
Price :
USD
Payment Terms :
T/T
Supply Ability :
100000meters per month
Delivery Time :
15-20 working days
Packaging Details :
5meters per reel,one reel per anti-static bag,250meters per carton
Item :
APA102 Magic RGB LED strip
LED :
SMD5050
LEDs/M :
30/60/96/144 LEDS
IC :
APA102
LED colour :
RGB
Volts :
DC 5V
Description

APA102 DC5V Pixels addressable Magic RGB LED Strip with 30 60 96 144Leds/meter

Parameter:

• Item: APA102 Magic RGB LED strip
• Light source: SMD 5050 LED
• Sheet: FPCB
• IC Model: APA-102
• Gray scale: 256,
• LED Quantity: 30/60/144 Leds / m
• Viewing angle: 120 °
• Color: color, can be adjusted
• Standard Operating Voltage: DC 5V
• Power: 10 ± 10% / m
• Waterproof Rate:IP20/IP65/IP67
• FPCB color: Black/White
• Packing: 1/5m/roll, static bag packaging

LED TYPE APA102 5050 Magic RGB Strips
PCB Width 10mm
View angle 120 degree
LED QTY 30/60/96/144LEDS/M
Voltage DC5V
Installation wiht 3M adhesive back ,easy for installation
IP rate IP20(non -waterproof /IP67(Silicon tube waterproof )
Package 5M/reel .with anti-static bag ,or customized



Applications:


• Widely used for home, hotels, clubs, shopping malls.
• Architectural decorative lighting, boutique atmosphere lighting
• Extensively applied in Back-lighting, concealed lighting
• Emergency & security lighting, advertisement sign lighting
• Holiday, event, show exhibition decoration.

Installation Instructions:


• Clean the surface you intend to stick the light strip to
• Peel off the backing strip off the 3M adhesive tape
• Press and hold the light strip firmly against the surface
• Connect the 4-Pin input of the light strip to the 4-Pin output of the Controller
• Connect the DC jack output of the power adapter to the DC jack input of the Controller
• Remove the tab from the battery compartment of the remote control
• Connect your power adapter to your wall outlet. Your light strip is now ready to use.
