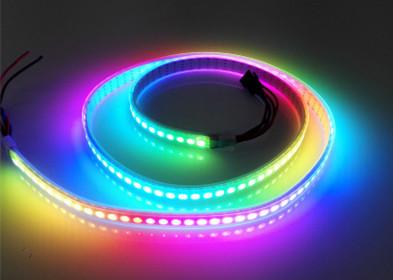

Non-waterproof IP20 Magic Digital dream colour WS2813 Magic RGB LED strip 144 pixels addressable

• Signal break-point continuous transmission.
• Dual signal wires version, signal can jump to transfer.
• One pixel damaged will not affect the other LEDS working.
• The control circuit and RGB chip are integrated in a 5050 components, to form an external control pixel.
• Using the built-in signal reshaping circuit to achieve the signal waveform shaping, and no distortion of waveform of signal takes place.

Specifications:

Input voltage: DC5V Input;

Power:43.2watt/meter,86.40watt/roll;

LED resource:WS2813-RGB led(5050 SMD RGB LED with built-in improved version of WS2811S IC)

Q'ty of LED: 144leds/meter,288leds/roll, each LED is separately controlled;

IC Type: WS2813 IC(built inside the 5050 smd rgb led);

Q'ty of IC: 144IC/meter (1 IC drives 1 led chip);

Pixels:144/meter;

Grey scale: 256;

Bits/color: 8-bits/color;24bit for RGB;

FPC size: Width: 12mm, High: 2.5mm;

FPC color: WHITE PCB;

Protection rate:IP20 non-waterproof;

Colors: Full color RGB, dream color changing;

Cuttable: Every LED is cuttable;

Work temperature : 20~60℃

Package: 2meters/reel in anti-static bag;

Main feature:

one pixel damaged will not affect the other LEDs' working.

Dual signal wires version, signal can jump to transfer.

The power protection,if +5V and GND reverse polarity,the LED will not be burned.

The original electronic devices integrated,it does not cause virtual welding in the installation process.

Attention:

1. All the electronic components are integrated in a 5050 lamp beads, it does not require any other peripheral auxiliary electronic components to form a complete external control pixels. While reducing the product at the time of installation inverted Weld, caused by poor.
2. serial cascade interface, dual-line signal transmission, to achieve the functions of HTTP, which under a single pixel without causing damage to its lower pixel normal lighting, silk ho does not affect the overall results.
3. intelligent reverse polarity protection, product installation access 5V power supply in case of reverse, will not cause damage to the lamp beads.
4. built-in signal shaping circuit, any one pixel after receiving the signal through the waveform shaping and then output to ensure line waveform distortion will not accumulate.
5. the transmission distance between any two points in less than 5 meters without any additional signal amplification circuit.
6. when a refresh rate of 30 frames / sec, the number of cascades of not less than 1024 points.
7. the data transmission speed of up to 800Kbps. Light color consistency, cost-effective.
