Specifications
Brand Name :
OEM
Model Number :
LLD5050-S30MRGB
Certification :
CE & RoHS
Place of Origin :
Changzhou
MOQ :
250 meters
Price :
USD
Payment Terms :
T/T
Supply Ability :
100000meters per month
Delivery Time :
15-20 working days
Packaging Details :
5meters per reel,one reel per anti-static bag,250meters per carton
Item :
Magic RGB LED strip
LED :
SMD5050
LEDs/M :
30LEDS
IC :
WS2812B
LED colour :
RGB
Watt :
7.2W/m
Description

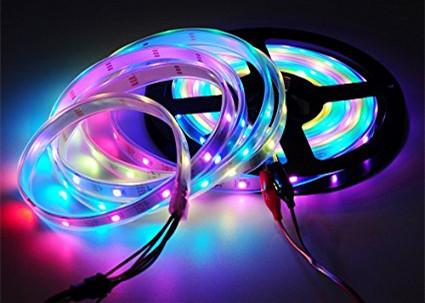

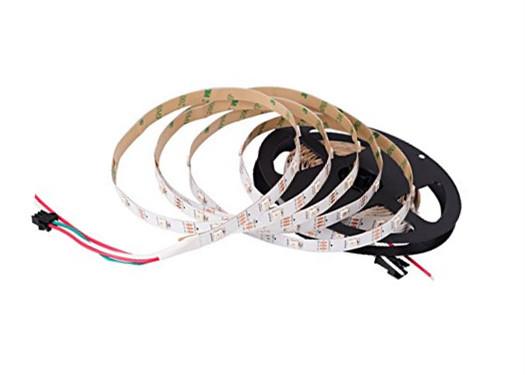

WS2812B 5m 16.4FT Individually Addressable Magic RGB LED Strip 16.4ft 150 SMD 5050 RGB

  • Individually Addressable.Dream full color Programmable LED Strip,WS2812B LED IC Built in 5050SMD.256 brightness display and 24-bit color display.
  • FPCB, JST-SM connectors on both ends for easy installation
  • Works great with Arduino and is easy to program. The addressable IC is built-in the 5050SMD.Each pixel can have its own color and brightness as your wish. Can be cut each 5050SMD individually, and will works great without damage
  • DC 5v. Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effects, you can also edit animation effect by Coreldraw/Flash/LedEdit software.
  • Making led screen, led wall, advertising board, apply to hotel, KTV, bars, Outdoor advertising signs, Festivel Christmas or wedding party decoration,It has adhesive glue on the back, so you can stick it to the wall or other items conveniently as you like.
Product parameters and specifications:

●Model: WS2812B 150 pixels LED strip
●Gray level: 256
●View angle: 120°
●Input voltage: DC5V
●Color: full color 24-bit
●FPCB board color:White
●Power:9W/m 0.3W/led 30leds/m
●Standard Reel Length:5meter/roll
●Model: WS2812 strip 5050 Magic RGB Strip

●Operating Temperature:-20 ~ +40°C
●Led Qty: 150pcs RGB SMD 5050 per meter
●Wave length(nm):Red,650nm ; Green,520nm ; Blue,460nm
●Waterproof level:IP20 non-waterproof (IP65 IP68 optional)


Specification:

ModelLLD5050-S30MRGBICWS2812B
VoltageDC5VDrive modeConstant voltage
Input current60 mAIP rateIP 20------
Light sourceSMD5050IP 65PU/silicone glue
LED Qty30leds/M , 150leds/reelIP 68Silicon tube + silicon glue
Power7.2W/MConnectorJST-SM connector
MaterialFPCB/CopperParallel lines
CCT/WL//Viewing Angle120°
//Dimension5000*10*2.3mm
//Back Tape3M adhesive tape
R620-625nmOperating temp.-40~60℃ (-40°F~+140°F)
G520-525nmStorage temp.-40~60℃ (-40°F~+140°F)
B460-465nmWarranty

2 years


Features
●Individually Addressable
Using a programmable controller , you can program every led just as you like. Every one has its own IC chip.One IC controlls one led.The chip is built in led.

●Bright
HURT YOUR EYES BRIGHT.

●Cuttable
Every led can be cut off,led strip still working after it is cut. Cut it to the length you just need.

●Adhesive
They(IP30 ,IP65) has 3M adhensive tape on the back.You can paste it on the bookcase, TV, wine cabinet, ceiling, windowsill easily .IP67 has NO adhesive on its back.

●Colorful
Red ,Green, Blue .Dream full color. curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software

●Long life
Life span:more than 50000hrs


Precautions
●Using voltage DC5V ,higher than 6V will destroy it.
●If you need better led strip performance, you can use an Android/IOS bluetooth controller or a programmable controller K-1000C .
● It is better to add DC5V voltage every 16.4ft, because the LEDs at the far end of the strip might be dimmer due to the added resistance and voltage drop that occurs as the current flows to that end of the strip.
