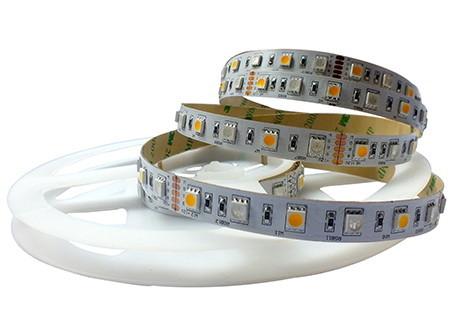

Flexible SMD 5050 LED RGB Strip Lights Cuttable No Ultraviolet Multi Colours
Flexible SMD 5050 LED RGB Strip Lights Cuttable No Ultraviolet Multi Colours
Flexible SMD 5050 LED RGB Strip Lights Cuttable No Ultraviolet Multi Colours
Flexible SMD 5050 LED RGB Strip Lights Cuttable No Ultraviolet Multi Colours
Specifications
Brand Name :
OEM
Model Number :
LLD5050-S60RGBW-12
Certification :
CE & RoHS
Place of Origin :
Changzhou
MOQ :
250 meters/50Rolls
Price :
Negotiable
Payment Terms :
T/T,Paypal
Supply Ability :
300000meters per month
Delivery Time :
15-20 working days
Packaging Details :
5meters per rolll,one roll per anti-static bag,250meters per carton or Customized packing design
Item :
RGBW LED strip light
Voltage :
12V DC
LEDS/meter :
SMD5050 60LEDS/m
Max.watts :
14.4W/m
FPC colour :
white,yellow or brown
Emitting colour :
multi colours or single colour
Cuttable :
every 3LEDS
Protection :
IP20 IP65 or IP68
Description

Flexible 5050 LED RGB Strip light 60 LEDs / m 12VDC SMD5050 RGBW LED strip multi colours

Descriptions:
1. 2. DC12V, 60leds/m, 14.4w/m,
2. Available in single colors: red, green, blue, yellow, RGB, RGBW, white, warm white, etc.
3. Cuttable every 3LEDs along the cutting marks.
4. With 3M adhesive tape in the back, very simple to install at any surfaces.
5. No ultraviolet and infrared radiation, low heat-release, long lifetime for 35,000hrs.
6. 120° view angle.
7. CE and RoHS approved.
8. 2 years warranty.

Specifications:

Model LLD5050-S60RGBW-12 CRI 70-90
Voltage DC12V Drive mode Constant voltage
Input current 60 mA IP rate IP 20 bare
Light source SMD5050 IP 65 PU glue
Lumen/LED RGB+W IP 67 Silicon tube
LED Qty 60leds/M , 300leds/reel IP 68 Silicon tube + silicon glue
Power 14.4W/M Connector 4 PIN connector
Material FPCB/Copper Parallel lines
CCT/WL Warm White 2800-3000K Viewing Angle 120°
Pure White 4000-4500K Dimension 5000*12*2mm
Cool White 6000-6500K Back Tape 3M adhesive tape
R 620-625nm Operating temp. -40~60℃ (-40°F~+140°F)
G 520-525nm Storage temp. -40~60℃ (-40°F~+140°F)
B 460-465nm Warranty 2 years

Comparing the FPC color and comparing the IP rate:


Flexible SMD 5050 LED RGB Strip Lights Cuttable No Ultraviolet Multi Colours


SMD 5050 LED Strip Dimension:
Flexible SMD 5050 LED RGB Strip Lights Cuttable No Ultraviolet Multi Colours


Normal packing :

Flexible SMD 5050 LED RGB Strip Lights Cuttable No Ultraviolet Multi Colours

A. Connector of strip to strip and connector of strip to power are both available:
1. Cut along the mark line, tear a little bit 3M tape from the mark. If 3M tape is not peeled off a little,
it will be not easy to insert the strip into the connector.
2. Pull the black plastic lock out from the connector, insert strip.
3. Make sure the soldering pads fully touch the conjunction metal.
4. Push the plastic lock back towards the middle in the lock position.
5. Do not use too much strength while pulling the plastic lock, otherwise it can destroy the connector.
B. Notes for flexible RGB LED strip light mounting:
1. Please make sure that the back-surface of RGB LED strip light are clean and dry. no dirt, oil, silicon oil, etc.
2. Make sure that the adhesive backing is removed completely to guarantee perfect mounting.
3. After the SMD LED strip is well-positioned, press the strip with an appropriate force.

Flexible SMD 5050 LED RGB Strip Lights Cuttable No Ultraviolet Multi Colours

Typical connection :
Flexible SMD 5050 LED RGB Strip Lights Cuttable No Ultraviolet Multi Colours
Flexible SMD 5050 LED RGB Strip Lights Cuttable No Ultraviolet Multi Colours
