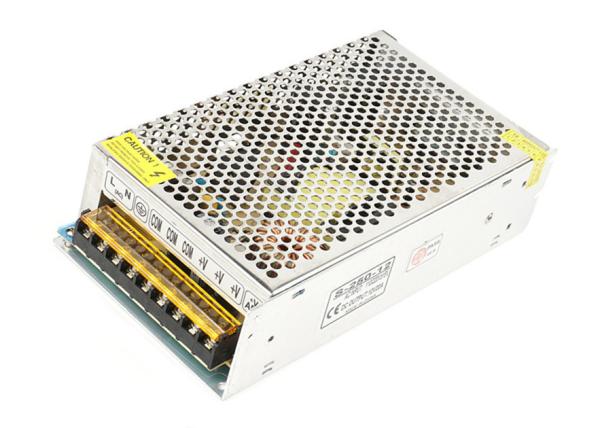

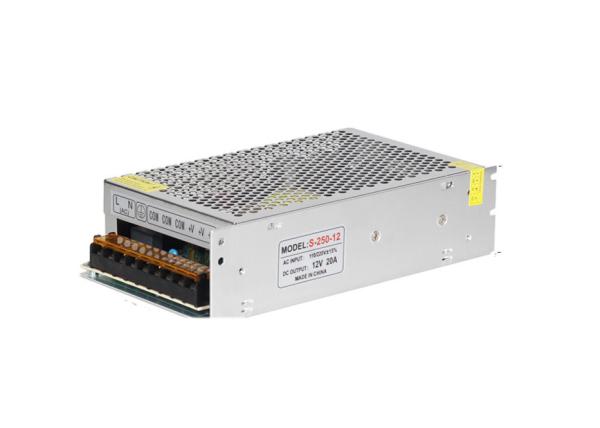

12V 20A LED Strip Power Adapter Driver Reliable Free Air Convection 19 * 11 * 5cm
12V 20A LED Strip Power Adapter Driver Reliable Free Air Convection 19 * 11 * 5cm
12V 20A LED Strip Power Adapter Driver Reliable Free Air Convection 19 * 11 * 5cm
12V 20A LED Strip Power Adapter Driver Reliable Free Air Convection 19 * 11 * 5cm
12V 20A LED Strip Power Adapter Driver Reliable Free Air Convection 19 * 11 * 5cm
12V 20A LED Strip Power Adapter Driver Reliable Free Air Convection 19 * 11 * 5cm
Specifications
Brand Name :
OEM
Model Number :
LLD-SP8.3A
Certification :
CE TUV EMC LVD RoHS
Place of Origin :
Changzhou
MOQ :
200PCS
Price :
Negotiable
Payment Terms :
T/T Paypal
Supply Ability :
100000PCS
Delivery Time :
15-20 working days
Packaging Details :
100PCS per Carton
Item :
Switching power supply for strip light
Model :
LLD-ADP8.3A
Input :
AC100-240V 50/60Hz
Output :
12VDC 8.3A
Power :
100W
warranty :
3 years
Description

12V 8.3A 100W 110V-220V LED Strip Power Adaptor LED Driver for LED strip light

  • Input Voltage: AC 110V-220V±15%
  • Output Voltage: DC 12V
  • Output Current: 20A
  • Power:240W
  • Net Weight: 672g
  • Demension: 19*11*5cm
  • Shell Material: Metal case
  • Working Temperature: 0~40C
  • Storage Temperature: -20~60C
  • Ambient Humidity: 0~95% Non-Condensation
  • Safety Compliance: FCC / CE /Rohs
  • High price-effective, reliability with industry standards
  • Built-in over voltage, over current, and short circuit protection
Model Input voltage Frequency Output voltage Current Watts

Ref.Size(mm)

JN-SP20A

100-240v

50/60HZ

12V DC

20A

240W

190x110x50

Specification:
● Good quality & high performance
● Protections: overload/ over voltage/ short circuit Cooling by free air convection(Not suggest for use in bathroom)
● 8.3A is rated current. The unit can work long hours at this current and good cooling environment. The actual output current depends on circuit loads.
● Please DO NOT let the unit work long hours over rated current! Normally it is better to work under 80% of rated current.

Wiring:
● L, N, GND: AC power input
● +V: DC power output "+"
● -V: DC power output "-"
● +V / ADJ: fine adjustment of output voltage
Working Temperature: 0~40℃
Humidity: 0~95% Non-Condensation

IN-DOOR USE ONLY!

12V 20A LED Strip Power Adapter Driver Reliable Free Air Convection 19 * 11 * 5cm

12V 20A LED Strip Power Adapter Driver Reliable Free Air Convection 19 * 11 * 5cm
