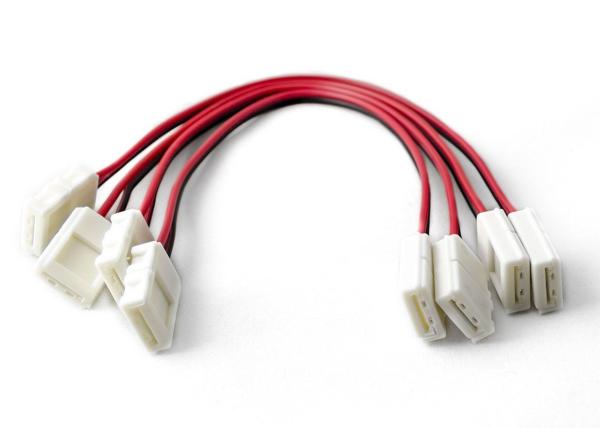

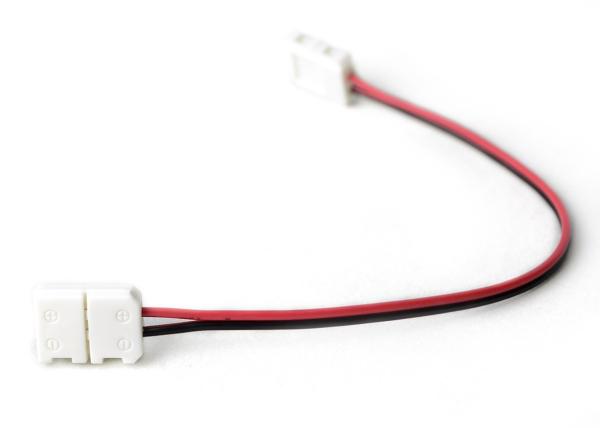

Solderless LED Strip Connector , 8mm 3528 Single Color LED strip LED Tape Light

RELIABLE AND EASY TO USE connection for bending your strips around a corner, extending them across a gap, or connecting them to a power supply or dimmer

SOLDERLESS CONNECTION can be used by anyone. No tools or electrical experience required

CONNECTS EASILY to a cut section of LED light strip. Simply open the clasp, make sure the strip aligns with the connector (match the positive terminals), and slide it underneath the contact prongs. Compatible with any 8mm strips

Specifications :
• Connector Internal Width : 8 mm
• Connector External Dimensions : 13.5 x 12.5 x 5 mm (5/8 x 1/2 x 3/16 inches)
• Wire Length : 6 inches
• Wire Gauge : 22 AWG

Compatible with any standard density (300 LED / roll) 3528, 2835, or other 8mm LED light strip light

Product Features :
• Connect your strip light to another strip light, dimmer, or power supply
• Simple, tool-free installation
• Available in wired lengths of 6 inches to twelve feet, as well as gapless connectors and Strip to DC Jack connectors

Making Connections

No LED strip light solution is complete without connectors. You can use them to bend your light strip around corners, or to extend it past an obstacle. Our connectors feature an easy solderless clip connection, and come in lengths from 6 inches to 12 feet. They're a simple and easy solution to customizing your LED light strip project.

Our 8mm single color (3528) LED light strip connectors are a simple, frustration-free solution for all of our LED light strip connection and extension needs. These solderless connectors install with a simple clasp attachment, meaning that you can achieve a safe and secure connection without any tools. Suitable for all LED light strip applications including kitchens, cabinets, bedrooms, shelving, and displays. These connectors come in a variety of lengths and styles to meet your needs, and they all come with our HitLights 1 Year Warranty

Installation Instructions:
• Ensure your section of LED light strip has two contacts (+ and -) and the contacts are both clean
• Open the white clasp of the connector
• Insert the LED light strip into the clasp, under the prongs - making sure to match the + and - on the strip to the + and - on the clasp
• Close the clasp
• Gently pull on the LED light strip to confirm you've made a solid connection
• Your connection is made!

Our connectors and extensions are fully bendable and are perfect for extending a run of LED light strip across a gap, around an obstacle, or for making a bend.

Easy to Use

Open

Open the wire clip. It should snap open with just a little effort.

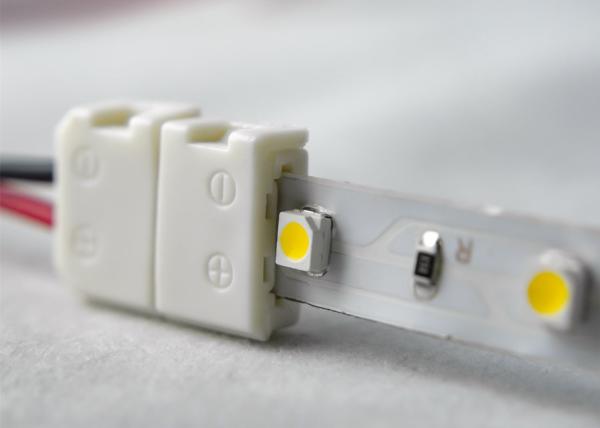

Insert

Insert your 8mm LED light strip inside the clip underneath the two contact prongs, making sure the + and - symbols align.

Close

Snap the wire clip shut. Gently pull on the wire to confirm you've secured the strip inside the connector.
