Mobile 1920Hz LED Display SMD 3535 P6.25 Mean Well Power Supply
Mobile 1920Hz LED Display SMD 3535 P6.25 Mean Well Power Supply
Mobile 1920Hz LED Display SMD 3535 P6.25 Mean Well Power Supply
Mobile 1920Hz LED Display SMD 3535 P6.25 Mean Well Power Supply
Specifications
Certification :
CE, CCC, FCC, ROSH, ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
USD 400-1999 per sqm
Payment Terms :
T/T, Western Union
Supply Ability :
1300 square meters per month
Delivery Time :
within 15 to 20 working days after receiving deposit
Packaging Details :
Flight case or wooden case
Pixel pitch :
6.25mm
Pixel package :
SMD3535
Power supply :
Mean Well
Panel weight :
9 KG
IP grade :
IP65
Frame frequency :
60Hz
Refresh Rate :
1920Hz-3840Hz
Module size :
250x250mm
Description

Mobile 1920Hz LED Display SMD 3535 P6.25 Mean Well Power Supply​

Description:

Integrally mounted handle, easier disassembly.

LED module connects to frame through magnet adsorption.

Frame supports different model(pixel pitch)of modules, increasing the investment return by 30%.

4 fast locks with adjustment function for the seamless between panels.

Front & rear maintenance while display is running-no tools needed.

Specifications:

LED Lamp Specification

Color

Package

Intensity

Viewing angle

Wavelength

Testing condition

Red

SMD3535

800-1100mcd

120°

620-625nm

25℃,20mA

Green

SMD3535

1600-2250mcd

120°

515-530nm

25℃,20mA

Blue

SMD3535

350-500mcd

120°

465-475nm

25℃,20mA

Module Parameter

Pixel Pitch

6.25mm

Pixel Configuration

SMD3535

Density

27,778 pixels/sqm

Module Resolution

32pixel(L) * 32pixel(H)

Driving Mode

Constant current, 1/4 duty

Module Mask

Pure black mask---high contrast screen

LED Cabinet

Cabinet Material

Die Cast Aluminum

Cabinet Weight

≈12KG

Electricity Parameter

Optical Ratings

Brightness

≥6,500 cd/sqm

Viewing Angle

120°(Horizontal); 120°(Vertical)

Best Viewing Distance

≥6m

Display Color

4.4 trillion colors

Brightness Adjustment

100 grades by software or automatically by sensor

Operation Power

AC100-240V 50-60Hz Switchable

Max. Power Consumption

850 W/sqm

Avg. Power Consumption

280W/qsm

Control System

Frame Frequency

≥60Hz

Refresh Frequency

≥1,920Hz

Input Signal

Composite Video, S-video, DVI, HDMI, SDI, HD-SDI

Control Distance

100m(Ethernet cable);

20KM(optical fiber cable)

Support VGA Mode

800*600, 1024*768, 1280*1024, 1600*1200

Color Temperature

5000—9300 adjustable

Brightness Correction

Pixel by pixel, module by module, cabinet by cabinet

Reliability

Working Temperature

-20~+60 ºC

Storage Temperature

-30~+70 ºC

Working Humidity

10%~90% RH

Lifetime

100,000 hours

MTBF

5000 hours

Continuous Operating Time

≥72 hours

Protection Grade

IP65(front), IP54(rear)

Applications:

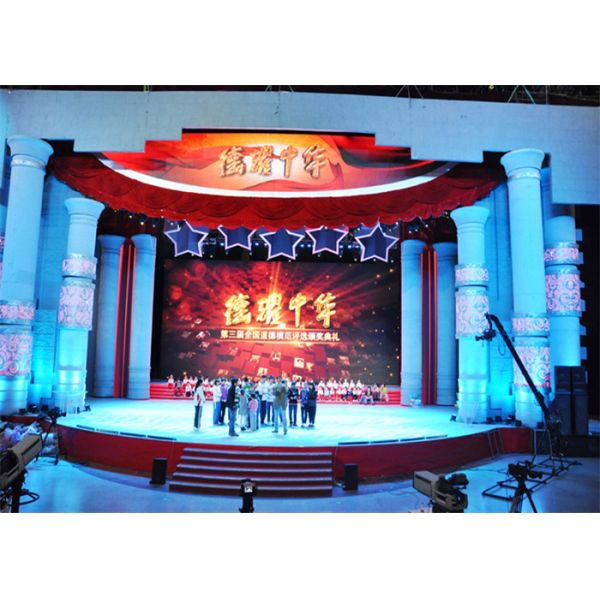

Live shows, rental events, TV studios, exhibitions,Facades of shopping malls, department stores, banks and car dealerships.

Our Services:

1. Two-year quality warranty with lifelong maintenance.

2. Free guarantee repair (including labor and material); free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.

3. Responding time: upon receiving user’s notification, we ensure 24-hour after-sales technical support.

4. Spare parts: necessary spare parts are provided together with products to customers.

5. Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.

6. Telephone investigation: our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.
