29000LM 200 Watt LED High Bay Light for Shopping Mall Lighting
29000LM 200 Watt LED High Bay Light for Shopping Mall Lighting
29000LM 200 Watt LED High Bay Light for Shopping Mall Lighting
29000LM 200 Watt LED High Bay Light for Shopping Mall Lighting
Specifications
Brand Name :
LEDSION
Model Number :
LS7EHB200WBCPD1
Certification :
UL, DLC
Place of Origin :
China
MOQ :
2pcs
Price :
Negotiation
Payment Terms :
T/T, CC, Check, PP, Western Union
Supply Ability :
1000pcs/week
Delivery Time :
1-2days
Packaging Details :
Carton package, 2pcs/ctn, 17*17*17inch, 18.5lbs, 1636pcs/40HQ , 1396Ppcs/40GP, 974pcs/20GP
Product Name :
7G 200W LED UFO High Bay light
Model No. :
LS7EHB200WBCPD1
Input Voltage :
100-277Vac 50/60Hz
Lumen Efficiency :
130-146lm/W
Lumens output :
27000-29000LM
LED Chips :
SMD2835
LED Qty :
560 PCS
CRI :
>80Ra
Viewing Angle :
110D
Working Temperature :
-30℃-+45℃
Storage Temperature :
-40℃ TO 80℃
Power Factor :
>0.9
IP Rating :
WET IP65
Warranty :
5 years
Certificate :
UL, DLC
Description

7G LED UFO Highbay light 130lm/W Black 200W 1-10V dim 5000K 100-277Vac

Main Features:

  • UL DLC certificate
  • Input voltage 100-277Vac
  • No UV or IR in the beam
  • Easy to install and operate
  • Energy saving, long lifespan
  • Instant start, NO flickering, NO humming
  • Green and eco-friendly without mercury
  • Output constant current lever can be adjusted through output cable with 1-10V PWM Resistance three in one dimming.


Applications:

1. Gym, stadiums, golf courses,
2. Commercial establishments, overpasses, outdoor advertising board, landmarks;
3. Stage, yard, garden, lawn, park, plaza;
4. Supermarket, shopping mall, exhibition hall;
5. Ships, airports, subways, gas station, the train station, highway toll station, dock
6. Factory, office, meeting room, conference hall, storeroom, etc.


Basic Specification:

Product Specifications
Product name LED High Bay Light
Part No LS7EHB200WBCPD1
Dimension

Ф350x210 mm or Ф350x235 mm


Technical Characteristic

Color temperature 4000K 5000K 5700K
CRI >80
Cover Clear PC
Lumen

27000-29000LM
Viewing Angle 110D
Input Power 200W
Input Voltage 100-277VAC 50/60Hz
Driver Brand

China Brand Driver

(1-10V/PWM/Resistance three in one dimming )
Optional Accessory Motion Sensor/Surge-Protective Device
PF >0.9
Waterproof Rating WET (IP65)


Materials

LED Type 2835(0.5W)
LED QTY 560 PCS
Housing Aluminum
Housing color Any color
Cover PC cover


Others

Operating Temperature -40℃ TO 50℃
Operating Humidity 10％-90％ RH
Storage Temperature -40℃ TO 80℃
Storage Humidity 10％-95％
Application Indoor
Safety Certification UL, DLC
Warranty Time 5 Years


29000LM 200 Watt LED High Bay Light for Shopping Mall Lighting


Photometrics:

29000LM 200 Watt LED High Bay Light for Shopping Mall Lighting

29000LM 200 Watt LED High Bay Light for Shopping Mall Lighting


Product Dimension(mm):

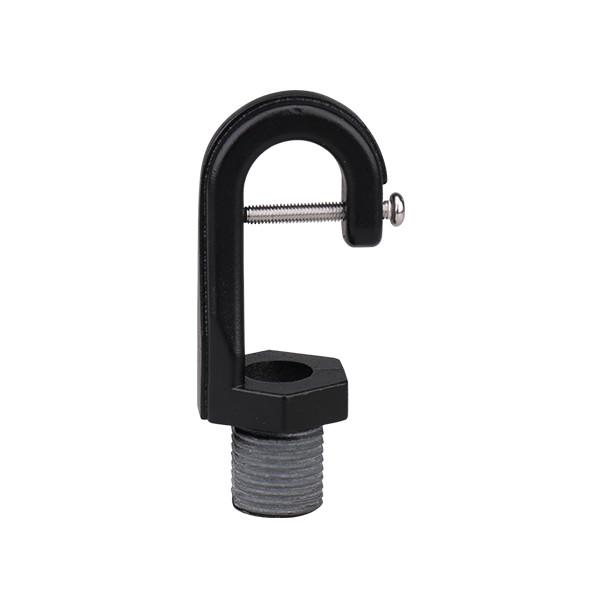

Item With open hook with U bracket
200W Φ350×210mm Φ350×235mm

29000LM 200 Watt LED High Bay Light for Shopping Mall Lighting

Package:

Size Qty / Carton Gross Weight / Carton
inner box 400*400*210mm 1 PC 5.4 KG
outer box 425*425*460mm 2 PC 11.4


29000LM 200 Watt LED High Bay Light for Shopping Mall Lighting


FAQ:

Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.


Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 30 days for order quantity more .


Q3. How do you ship the goods ?
A: By express, by air, by sea .


Q4. How to proceed an order for led light?
A: Firstly, let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, We arrange the production.


Q5. Is it OK to print my logo on products ?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Q6: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.


Warehouse introduction:
Ledsion Ligting has its own warehouse in Dallas, TX 75247, USA. Warehouse area up to 50,000 square feet. We have professional person responsible for warehouse operation. Professional after-sales service, and professional logistic team, can send out all the goods in the same day customer ordered.
29000LM 200 Watt LED High Bay Light for Shopping Mall Lighting
29000LM 200 Watt LED High Bay Light for Shopping Mall Lighting
