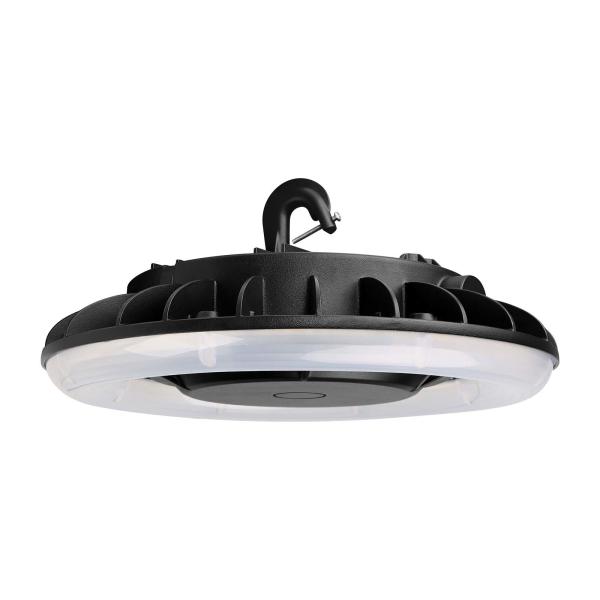

UL IP65 Black 126 LM/W 277V LED High Bay UFO Lights
UL IP65 Black 126 LM/W 277V LED High Bay UFO Lights
Specifications
Brand Name :
LEDSION
Model Number :
LS8EHB190W27V50K
Certification :
UL, DLC
Place of Origin :
China
MOQ :
2pcs
Price :
Negotiation
Payment Terms :
T/T, CC, Check, PP, Western Union
Supply Ability :
1000pcs/week
Delivery Time :
1-2days
Packaging Details :
Carton package, 1pcs/ctn, 17.5*17.5*6.5inch, 11.5lbs, 23200pcs/40HQ , 1980pcs/40GP, 955pcs/20GP
Product Name :
8G 190W LED UFO High Bay light
Model No. :
LS8EHB190W27V50K
Lumen Efficiency :
126lm/W
Lumens output :
24000LM
LED Chips :
SMD2835
LED Qty :
480PCS
CRI :
>80Ra
Input Voltage :
100-277VAC 50/60Hz
Viewing Angle :
120°
Working Temperature :
-30℃-+45℃
Storage Temperature :
-40℃ TO 80℃
Power Factor :
>0.9
IP Rating :
IP65
Color :
Black, dark brown, white
Warranty :
5 years
Certificate :
UL, DLC
Description

Factory LED UFO High Bay Lights 190W 5000K Shipping From USA Warehouse

LEDSION 8th generation LED UFO High Bay Lights With 5 Years Warranty Shipping From Dallas Stock. The lights use food grade aluminum housing, anti-corrosion painting IP65 design. High-performance illumination which can lasts 50,000HRS, Replace 200-600W MH/HPS.

Main Features:

1. Sealed die-casting profile for indoor and outdoor applictions.
2. Universal voltage of 120-277V & 347-480V.
3. Operating temperature is -40℃ to 50℃ (-40℉ to 122℉).
4. Best choice for replacing 400W MH and 600W MH.
5. Increase energy savings with bi-level motion sensor.
6. Above 80 color rendition index compared to HPS.
7. Hook mount, pendant mount and surface mount available.
8. Optional emergency battery to serve in accidental situation.

Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language;
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do OEM.


Basic Specification:

Model No. LS8EHB190W27V50K
Input Power 190W
Lumen 24000 lm
Lumen Efficiency 126 LM/W
Color Temperature 5000K
CRI >80
Viewing Angle 120°
Input Voltage 120-277VAC 50/60Hz
PF ≥0.9
THD ≤20%
Driver Brand China Brand Driver (1-10V dimming )
Optional Accessory Motion Sensor / Emergency Box
LED Type SMD2835
LED QTY 480pcs
Housing Aluminum
Housing Color Black, Dark bronze, White
Waterproof Rating WET(IP65)
Operating Temperature -40℃ TO 45℃
Storage Temperature -40℃ TO 80℃
Warranty Time 5 Years

Applications:

Suitable for commercial, retail and institutional applications including gymnasiums,factories and warehouses.
UL IP65 Black 126 LM/W 277V LED High Bay UFO Lights
Photometrics:
UL IP65 Black 126 LM/W 277V LED High Bay UFO Lights
Product construstion:

UL IP65 Black 126 LM/W 277V LED High Bay UFO Lights



Product Dimension(mm):

Item With open hook With U Bracket
190W

Φ396×180mm

 Φ396×187mm

UL IP65 Black 126 LM/W 277V LED High Bay UFO Lights


Package:

Model Carton Dimension Qty/Carton N.W G.W
190W

17.5”x17.5”x6.5”

435x435x155mm

 1PCS 9.28lbs(4.21kg) 11.5lbs (5.5kg)


Hook installation:

1. Remove line cord protector the open-type plastic grommet before installation.
2. Take out the hook from accessory package, thread the power cord through the hole of hook (make sure the gasket is kept inside of the hole of fixture for waterproofing).
3. Thread the hook into 3/4’’ hole on fixture tightly.
4. Thread the hook onto the desired place and tighten the screw to lock the hook. Connecting the wiring according to the wiring diagram. Then installation is done.

UL IP65 Black 126 LM/W 277V LED High Bay UFO Lights
Warehouse introduction:
Ledsion Ligting has its own warehouse in Dallas, TX 75247, USA. Warehouse area up to 50,000 square feet. We have professional person responsible for warehouse operation. Professional after-sales service, and professional logistic team, can send out all the goods in the same day customer ordered.
UL IP65 Black 126 LM/W 277V LED High Bay UFO Lights
