Outdoor White 26000LM 300W 5000K 480V LED Shoebox Light
Outdoor White 26000LM 300W 5000K 480V LED Shoebox Light
Outdoor White 26000LM 300W 5000K 480V LED Shoebox Light
Outdoor White 26000LM 300W 5000K 480V LED Shoebox Light
Outdoor White 26000LM 300W 5000K 480V LED Shoebox Light
Outdoor White 26000LM 300W 5000K 480V LED Shoebox Light
Outdoor White 26000LM 300W 5000K 480V LED Shoebox Light
Outdoor White 26000LM 300W 5000K 480V LED Shoebox Light
Specifications
Brand Name :
LEDSION
Model Number :
LS-ESBV7300WCT3A1
Certification :
UL, DLC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T, CC, PP, Check, Western Union
Supply Ability :
500pcs/week
Delivery Time :
1-2 days
Packaging Details :
Carton package, 1pcs/CTN, packing size: 32*15*7inch，weight: 22lbs
Product name :
300W Shoebox Light
Power :
300W
Light source :
Seoul SMD3030
Lamp luminous flux(lm) :
130lm/W
Lamp luminous efficiency(lm/w) :
26000lm
Ip rating :
IP65
Working temperature(℃) :
-40 - 50℃
Color temperature(cct) :
4000K 5000K 5700K
Beam angle :
Type 3
CRI :
>70Ra
Lamp body material :
die-casing aluminum housing
Working lifetime(hour) :
50000
Input voltage(v) :
480Vac
Application :
parking lot,square, street
Warranty(year) :
5 years
Housing Color :
White
Description

Outdoor lighting 300W LED Shoebox Light 5000K 480V White Color With 5 Years Warranty

Advantage:

  • UL, DLC certificate.
  • Seoul Chip, high CRI.
  • IP65 driver, input voltage 480VAC.
  • Output constant current lever can be adjusted through output cable with 1-10V.
  • No UV or IR in the beam.
  • Easy to install and operate.
  • Energy saving, long lifespan.
  • Light is soft and uniform, safe to eyes.
  • Instant start, NO flickering, NO humming.
  • Green and eco-friendly without mercury.

Specifications:

OPTICAL Input Power 300W
Lumen 37000-42000LM
Lumen Efficacy 125-140 LM/W
Color Temperature 4000K, 4500K, 5000K, 5700K
CRI >70
Viewing Angle 150*85 Degree(Type Ⅲ)
ELECTRICAL Input Voltage 480V
PF ≥0.9
THD ≤20%
Driver Model China Brand Driver SS-320V-54B
Optional Accessory Photocell / Surge protector/ Motion sensor
MATERIALS LED Brand SEOUL
LED Type SMD3030
LED QTY 308 PCS
Housing Aluminum Alloy
Housing Color white/Brown/ Black / Customized
Waterproof Rating WET(IP65)
OTHERS Operating Temperature -40℃ TO 45℃
Operating Humidity 10％-90％ RH
Storage Temperature -40℃ TO 80℃
Storage Humidity 10％-95％ RH
Warranty Time 5 Years

Photometrics:

Outdoor White 26000LM 300W 5000K 480V LED Shoebox Light

Outdoor White 26000LM 300W 5000K 480V LED Shoebox Light

Applications:

  1. Outdoor basketball court, tennis court.
  2. Badminton court, the football field.
  3. The school playground, stadium.
  4. Community leisure entertainment plaza, road lamp etc.
  5. Outdoor White 26000LM 300W 5000K 480V LED Shoebox Light

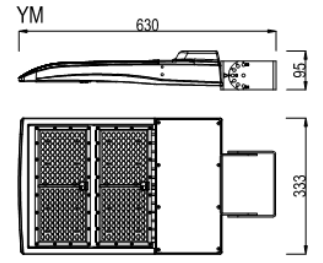

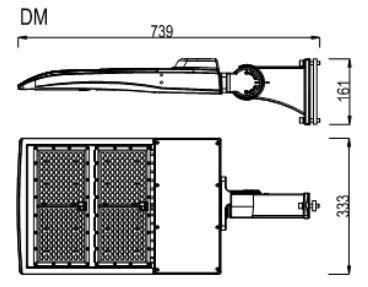

Product Dimension (mm):

Outdoor White 26000LM 300W 5000K 480V LED Shoebox LightOutdoor White 26000LM 300W 5000K 480V LED Shoebox LightOutdoor White 26000LM 300W 5000K 480V LED Shoebox Light

Package:

Stent Type Lamp Net Weight Size Qty / Carton Gross Weight / Carton
AM 8.7 KG 775 x 380 x 160mm 1 9.9 KG
DM 9.2 KG 775 x 380 x 160mm 1 10.4 KG
YM 8.4 KG 775 x 380 x 160mm 1 9.6 KG

Outdoor White 26000LM 300W 5000K 480V LED Shoebox Light

FAQ:

Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.


Q2. What about the lead time?
A: If our warehouse have the sample item you need,can ship out at the same day after payment.

If special sample order from factory, 7-10days sample time.


Q3. How do you ship the goods ?
A: By express or truck with pallet from USA mainland, by express, by air or by sea from China factory.


Q4. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.


Q5. Is it OK to print my logo on products ?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Q6: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.

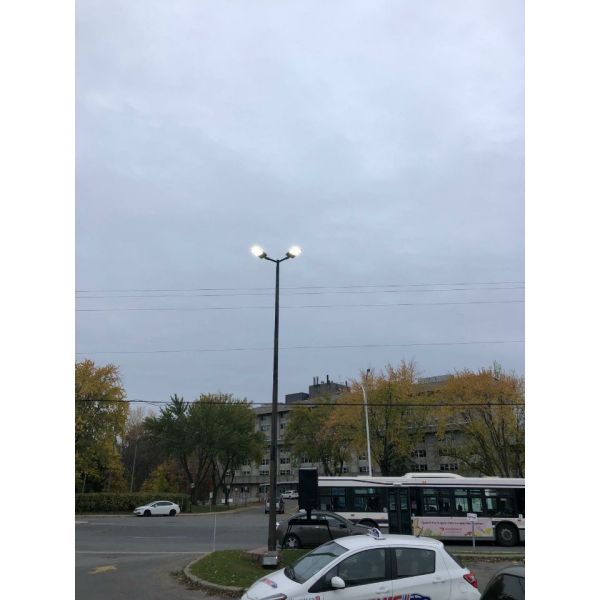

Customer image:

Outdoor White 26000LM 300W 5000K 480V LED Shoebox Light

Dallas Warehouse Introduction:

Ledsion Lighting have its own warehouse in the United States, Located in Dallas, TX 75247. Warehouse area up to 50,000 square feet.

Outdoor White 26000LM 300W 5000K 480V LED Shoebox Light

Outdoor White 26000LM 300W 5000K 480V LED Shoebox Light

We have professional logistic team and after-saels service team there. Can help you to ship out the goods in the same day and provide high quality after-sales service.

Outdoor White 26000LM 300W 5000K 480V LED Shoebox LightOutdoor White 26000LM 300W 5000K 480V LED Shoebox Light
