0.4 Inch LED SMD Display 7 Segment For Instruments Digital Clock
0.4 Inch LED SMD Display 7 Segment For Instruments Digital Clock
Specifications
Brand Name :
Interled
Model Number :
BD4-40XXX-XX2
Certification :
RoHS
Place of Origin :
China
MOQ :
2000
Payment Terms :
T/T
Supply Ability :
500KK per month
Delivery Time :
3-4 weeks
Packaging Details :
Carton box
Color :
White, Red, Blue...All colors
Mounting :
THT (Through-Hole Technology)
Function :
Graphics
Common pin :
Common anode/cathode
Lifetime :
50000Hrs
OEM or ODM :
Yes
Applicaiton :
Mounting on PCB or sockets
Waterproof :
Indoor
Description

Four digits, 0.4 inch digit, 7-segment diplay, common anode or common cathode.

THT Four digits 7 segment led display

a, Black or grey surface with white diffuse

b, Colors: all colors

c, Digit height: 0.4"

d, Customized requirements can meet.

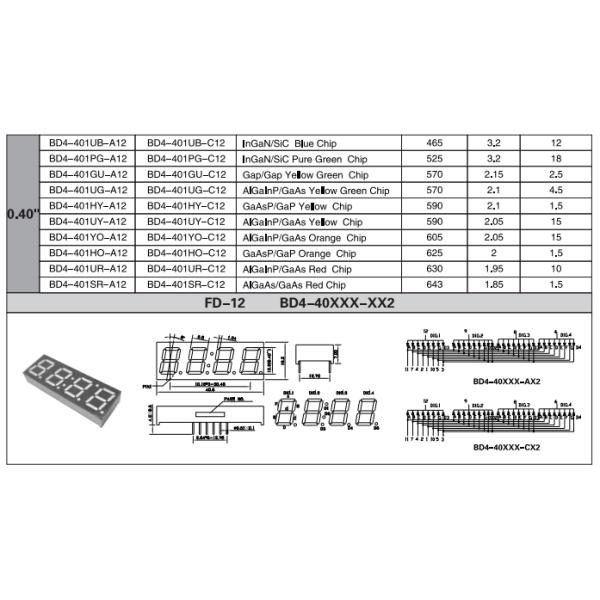

THT Four digits 7 segment led display selection guide

Part Number Chip

Electro-optical Data

(At 10mA)
Common Anode Common Cathode Material/Emitted Color Wave Length λD(nm) VF (V) Iv.Typ. Per.Seg. (mcd)
Typ.
BD4-401UB-A11 BD4-401UB-C11 InGaN/SiC Blue Chip 465 3.2 12
BD4-401PG-A11 BD4-401PG-C11 InGaN/SiC Pure Green Chip 525 3.2 18
BD4-401GU-A11 BD4-401GU-C11 Gap/Gap Yellow Green Chip 570 2.15 2.5
BD4-401UG-A11 BD4-401UG-C11 AlGaInP/GaAs Yellow Green Chip 570 2.1 4.5
BD4-401HY-A11 BD4-401HY-C11 GaAsP/GaP Yellow Chip 590 2.1 1.5
BD4-401UY-A11 BD4-401UY-C11 AlGaInP/GaAs Yellow Chip 590 2.05 15
BD4-401YO-A11 BD4-401YO-C11 AlGaInP/GaAs Orange Chip 605 2.05 15
BD4-401HO-A11 BD4-401HO-C11 GaAsP/GaP Orange Chip 625 2 1.5
BD4-401UR-A11 BD4-401UR-C11 AlGaInP/GaAs Red Chip 630 1.95 10
BD4-401SR-A11 BD4-401SR-C11 AlGaAs/GaAs Red Chip 643 1.85 1.5

0.4 Inch LED SMD Display 7 Segment For Instruments Digital Clock
