Specifications
Brand Name :
Leding
Model Number :
M3W-J1B-XX-L1
Certification :
CE
Place of Origin :
China
MOQ :
2000
Payment Terms :
T/T
Delivery Time :
3-4 weeks
Packaging Details :
Carton box
CCT :
6500K/4500K/3000K/2700K
Voltage :
12V DC
Power :
0.72w/Module
Beam Angle :
120°
Waterproof :
IP66
Description

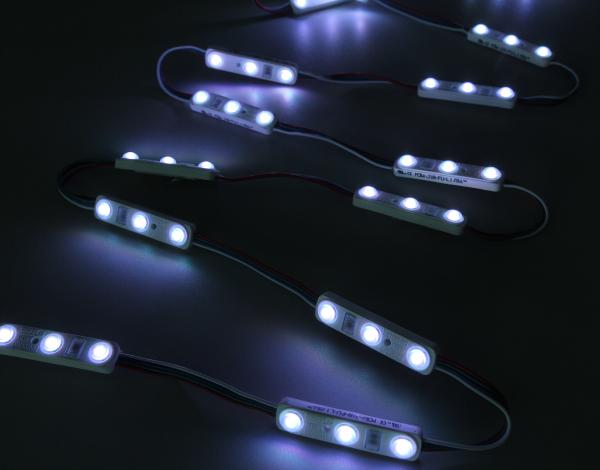

Cool White And Warm White Color LED Modules For Marquee Letters

Each M3W module features three LEDs and produces 40 lumens — great light coverage for channel letters, box signs and cove lighting. It is available in different CCT. It has an IP66 rating and a 3-year warranty.

Technical feature

-60 modules per chain

-The maximum length of the entire chain is 9.1m(pitch is 152mm)

-Mounting with mounting holes and adhesive tape

-Optical operation on 12V power supplies (15modules/15W,30modules/30W,60modules/60W)

Product number Color No.of led module per chain Power supply(VDC) Power chain/module(W) View angle(°)

Wavelength(nm)/

Color temp(K)

Lum.flux

Chain/module(lm)

M3W-S6B-27-L1 Warm white 50 12 60/1.2 160 2700K 4250/85
M3W-S6B-30-L1 Warm white 50 12 60/1.2 160 3000K 4250/85
M3W-S6B-45-L1 Nature white 50 12 60/1.2 160 4500K 5000/100
M3W-S6B-65-L1 Cool white 50 12 60/1.2 160 6500K 5000/100

120 Degree Warm White Led Module 12v 2700K CCT IP66 Waterproof

120 Degree Warm White Led Module 12v 2700K CCT IP66 Waterproof
