Grey Surface LED Dot Matrix Display With White Red Blue Color OEM ODM
Grey Surface LED Dot Matrix Display With White Red Blue Color OEM ODM
Specifications
Brand Name :
Interled
Model Number :
BM5-5721XX-XXX1
Certification :
RoHS
Place of Origin :
China
MOQ :
2000
Payment Terms :
T/T
Supply Ability :
500KK per month
Delivery Time :
3-4 weeks
Packaging Details :
Carton box
Color :
White, Red, Blue...
Mounting :
THT (Through-Hole Technology)
Function :
Graphics
Colour :
All colors
Common pin :
Common anode/cathode
Made in :
China
Lifetime :
50000Hrs
OEM or ODM :
Yes
Applicaiton :
Indoor
Description

5X7 LED Dot Matrix Display

Common anode or cathode

a, Black or grey surface with white diffuse

b, Colors: red(640nm),yellow green (572nm),pure green(525nm),yellow(590nm),blue(430nm), pure blue(470nm).

c, Digit height: 2.1"

d, Customized requirements can meet.

Application

a. Digital information

b. LED message display board.

c. Instruments, digital clock & toys

d. Mark, domestic appliance and other household electrical appliances.

e. The image display and instructions

f. Customized LED panel displays.

g. General use.

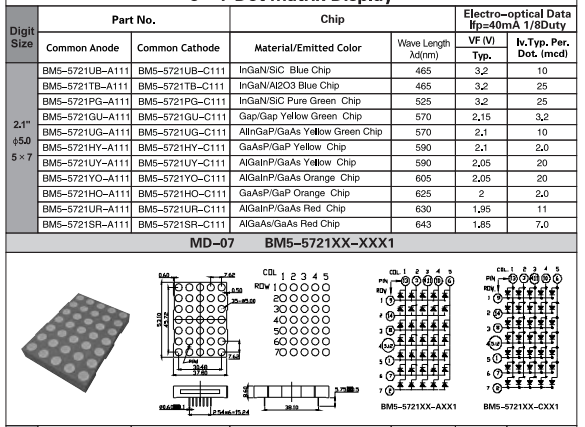

5×7 Dot Matrix Display
Digit Size Part No. Chip Ifp=40mA 1/8Duty Drawing No.
Common Anode Common Cathode Material/Emitted Color Wave Length λD(nm) VF (V) Iv.Typ. Per.Dot. (mcd)
Typ.
2.1inch ￠5.0 5×7 BM5-5721UB-A111 BM5-5721UB-C111 InGaN/SiC Blue Chip 465 3.2 10 MD-07
BM5-5721TB-A111 BM5-5721TB-C111 InGaN/Al2O3 Blue Chip 465 3.2 25
BM5-5721PG-A111 BM5-5721PG-C111 InGaN/SiC Pure Green Chip 525 3.2 25
BM5-5721GU-A111 BM5-5721GU-C111 Gap/Gap Yellow Green Chip 570 2.15 3.2
BM5-5721UG-A111 BM5-5721UG-C111 AlInGaP/GaAs Yellow Green Chip 570 2.1 10
BM5-5721HY-A111 BM5-5721HY-C111 GaAsP/GaP Yellow Chip 590 2.1 2.0
BM5-5721UY-A111 BM5-5721UY-C111 AlGaInP/GaAs Yellow Chip 590 2.05 20
BM5-5721YO-A111 BM5-5721YO-C111 AlGaInP/GaAs Orange Chip 605 2.05 20
BM5-5721HO-A111 BM5-5721HO-C111 GaAsP/GaP Orange Chip 625 2 2.0
BM5-5721UR-A111 BM5-5721UR-C111 AlGaInP/GaAs Red Chip 630 1.95 11
BM5-5721SR-A111 BM5-5721SR-C111 AlGaAs/GaAs Red Chip 643 1.85 7.0
