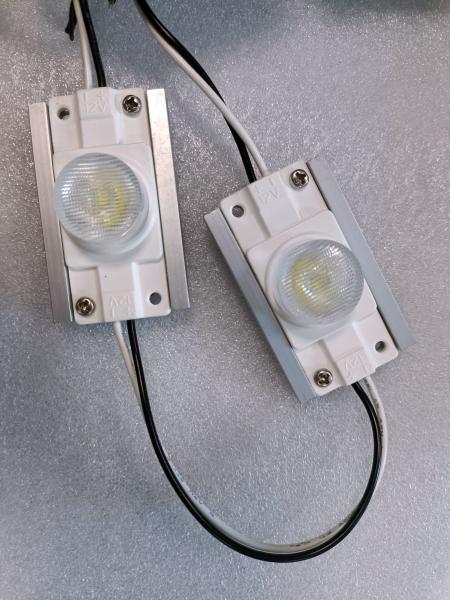

IP65 Waterproof White Led Module 12 Volt With 30000 Hours Lifetime
IP65 Waterproof White Led Module 12 Volt With 30000 Hours Lifetime
Specifications
Brand Name :
Leding
Model Number :
M1S-J5A-XX-L1H
Certification :
CE
Place of Origin :
China
MOQ :
2000
Payment Terms :
T/T
Delivery Time :
3-4 weeks
Packaging Details :
Carton box
Color :
Cool white Nature white Warm white
Voltage :
12V DC
Power :
1.4w/Module
Beam Angle :
20*40
Waterproof :
IP65
Lifetime :
30000 hrs
Description

white color channel letter LED modules​

Description

High reliability-Low power requirement

No UV or IR radiation

IP65 water proof

Operating temperature range -20C--60C

Easy assembly

Features

-15 modules per chain
-The maximum length of the entire chain is 3.2m(pitch is 195mm)
-Mounting with mounting holes and adhesive tape
-Optical operation on 12V power supplies

​

Electrical/Optical Characteristics Rating (Ta=25℃)

Specifications
Product name LED Module Chain
Part No. M1S-J3A-XX-L1H
CCT 6500K
Colour Rendering Index(CRI) >=80
Input Voltage 12VDC
Power
chain/module(W)		 42/1.4
Lumen Output 210/module
Beam Angle 20*40
Life Span 30000hrs
Operating Temperature -20℃-+60℃
Storage Temperature -40℃-+80℃
Application Outdoor(IP65)
Dimmable Yes
RoHS Yes
Material
LED Brand Epistar
Housing Plastic+AL
PCB FR4

Selection Guide

Product number

Color

 No.of led module per chain

Power supply (VDC)

Power chain/module(W)

View angle (°)

Wavelength(nm)/ Color temp(K)

Lum.flux Chain/module(lm)
M1S-J5A-27-L1H Warm white 15 12 37.5/2.5 20*40 2700K 3150/210
M1S-J5A-30-L1H Warm white 15 12 37.5/2.5 20*40 3000K 3150/210
M1S-J5A-45-L1H Nature white 15 12 37.5/2.5 20*40 4500K 3150/210
M1S-J5A-65-L1H Cool white 15 12 37.5/2.5 20*40 6500K 3150/210
