Specifications
Brand Name :
LCD-CESP brand
Model Number :
LCD-BHD6610-063/065-LNXXXX
Certification :
CE RoHs SAA ETL UL ATEX IECEx UL844
Place of Origin :
SHENZHEN, CHINA
MOQ :
1pcs
Price :
usd
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
5000 piece/ month
Delivery Time :
5-12 work day
Packaging Details :
Carton box
Led chip :
SMD3030 or SMD 5050
Power :
65W 80W 100W 120W 150W 200W 250W 300W
Material :
Die-cast aluminum + Tempered glass
Product name :
Outdoor Waterproof IP67 Aluminum 65W 80W 100W 150W Ex LED Flood Light for hazardous location lighting
Application :
oil & gas industrial area,Garden,park,Sports Stadiums,LANDSCAPE,Out Wall
Warranty :
5 years
Description

65 watt flood light led,IP67,240V,160lumen/W, 6500K,50/60Hz,Ex light Zone 1 & 21

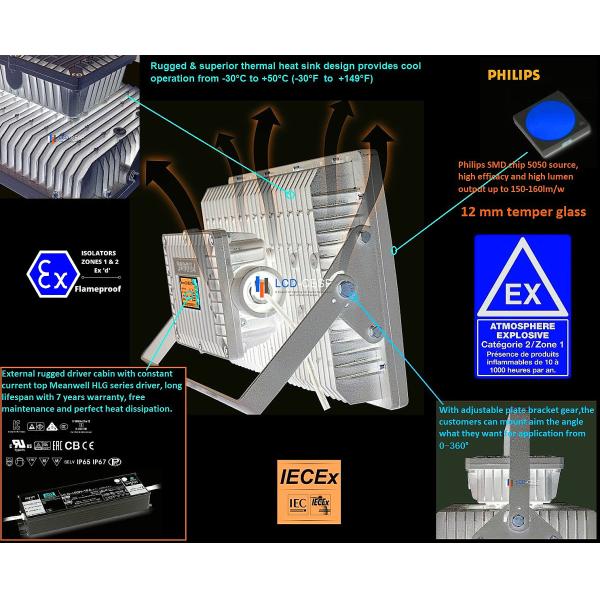

Features and benefits
1. Energy saving. Reduce the number of luminaires needed,providing excellent luminaries efficacy and more light.
2. Shock and vibration resistant 12mm tempered glass, reduces the risk of premature failure.
3. LUMILEDs LED source. High efficacy lumen output and high CRI.
4. Driver module assembly High efficacy top Meanwell HLG series LED drivers are designed to provide reliable operation in even the
harshest environments.

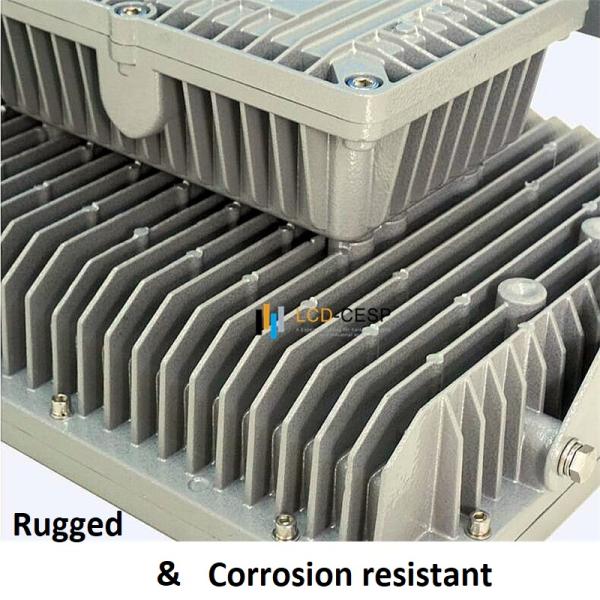

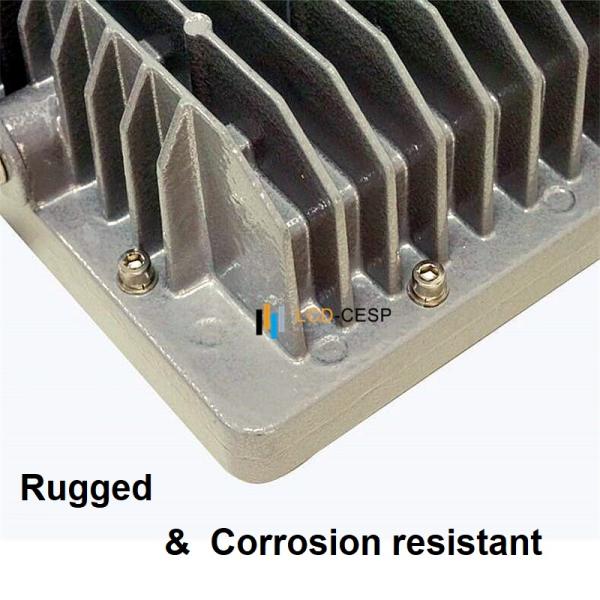

5. High strength aluminum alloy housing,IP66, can be used in wet locations, robust construction suitable corrosive applications.
6. Adjusting plate, customer can adjust different mounting angles.
7. 50W, 80W,100W,120W,150W, 200W, 250W available. Optional luminous intensity. distribution for different applications.
8. L70 rated for >100, 000 hours @25ºC.
9. Waterproof IP66 and IK code:IK09
10. Ambient temperature from -30ºC to +50ºC.

General information

Product type Size (mm) Weight(kg) Ambient temp.(ºC) Max.surface temp. ( test in 25ºC) Temp.classification IP code Insulation IK code
LCD-BHD6610-50-LNXXX 330x255x166mm 10KG - 30ºC~+ 50ºC 42 T5-T6 IP66 I IK09
LCD-BHD6610-80-LNXXX 330x255x166mm 10KG - 30ºC~+ 50ºC 43 T5-T6 IP66 I IK09
LCD-BHD6610-100-LNXXX 330x255x166mm 10KG - 30ºC~+ 50ºC 45 T5-T6 IP66 I IK09
LCD-BHD6610-120-LNXXX 446x306x166mm 14.5KG - 30ºC~+ 50ºC 46 T5-T6 IP66 I IK09
LCD-BHD6610-150-LNXXX 446x306x166mm 14.5KG - 30ºC~+ 50ºC 46 T5-T6 IP66 I IK09
LCD-BHD6610-200-LNXXX 446x306x166mm 14.5KG - 30ºC~+ 50ºC 46 T5-T6 IP66 I IK09
LCD-BHD6610-250-LNXXX 520x360x200mm 20.6KG - 30ºC~+ 50ºC 45 T5-T6 IP66 I IK09
LCD-BHD6610-300-LNXXX 520x360x200mm 20.6KG - 30ºC~+ 50ºC 46 T5-T6 IP66 I IK09

Certifications & Ratings

· Ex nR IIC T5 or T6 Gc
· Ex tc lllC T95ºC or T85ºC Dc IP 66
· ATEX Compliant
· ABS Compliant
· CE Compliant
· RoHS Compliant
· IP 66 Rated


Performance patameter

Electrical parameters
Product type Rated input voltage Rated input current Voltage frequency Rated power LED input current PF THD
LCD-BHD6610-50-LNXXX 100~277VAC 1~0.21 50/60Hz 50W 600mA >0.98 <10%
LCD-BHD6610-80-LNXXX 100~277VAC 1~0.32 50/60Hz 80W 600mA >0.98 <10%
LCD-BHD6610-100-LNXXX 100~277VAC 1.1~0.37 50/60Hz 100W 600mA >0.98 <10%
LCD-BHD6610-120-LNXXX 100~277VAC 1.4~0.45 50/60Hz 120W 600mA >0.98 <10%
LCD-BHD6610-150-LNXXX 100~277VAC 1.65~0.5 50/60Hz 150W 600mA >0.98 <10%
LCD-BHD6610-200-LNXXX 100~277VAC 1.9~0.85 50/60Hz 200W 600mA >0.98 <10%
LCD-BHD6610-250-LNXXX 100~277VAC 1.85~0.78 50/60Hz 250W 600mA >0.98 <10%


Photometric parameters

Optical data
Product type Color temp. CRI CCT(K) luminous flux(lm) Beam angle(°)
LCD-BHD6610-50-LNXXX warm / Neutral / cool 83/80/72 3000k / 4000K / 6500K 7750 30°/60°/90°/110°/TYPE2/TYPE3/asymmetric 40°
LCD-BHD6610-80-LNXXX warm / Neutral / cool 83/80/72 3000k / 4000K / 6500K 12400 30°/60°/90°/110°/TYPE2/TYPE3/asymmetric 40°
LCD-BHD6610-100-LNXXX warm / Neutral / cool 83/80/72 3000k / 4000K / 6500K 15500 30°/60°/90°/110°/TYPE2/TYPE3/asymmetric 40°
LCD-BHD6610-120-LNXXX warm / Neutral / cool 83/80/72 3000k / 4000K / 6500K 19200 30°/60°/90°/110°/TYPE2/TYPE3/asymmetric 40°
LCD-BHD6610-150-LNXXX warm / Neutral / cool 83/80/72 3000k / 4000K / 6500K 24000 30°/60°/90°/110°/TYPE2/TYPE3/asymmetric 40°
LCD-BHD6610-200-LNXXX warm / Neutral / cool 83/80/72 3000k / 4000K / 6500K 32000 30°/60°/90°/110°/TYPE2/TYPE3/asymmetric 40°
LCD-BHD6610-250-LNXXX warm / Neutral / cool 83/80/72 3000k / 4000K / 6500K 40000 30°/60°/90°/110°/TYPE2/TYPE3/asymmetric 40°
LCD-BHD6610-300-LNXXX warm / Neutral / cool 83/80/72 3000k / 4000K / 6500K 48000 30°/60°/90°/110°/TYPE2/TYPE3/asymmetric 40°

Characteristic details

6500K IP67 LED Flood Light

Candela distribution

6500K IP67 LED Flood Light

INSTALLATION METHOD

6500K IP67 LED Flood Light

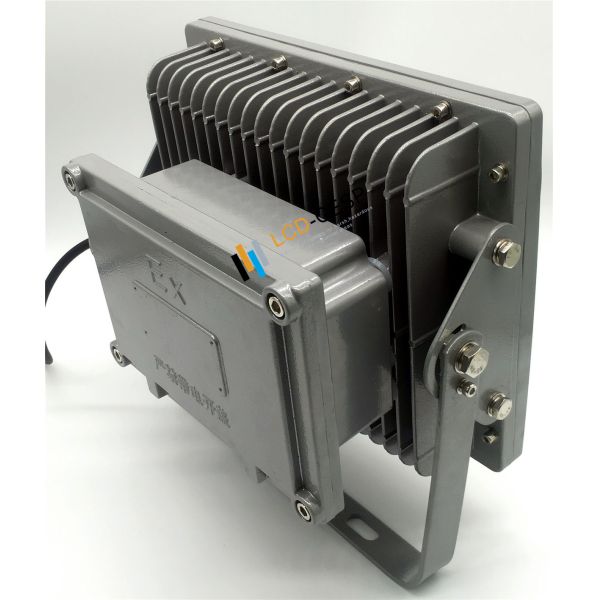

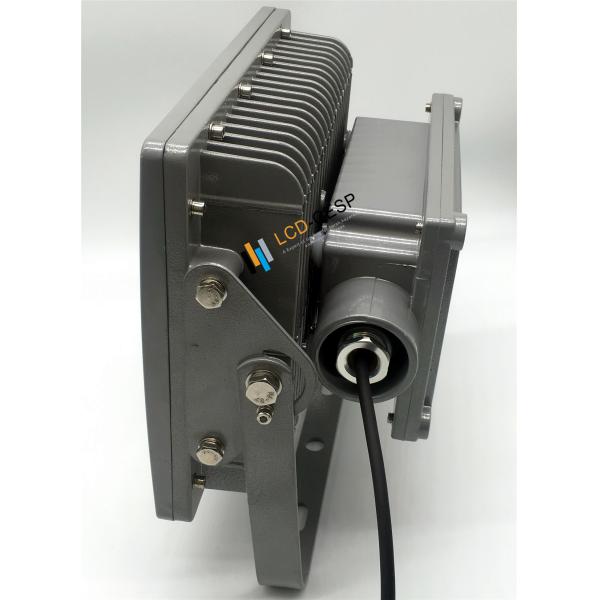

Product Photos
6500K IP67 LED Flood Light

6500K IP67 LED Flood Light

6500K IP67 LED Flood Light

6500K IP67 LED Flood Light

6500K IP67 LED Flood Light
