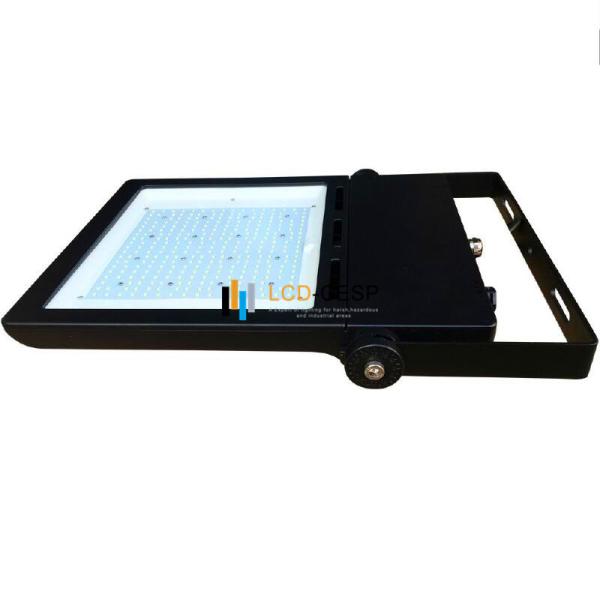

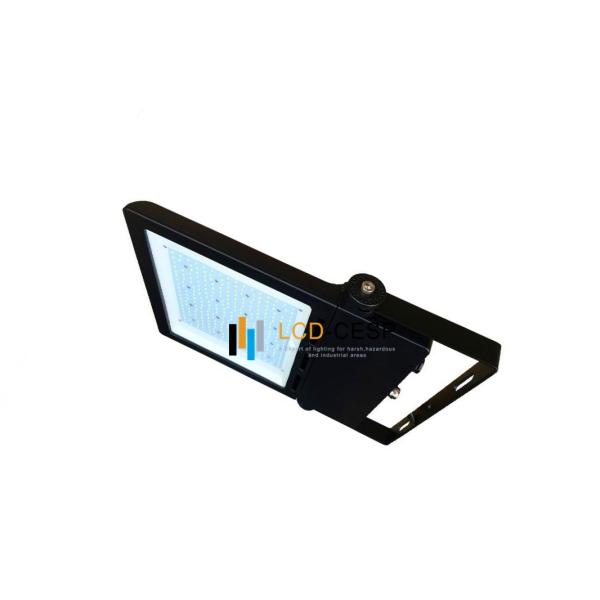

Outdoor Tennis Field SMD 5050 200W IP67 LED Flood Light

High Lumen output 150lm/w waterproof IP67 LED Flood Light 200W for tennis field

Product information
The Ocean FA series LED outdoor luminaire delivers outstanding features such for Marine grade, style and attractive form factor. This tough robustly and professional excellent heat-sink housing effective thermal management and modern design offers perfect efficacy even at higher lumen outputs with photometric versatility.to meet a wide range of area lighting needs and guaranteeing a long, maintenance-free service life for outdoor harsh location applications such as Maritime and Mining . Using precise optic lenses technology, OCEAN FA series offers superior horizontal and vertical illuminance with high uniformity, while minimizing glare as fixture lumens increase. This system delivers unusually high efficiency heat dissipation function when even under extreme thermal conditions.The OCEAN FA series provides reduced energy consumption, combined with a long rated life that virtually eliminates ongoing maintenance expenses, enabling significant operating cost benefits over the life of each fixture.

Application areas
• Tunnels & large area
• High mast applications
• Roundabouts
• Industrial & Maintenance
• Car Park & billboard
• Sport facilities
• fishing boat & vessel
• cold storage & warehouse
• Logistical areas: airports, ports, trains
• Mining
• construction site

Driver features
• Electronic dimmable driver: Dali, Traci
• Minimum dimming level: 1-10V

Structures and materials (HOUSING AND FINISH)
• Housing material:die-cast and sheet metal aluminium body,stainless steel screws and brackets
• Housing surface finish:polyester powder coat
• Standard colour(s):black RAL9007
• Optic:UV protected Polycarbonate lens
• Protector:tempered low-iron glass
• Tightness level:IP67
• Impact resistance:IK 08
• All materials used in this product are CE and ROHS compatible.

Performance
• Rated luminous flux range: 11,600 to 53,475 lm
• Rated luminaire efficacy: Up to 155lm/W
• Rated median useful life and the associated rated LM factor
L80B50: > 110.000 hours
• Rated abrupt failure value: 10.79%
• Photometric code: 840/449, 765/449
• Lumen maintenance code: 9
• Rated ambient temperature (tq) related to performance for
a luminaire: 25°C
• Rated median useful life and the associated rated LM factor:
L80B10 > 105.000 hours
*Definitions and tolerances according to IEC62722-2-1:2014

Installation and maintenance
Mounting options:
• Adjustable stirrup & Bracket
• Weight: 15kg
• Recommended mounting height: 5-40 m
• Ambient operating temperature: -40°C to +50°C
• Storage temperature: up to 85°C

Product cut sheet

Optics Information
Typical photometrical features
LED colour temperature:
3000K (Warm White)
4000K (Neutral White)
6500K (Cool White)
Colour rendering index (CRI):
>80 (Warm White)
>80 (Neutral White)
>75 (Cool White)
Upward Light Output Ratio (ULOR): 0%

Available photometric distributions:
• Asymmetric Forward
• Asymmetric Narrow
• Asymmetric Wide
• Asymmetric Extra Wide Flood
• Asymmetric Forward Throw Narrow
• Symmetrical Wide Flood
• Symmetrical Narrow Spot
• Symmetrical Wide
• Symmetrial Forward
Rated initial chromaticity co-ordinate values:
4000K - CIE(x= 0.38, y= 0.38) 5SDCM
6500K - CIE(x= 0.34, y= 0.35) 5SDCM

ELECTRICAL INFORMATION
Input voltage and frequency: 100-277VAC, 50-60Hz
• Electrical Class I EU
• Power factor >0.95
• Surge protection options (kV): 2KV / 4KV / 6KV
• Electromagnetic compatibility (EMC):EN 55015:2013/A1:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61547:2009, EN 62493:2015
• Control protocol(s) :1-10V, DALI

Standards and regulation
CE, Directive 2014/30/EU, 2014/35/EU ,2009/125/EC
1194/2012/EU, 2011/65/EU, EN 60598, EN 62471, EN 55015,
EN 61000-3-2, EN 61000-3-3, EN 62493, EN 61547.

Other options available
Optional precabling
Other RAL colours available on request

Product DIMENSIONS
AxBxC (mm ):

Weight (kg ):
