Wall Mount 50W 60W 80W 100W 120W Atex LED Flood Light

Hazardous Location LED Linear Luminaire

LCD-CES-EX-LN-01-240XXXX

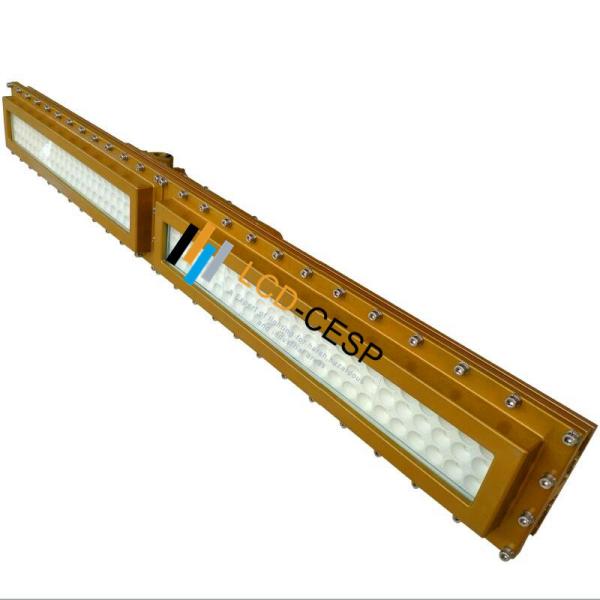

EXPLOSION PROOF light 240W,II 2G Ex db op is IIC,Zone 1&21,IP67,4000K,wall mount

LED Explosion proof Linear Light for hazardous location

The Cheetah Harsh & Hazardous Location linear LED luminaires is designed for installations where gas,vapor,dust, stive,moisture,dirt, corrosion and vibration may be present.

For use in locations made hazardous by the presence of flammable vapors or gases as defined by the NEC, Proteus fixtures are available in Zone 1 & 21 or Zone 2 & 22,class C1D2.

In 50W with 617mm length to in 240W with 1235mm length. Cheetah Series is ideal for retrofit of existing HPS/MH & FL and offers higher efficacy for increased energy savings, lower
maintenance costs and shorter paybacks.This explosionproof linear LEDs also are specifically designed to replace fluorescent T12, T8 and T5HO lighting in Zone 1 & 21 and Zone 2 & 22

areas. The rugged and durable design features the industry’s most versatile and flexible mounting options. The Cheetah Harsh & Hazardous Location LED Luminaire is the ideal lighting

solution for hazardous, high vibration, impact and hose down applications.

Key features & benefits:

1. Energy saving. helping customers reducing the number of luminaires they need, and providing excellent efficacy-more light where they want to. Industry-leading efficacy: up to 120lm/W
2. Wide and narrow different optics for uniform illumination and applications and anti-glare design reducing glare for working people who might directly visual contact with the light source.
3. Shock- and vibration-resistant- tempered glass , reduces the risk of premature failure and 5G 3-axis vibration.
4. Bridgelux LED source. High efficacy lumen output and high CRI and 5700-6500K, CCT, CRI>72
5. Meanwell top high quality driver assembly durable and steady - a long long life span and High efficiency and its LED drivers are designed to provide reliable operation in the definitely
harshest environments. 3-4kV surge protection and 7 year fixture warranty
6. Low profile fixture and four points of secondary retention and loop feed wiring and high-strength aluminum 6063 extruded enclousure, can endure 20-25J impact and 2,000 psi high pressure hose rated. Ip66 & 67,

can be used in marine and wet locations-robust construction suitable for saltwater and corrosive applications.
7. -40°C to +55°C ambient operating temperature (standard fixture only)

8. 5 year fixture warranty

9. Flush and swivel mount options

Applications:

1. Petroleum Industry, Petrochemical Industry, Metallurgical Industry, Power Generation Industry, Power Transmission Industry, Machine Manufacturing, Wastewater treatment, oil and gas refineries, drilling rigs,
petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, etc.
2. Drilling platform, single point moorings, oil tanks, workover platform, production platform, field tank, manifold center, pumping station, gasoline station, transformer station, coating plant ,warehouse .etc.
3. Group II Zone 1, Zone 21 or GroupIII Zone 2, Zone 22, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.

Why the Cheetah Harsh & Hazardous Location linear LED luminaires

Designed for brightness and safety . The Cheetah Harsh & Hazardous Location linear LED luminaires are engineered to stand up to the demanding conditions
faced in Zone 1 & 21 or Zone 2 & 22 hazardous areas. The Cheetah Harsh & Hazardous Location linear LED luminaires stands up to high vibration, hose down, shock and impact, while
delivering long life span and high lumen performance for up to 7 years.

Regular optics:
• Standard (110°) beam spread maximizes illumination on wall panels

Comprehensive certification:

• UL 844 & C1D2,C2D2,C3;

• Class I Division 2 Group A, B, C, D; UL1598A Marine (Salt Water);
• Wet Location; UL8750LED Safety;

• ATEX Ex mark: • II 2G Ex db op is IIC TS ... T6 Gb;
• II 2D Ex tb op is IIIC T94°C. .. T89°C...T84°C Db;
• IECEx Ex mark: • Ex db op is IIC T6 Gb;
• Ex tb op is I IIC T85 Db;
• IP66;

Slim and low profile:
• Less than 148mm fixture height.
• Perfect for mounting in confined spaces or low height areas

Quick & easy installation:
• Easy access to drivers and wiring
• No custom brackets or hardware needed
• three mounting options available

Built to last:
• Ingress protection from hose down water or diesel fuel in harsh operational conditions – passed 2,000 psi high pressure test
• Vibration, impact and shock-resistant – passed 5G, 3-axis vibration test
• 60,000 hour lifetime at 55°C ambient
• 100,000+ hour lifetime at 40°C and below

• Housing: Copper-free, anti-static extruded aluminum 6063 / stainless steel

• lens: 12 mm temper glass +PC reflector
• CCT: 3000K, 4000K, 6500K
• Input Voltage: 100-240/277 VAC or 12-24VDC
• Surge Protection: 2-4 kA surge protector
• Operating temperature: -40° to 122°F (-40°C to 50°C)
• Installation: Easy installation with three mounting options: Ceiling, Wall/Stanchion, and Hanging
Chain. Included mounting bracket is drilled for legacy bolt patterns
• Access Ports: Two at 3/4” NPT
• Finish: Gray or orange polyester powder coat
• FCC: Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions

• Available from 50W (≥5,500lm ) to 240W ( ≥26,400lm )
• Type II, III, IV, V and Forward Throw distributions
• 1-10V Dimming, available
• Motion sensor, photocell and Controller options available
• 50,000+Hours LED lifespan

Mounting :
Versatile mounting options:
• Flush mount
• Swivel/surface mount
• Pole mount

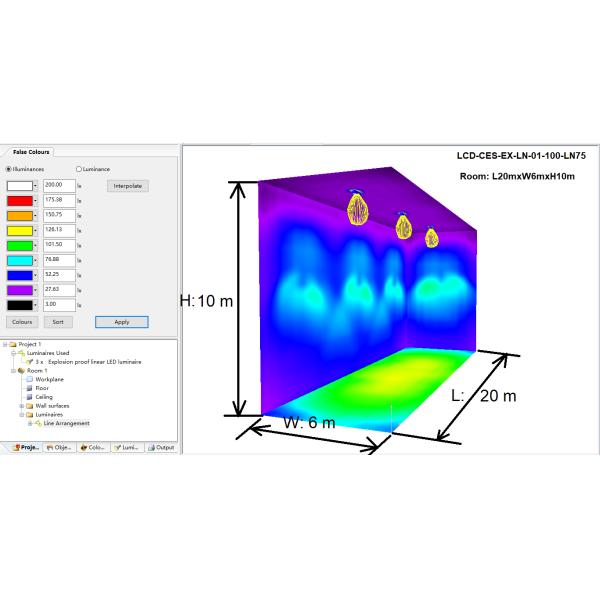

Photometrics

Electrical ratings:

Specifications
UL:Suitable for wet locations Operating temperature: -40°C to +50°C (-40°F to 122°F). LEDs: Long-life, high-efficiency, micro-power, surface mount LEDs.
Drivers(s):Class 2, 50/60Hz. 100 - 277V, 4kV standard, 6kV optional surge protection. Lifespan:50,000+hour LED lifespan based on IES LM-80 results & TM-21 calculations at 25°C. IP Rating:Ingress Protection rating of NEMA 4/4X (IP66) for dust and water. Housing: Die-cast aluminum housing. Mounting: U-Bracket, slipfitter or wall mount options available. Lens:High transmittance tempered glass. Effective Projected Area: EPA = 0.61. Vibration Rating: 3G vibration tested per ANSI C136.31
Dimming Driver: Driver includes dimming control wiring for 1-10V dimming systems. Requires separate 1-10V DC dimming circuit. Dims as low as 10%.(Optional
dimming and non-dimming). CCT: Available in 2700K ~ 6500K color temperature. CRI: Minimum CRI of ≥70.Beam angle: Standard distribution is NEMA high/low bay
lights (Type6). Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-years period. Color Uniformity:LCD-CES's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017. Finish: Formulated for high durability and long-lasting color. Green Technology: Mercury and UV free. RoHS-compliant components. IESNA LM-79 Testing: LCD LED luminaires have been tested by an independent laboratory in accordance with IESNALM-79.
