High Brightness 40W IP66 Explosion Proof LED Flood Light
High Brightness 40W IP66 Explosion Proof LED Flood Light
High Brightness 40W IP66 Explosion Proof LED Flood Light
High Brightness 40W IP66 Explosion Proof LED Flood Light
High Brightness 40W IP66 Explosion Proof LED Flood Light
High Brightness 40W IP66 Explosion Proof LED Flood Light
High Brightness 40W IP66 Explosion Proof LED Flood Light
High Brightness 40W IP66 Explosion Proof LED Flood Light
High Brightness 40W IP66 Explosion Proof LED Flood Light
High Brightness 40W IP66 Explosion Proof LED Flood Light
High Brightness 40W IP66 Explosion Proof LED Flood Light
High Brightness 40W IP66 Explosion Proof LED Flood Light
Specifications
Brand Name :
LCD-CESP brand
Model Number :
LCD-HLBD55-C/D-40W
Certification :
ATEX
Place of Origin :
SHENZHEN, CHINA
MOQ :
1pcs
Price :
usd
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 piece/ month
Delivery Time :
5-12 work day
Packaging Details :
Carton box
Application :
Zone 1 & 21 hazardous Location
Product Name :
Explosion proof led flood light
Voltage :
120V／220V／277V／480V AC
Color Temp :
6000k
Wattage (Amps) :
40W
Lumen Output :
4000lm
Beam Angle :
≧360°
Efficiency :
100~130lm/w
CRI :
> 70 (Cool White)
Description

High Brightness 40W IP66 Explosion Proof LED Flood Light

Explosion proof led flood light 40W 220V60Hz emergency time 60 minute IP66 IK10

Hazardous location:

Designed for the most demanding of applications, where high output ATEX rated industrial lighting is required. Typical applications include mining, chemical industry, oil & gas installations, hazardous waste landfill and waste water & sewer.

Models:
EX: ATEX rated luminaire, max. 20W
EX: ATEX rated luminaire, max. 30W

EX: ATEX rated luminaire, max. 40W

EX: ATEX rated luminaire, max. 50W

Available ATEX standards

Ex d IIC T6 Gb
Ex tD A21 IP66 T80

Features

  • Instant on crisp white light output
  • Highly Energy Efficient
  • 120,000 maintenance free hours at 25°C
  • Lower power consumption than HID lamps
  • Low temperature applications to -40°C

Main Technical Parameter

Rated voltage(V) AC220/230/240 Rated power(W) 20, 30, 40, 50
Protection grade IP66 Emergency time (min) 60/90
Corrosion-proof grade WF1, WF2 Charging time(h) 24
Inlet thread G3/4 Emergency light start time 0.3S
Cable outer dia.(mm) Φ10~Φ14 Ex-mark Ex d IIC T6 Gb
Ex tD A21 IP66 T80

*: Required when ordering.

High Brightness 40W IP66 Explosion Proof LED Flood Light

High Brightness 40W IP66 Explosion Proof LED Flood Light

Product description

1. Zone 1 and Zone 2, Group IIA, IIB, IIC explosive gas environment, and/or Zone 21, Zone 22 combustible dust environment;
2. Temperature class: T1~T6;
3. Indoor and outdoor (IP66);
4. Used in chemical industry, oil refining, petroleum exploitation, offshore oil platform,oil tanker, military and other dangerous places for lighting and emergency lighting during power failure.
High Brightness 40W IP66 Explosion Proof LED Flood Light
High Brightness 40W IP66 Explosion Proof LED Flood Light

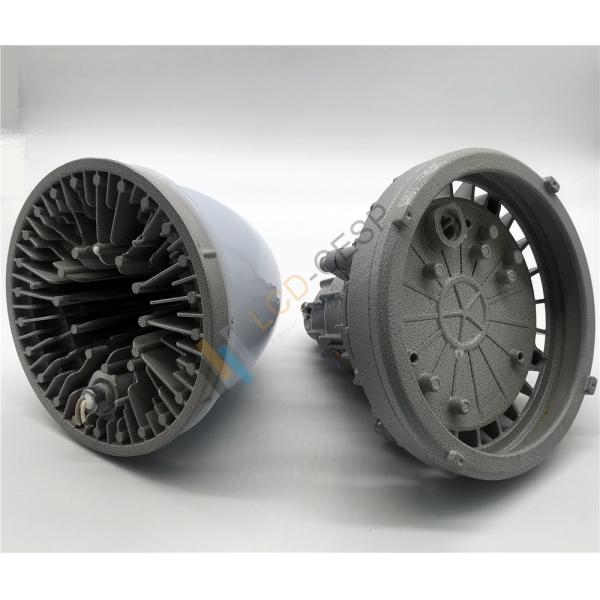

Diagram of cold and hot air moving in and out

High Brightness 40W IP66 Explosion Proof LED Flood Light

Distribution Curve

High Brightness 40W IP66 Explosion Proof LED Flood Light

LCD-HLBD55-C Outline and Installation Dimension

High Brightness 40W IP66 Explosion Proof LED Flood Light

LCD-HLBD55-D Outline and Installation Dimension

High Brightness 40W IP66 Explosion Proof LED Flood Light
