Aluminum 70W 150W 210W Industrial Outdoor Led Flood Lights
Aluminum 70W 150W 210W Industrial Outdoor Led Flood Lights
Aluminum 70W 150W 210W Industrial Outdoor Led Flood Lights
Aluminum 70W 150W 210W Industrial Outdoor Led Flood Lights
Aluminum 70W 150W 210W Industrial Outdoor Led Flood Lights
Aluminum 70W 150W 210W Industrial Outdoor Led Flood Lights
Aluminum 70W 150W 210W Industrial Outdoor Led Flood Lights
Aluminum 70W 150W 210W Industrial Outdoor Led Flood Lights
Aluminum 70W 150W 210W Industrial Outdoor Led Flood Lights
Aluminum 70W 150W 210W Industrial Outdoor Led Flood Lights
Aluminum 70W 150W 210W Industrial Outdoor Led Flood Lights
Aluminum 70W 150W 210W Industrial Outdoor Led Flood Lights
Specifications
Brand Name :
LCD-CESP brand
Model Number :
LCD-HYFSL-73
Certification :
CE RoHs SAA ETL UL TUV
Place of Origin :
SHENZHEN, CHINA
MOQ :
1pcs
Price :
usd
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 piece/ month
Delivery Time :
5-12 work day
Packaging Details :
Carton box
Ip rating :
IP65
Light source :
LED
Led light source :
Bridgelux,Lumileds,SMD
Input voltage(v) :
AC85-265V
Cri (ra>) :
80,70,75,85
Beam angle(°) :
60/90
Working lifetime(hour) :
50000
Lamp body material :
Die Casting Aluminum+PC,Aluminium Alloy + PC
Lamp luminous efficiency(lm/w) :
130,120,140
Power :
70W, 150W, 210W
Description

Aluminum 70W 150W 210W Industrial Outdoor Led Flood Lights

Aluminum Die Cast housing 70W 220VAC 50/60Hz symmetric beam 60/90 degree IP65

Our advantages:

1. Using brand LED chip and waterproof power supply.

2. Pure aluminum frame with good heat dissipation.

3. Use toughened glass and the light transmittance is about 93%.

4. High performance Constant Current driver, No flickering, fast starting.

5. Using different reflectors and lens to fix effective light beam angle accordingly, such as 90°, 120°, 140°

6. Waterproof Protection Grade: IP65

7. Earth wire connection for safety assurance.

8. Available with Sensor

9. Housing color: Black/Sliver

Suitable area of LED Floodlight:

led floodlight highly used in billboard lighting, family courtyard, corridor, shopping malls, sports venues, supermarkets, schools, hospitals, roads, building facade lighting, landscaping, lighting bar, ballroom, places of entertainment, hotels, villas, home decorative lighting, etc., due to its high color rendering, can also be used for jewelry appraisal, printing and dyeing, clothing, medical lighting, national defense work, scientific experiments, photography lighting, etc. It is the ideal choice to now replace the traditional halogen lamps

Operating and Electrical
Input Voltage 220-240 VAC or 110-277VAC
Input Frequency 50 or 60 Hz
Power Factor (Min) 0.95
Controls and Dimming on requests

Mechanical and Housing
Housing Material Aluminum Alloy ADC12 die cast
Reflector material -----
Optic material Polycarbonate
Optical cover/lens material Polycarbonate
Fixation material Carbon steel with corrosion proof powder coating
Mounting device Mounting bracket adjustable
Optical cover/lens shape -----
Optical cover/lens finish transparent or Frosted
Overall length 504 mm
Overall width 86 mm
Overall height 350 mm
Effective projected area 0.12m²
Color Aluminum and gray

Approval and Application
Ingress protection code IP66 [ Dust penetration-protected, jet-proof]
Mech. impact protection code IK09 [ >5 J vandal-protected]
Surge Protection (Common/Differential) Luminaire surge protection level until 3 kV

Initial Performance (IEC Compliant)
Initial luminous flux (system flux) 9100 lm
Luminous flux tolerance +/-10%
Initial LED luminaire efficacy 130 lm/W
Init. Corr. Color Temperature 3000K / 4000K / 6500K
Init. Color Rendering Index 75
Initial chromaticity SDCM<=5
Initial input power 70 W
Power consumption tolerance +/-10%

Application Conditions / Product Data
Ambient temperature range -30 to +50 °C
Maximum dim level on requests
Full product code LCD-HYFSL-073-LNXX-4K
Order product name LCD-LynxFS-Flood light 70W
Order code N
Numerator - Quantity Per Pack 1 pcs
Numerator - Packs per outer box 1 box
Material Nr. (12NC) N
Net Weight (Piece) 5.5KG

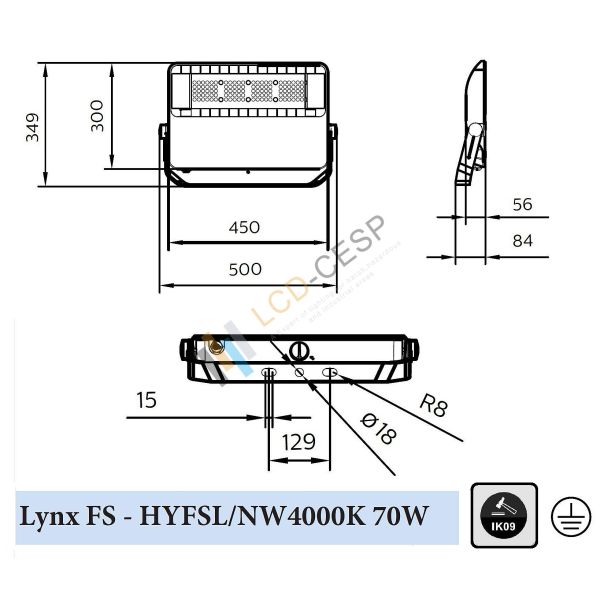

Dimensional drawing

Aluminum 70W 150W 210W Industrial Outdoor Led Flood Lights

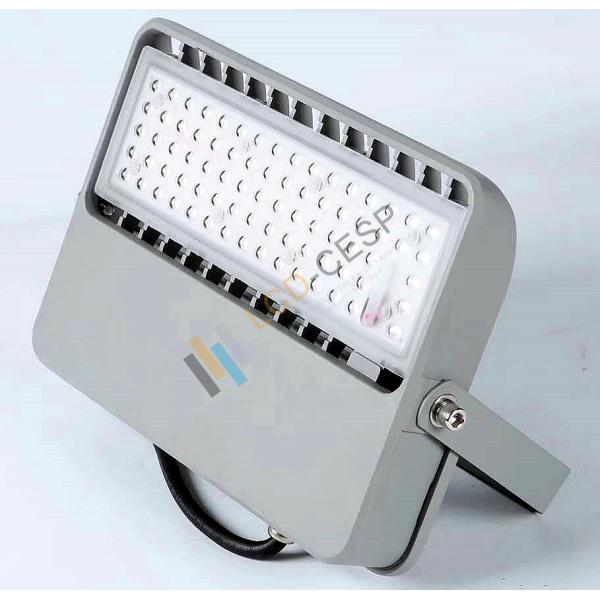

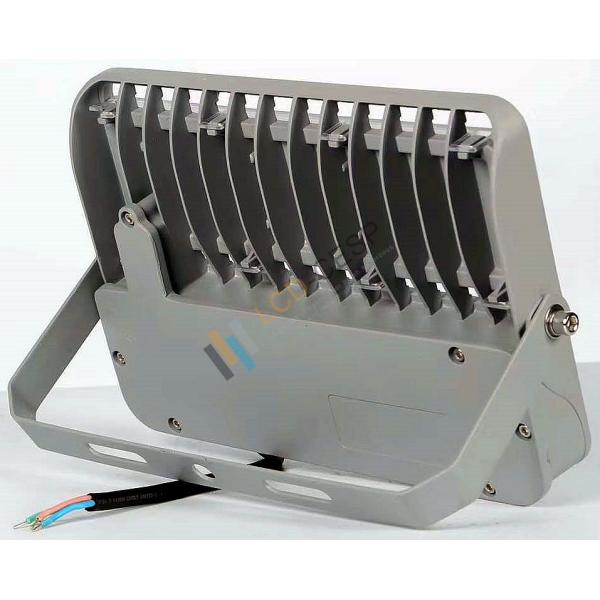

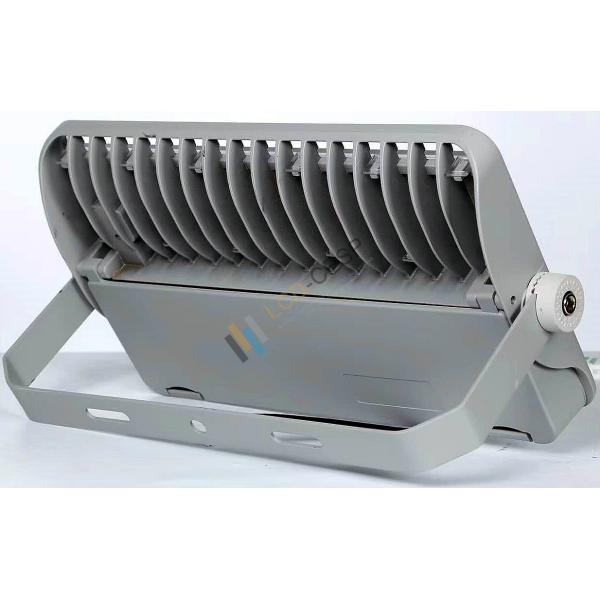

Product photo

Aluminum 70W 150W 210W Industrial Outdoor Led Flood Lights

Aluminum 70W 150W 210W Industrial Outdoor Led Flood Lights

Aluminum 70W 150W 210W Industrial Outdoor Led Flood Lights

Aluminum 70W 150W 210W Industrial Outdoor Led Flood Lights
