Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long
Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long
Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long
Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long
Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long
Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long
Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long
Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long
Specifications
Brand Name :
DUALRAYS
Model Number :
DR-TPL050-BG51
Certification :
CE,RoHS,TUV/GS,LM79,LM80
Place of Origin :
Shenzhen,China
MOQ :
8pcs
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
100000PCS/Month
Delivery Time :
5-15 business days
Packaging Details :
Neutral Package,color box package,8PCS/CTN,L1570xW360xH200mm
Rated Power :
50W
Power Factor :
PF>0.9
Lumen Maintenance @ 6000 hrs :
>90%
Switching Cycle before Failure :
100,000
Warranty :
5 years
Power Supply :
Boke
Description

Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long

Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long

D2 Series LED Tri Proof Light--Detailed Product Description

Model No.: D2 Series Beam Angle: 120°
Power: 50W Protection: IP66,IK10
Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver Plug: European / Australia plug with 0.75mm2/1.5mm2/
2.5mm2 3-pins or 5-pins (dimming) cable
Warranty: 5 Years Sensor(Optional): Daylight Sensor/ Microwave Sensor
D2 Series LED Tri Proof Light--Features
> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs,energy efficient - up to 160 lm/w;
> 1-10V dimming flicker-free driver;
> Single or Double wiring;
> IP66 and IK10 for all industrial areas of application;
> Eco full plastic light design,save your cost and freight;
> No UV or IR and completely mercury free;
> L80/B10 @ 50.000h;
> Sensor control avaliable;
> No toxic heavy metals, VOC, or mercury were used in the design;
> 5 years warranty;

D2 Series LED Tri Proof Light--Options:
> Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.
> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,microwave sensor,CCTadjustable,emergency.
> Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.

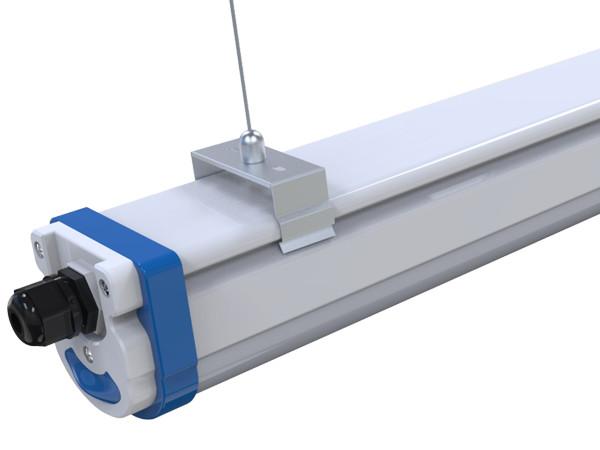

> Suspended/Surface mounted/Adjustable installation for option.
> Single or double wiring and connection.
> Customized supported for special projects.
> Sensor: Daylight Sensor/ Microwave Sensor.
Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long
* Replacement for fluorescent NCF
* Workshops and warehouse
* Garage and car parks
* Sport facility
* Corridor/Gallery/Corridor
* Outdoor & Indoor Locations

Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long
Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long

Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long

Character/Length
2ft
4ft
5ft
Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long
A
600mm
1200mm
1500mm
B
74mm
74mm
74mm
C
74m
74mm
74mm


Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long

Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long

Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long
Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long
Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long

Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long
(I) Emergency Function

Model No.
Emergency Time (Hours)
Emergency Power (W)
Battery Parameters
DR-TPL020-BG21
3/2/1 hours for option
10W
 7.4V/4400/3000/1500mAh Lithium Battery
DR-TPL040-BG41
3/2/1 hours for option
10W
11.1V/6000/4000/2000mAh Lithium Battery
DR-TPL050-BG51
3/2/1 hours for option
10W
 11.1V/8800/6000/3000mAh Lithium Battery


Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long
Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long

Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long
DALI Device
Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long

DALI Intelligent Control Diagram
Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long

DALI Intelligent Control Operator Interface
Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long
Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long
Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long

Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long
Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long

Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long
Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long
Packaging Information
Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long

Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long

Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long

Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long

Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long

Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long

Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long

Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long

Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long

Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long

Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long

Dualrays D2 Series 50W Outdoor and Indoor LED Tri Proof LED Batten Light 160LMW 5ft Long
