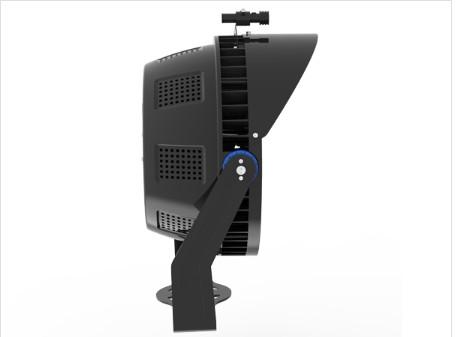

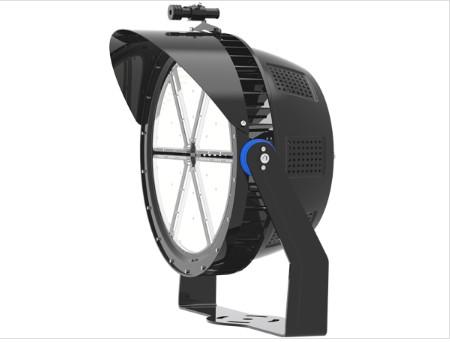

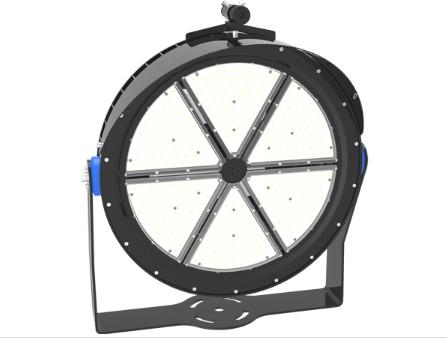

300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking
300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking
300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking
300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking
300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking
300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking
300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking
300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking
Specifications
Brand Name :
DUALRAYS
Model Number :
DR-SPL300-FG2
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
1pcs
Price :
negotiable
Delivery Time :
5-15 Bussiness Day
Packaging Details :
Netural Package/OEM and ODM Package Available
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000PCS/Month
Power :
300W
Efficiency :
150lm/W
Chips :
Lumileds 3030
CRI :
>80Ra
Warranty :
5 Years
Housing :
Die-Casting Al
Description

300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking

300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking
300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking
* Aiming device Laser Pointer;
* 30°/60°/90° beam angle for options;
* 400W 45000lm, for 800W MHL equivalent;
* ±360° adjustable bracket;
* TM21(L80>50000hrs);

300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking
Model No.
 DR-SPL300-FGXP DR-SPL400-FGXP DR-SPL600-FGXP DR-SPL800-FGXP
System Watts/W
 300W 400W 600W 800W
System Efficiency/LPW
 150LPW
Lumen Output/lm
 45.000±5% 60.000±5% 90.000±5% 120.000±5%
Rated Input Voltage/V
 AC100~277V, 50/60Hz
LEDs Light Source
 SMD5050
SDCM
 <5
CCT/K
 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
 >70Ra (>80Ra for Option)
Power Factor
 >0.95
THD
 <10%
Beam Angle(Optional)
 30°/60°/90°
UGR
 <25
Surge Protection
 4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
 Meanwell ELG / HLG Optional
IP Rating
 IP65
Dimming(Optional)
 1-10V, DALI,PWM,Zigbee for Option
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time 0.5s
Protection Class
 ClassⅠ
Finishing Color(Optional)
 Black RAL9017(Standard) / White RAL9016 Optional
Material
 Aluminum+PC
Lifespan/hrs
 70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
 - 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate
 CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking
Character/Power
300W
400W
600W
800W
300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking
A / mm
Ø445
Ø445
Ø537
Ø537
B / mm
321
321
373
373
300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking
300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking

300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking
300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking
300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking

300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking
300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking

300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking

300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking

300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking

Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-SPL300-FGXP
12.4
610*510*250
13.8
1PCS/CTN
DR-SPL400-FGXP
12.9
610*510*250
14.7
1PCS/CTN
DR-SPL600-FGXP
25.3
890*710*275
27.6
 1PCS/CTN
DR-SPL800-FGXP 25.9 890*710*275 28.8
1PCS/CTN


300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking
300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking

300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking


300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking

300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking

300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking

300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking

300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking

300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking

300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking

300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking

300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking

300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking 300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking

(DIALUX Simulation)
　　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　　
300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking
(Partnership)
300W Waterproof High Modular Mast Flood Lights For Stadium Large Parking
