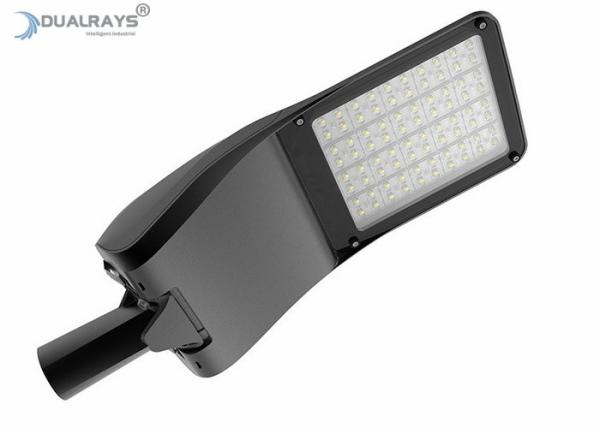

150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span

Specifications

Brand Name :

DUALRAYS

Model Number :

DR-ST150-DG1

Certification :

CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available

Place of Origin :

Shenzhen,China

MOQ :

2pcs

Price :

negotiable

Delivery Time :

5-15 Bussiness Day

Packaging Details :

Netural Package/OEM and ODM Package Available

Payment Terms :

L/C, T/T, Western Union

Supply Ability :

50000PCS/Month

Power :

150W

IP Grade :

IP66

Driver :

Meanwell/Inventronics/SOSEN

CRI :

80Ra/70Ra

Life Span :

50 000hrs

IK Class :

IK08

Description

150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span

> IP66 and IK10 for road lighting application;

> Driver and housing separated by spacers;

> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;

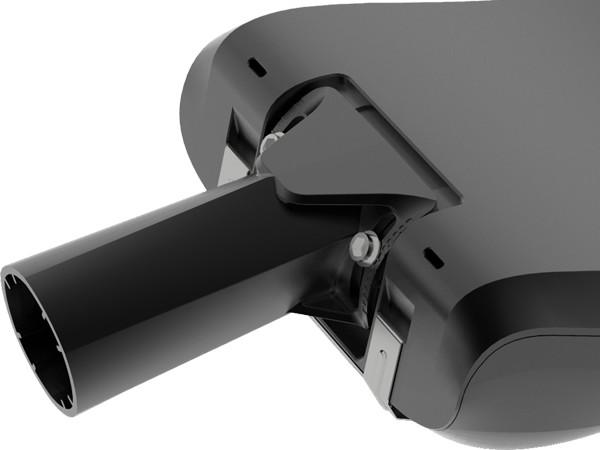

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;
Options:

> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;

* Walkways.

* Loading Area.

* Playground.

Model No.	DR-ST150-DG1
Rated Power/W	150
Systen Efficiency/LPW	140
Color Temperature	WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
Dimming Function	1-10VDC /DALI / PIR Sensor
Protections	Short circuit/Over current/Over voltage/Over temperature
Anti-salty spray	Grade A
Color Index	>80Ra
Beam Angle Options	Type I, Type II(Long&Medium), Type III(Medium), Type IV(Medium), Type V(Medium)
IP/Rating	IP66
Certificate	CE ROHS D-MARK SAA

30W/60W Version
150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span

90W,120W/150W/180W Version

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface
150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span

DALI Device
150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

Packaging Information
150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span

150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span

(DIALUX Simulation)

　　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　　
150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span

(Partnership)
