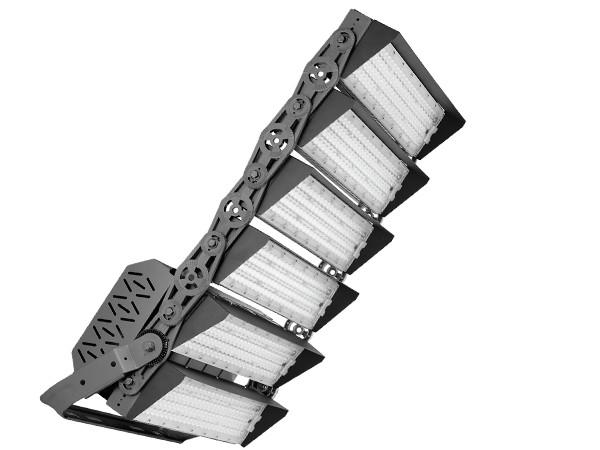

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv
1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv
1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv
1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv
Specifications
Brand Name :
DUALRAYS
Model Number :
DR-FL600-EGX
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
2pcs
Price :
negotiable
Delivery Time :
5-15 Bussiness Day
Packaging Details :
Netural Package/OEM and ODM Package Available
Payment Terms :
T/T, Western Union
Supply Ability :
50000PCS/Month
Rated Wattage :
600W
Driver :
Meanwell
Flux :
90000lm
Chips :
1344
Beam :
30°/45°/60°/90°
CCT :
6500K
Description

LED Sports Stadium Flood Light High Power LED High Mast Light

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv
Options:
> Driver: Meanwell ELG/HLG driver;
> Controls and Dimming: 1-10V, DALI,PWM,Zigbee;
> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;
> Lens : Symmetrical 25°/40°/50°/90°;
> Efficiency : 130~140LPW,150~160LPW
> Aiming Device: Laser Pointer;
> Light Glare: Shield;

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv
> Multiple and multipurpose sports facilities and arenas
> Stadiums and Racing tracks
> Public squares
> Outdoor arenas

> Indoor sports arenas and halls

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv

Model No.
 DR-SPL250-DGXX DR-SPL500-DGXX DR-SPL750-DGXX DR-SPL1000-DGXX DR-SPL1250-DGXX DR-SPL1500-DGXX
System Watts/W
 250W 500W 750W 1000W 1250W
1500W
System Efficiency/LPW
 150~160LPW
Lumen Output (Max) /lm
 40.000±5% 80.000±5% 120.000±5% 160.000±5% 200.000±5% 240.000±5%
Rated Input Voltage/V
 AC100~277V, 50/60Hz
LEDs Light Source
 SMD5050
SDCM
 <5
CCT/K
 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
 >70Ra (>80Ra for Option)
Power Factor
 >0.95
THD
 <10%
Beam Angle(Optional)
 20°/40°/60°/90°/140*60° Optional
UGR
 <25
Surge Protection
 4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
 Meanwell ELG/HLG
IP Rating
 IP66
Dimming(Optional)
 1-10V, DALI,PWM,Zigbee
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time 0.5s
Protection Class
 ClassⅠ
Finishing Color(Optional)
 Black RAL9017(Standard) / White RAL9016 Optional
Material
 Aluminum+PC
Lifespan/hrs
 70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
 - 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate
 CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv
1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv
1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv
1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv
1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv

Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-SPL300-DGXX
8.5
585*315*260
9.7
1PCS/CTN
DR-SPL600-DGXX
17.4
625*620*260
18.8
1PCS/CTN
DR-SPL900-DGXX
26.1
625*820*260
28.2
1PCS/CTN
DR-SPL1200-DGXX
34.2
625*1150*260
36.5
1PCS/CTN
DR-SPL1500-DGXX
39.3
790*1240*260
42.5
1PCS/CTN
DR-SPL1800-DGXX
42.1
790*1240*260
46.3
1PCS/CTN

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv
1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv

1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv 1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv

(DIALUX Simulation)
　　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　　
1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv
(Partnership)
1200W LED Sports Stadium Flood Light High Power High Mast Ground Led Sports Floodlights with ce rohs tuv
