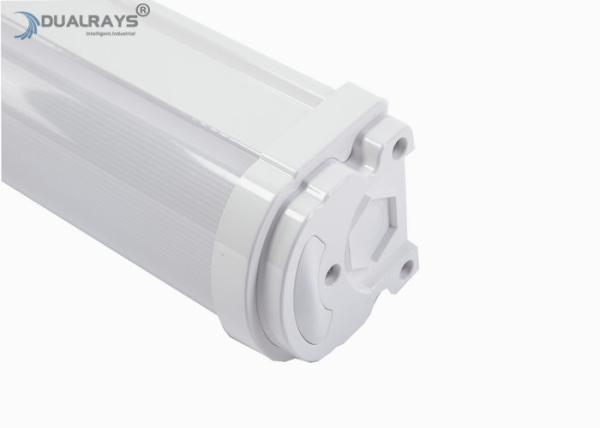

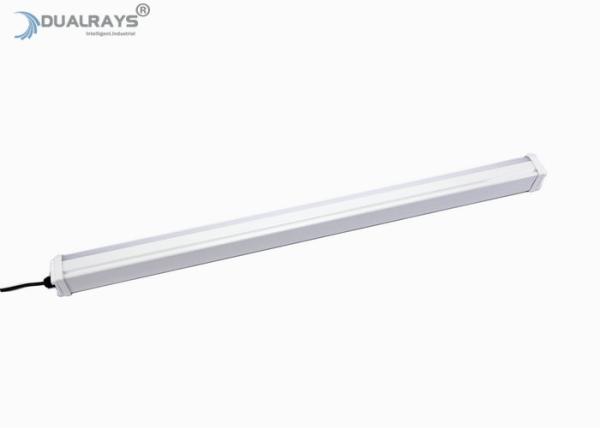

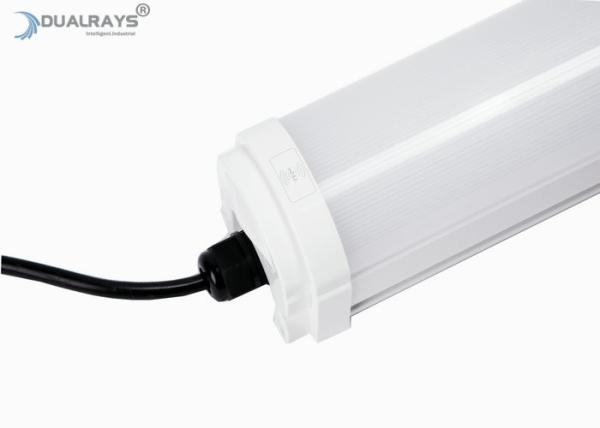

100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency
100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency
100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency
100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency
100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency
100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency
Specifications
Brand Name :
DUALRAYS
Model Number :
DR-TPL050-BG5X
Certification :
CE,RoHS,TUV/GS,LM79,LM80
Place of Origin :
Shenzhen,China
MOQ :
8PCS
Price :
Negotiable
Delivery Time :
5-15 business days
Packaging Details :
Netural Package/OEM and ODM Package Available,10PCS/CNT
Supply Ability :
100,000PCS/Month
IP/Rating :
IP65
Warranty :
5 years
CCT/K :
3000K-6500K
Stand-by dimming :
10% / 20% / 30% / 40% / 50%.
Beam Angle :
120°
Times :
100,000
Description
100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency

LED Tri Proof Light Feature:

Luminaire coated in an environmentally friendly polyester powder formulated in a silvery,black and white finish;

Suspended/Surface mounted/Adjustable installation for option;

Water-proof; Dust-proof; Damp-proof; Vapor-proof;

> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs,energy efficient - up to 160LPW;

> No UV or IR and completely mercury free;

> Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.

Item Symbol 2ft/20W 4ft/40W 5ft/50W
Model No / DR-TPL020-BG21 DR-TPL040-BG41 DR-TPL050-BG51
Rated Power W 20 40 50
LEDs Typ/Qty

SMD

2835

 144PCS 273PCS 312 PCS
Luminous Flux

Clear

Frost

3,200±5%

3,000±5%

6,400±5%

6,000±5%

8,000±5%

7,500±5%
Efficiency

Clear

Frost

Typ.160

Typ.150

Typ.160

Typ.150

Typ.160

Typ.150
Lumen Maintenance @ 6000 hrs Hours >80%
Switching Cycle before Failure Times 100,000
Life Span Hours 50,000
Warranty Years 3 years
Operation Temperature ℃ -15 ~ +50℃
Storage Temperature ℃ -25 ~ +55℃

After-Sales Service
a. 3 to 5 years quality warranty with lifelong maintenance.
b. Free guarantee repair (including labor and material): free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.
c. Responding time: upon receiving user’s notification, we ensure 24-hour after-sales technical support.
d. Spare parts: necessary spare parts are provided together with products to customers.
e. Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.
f. Telephone investigation: our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.
g. Software upgrade: lifelong maintenance of controlling system, incessant improvement of the system functions and continuous software upgrades.
h. Site instruction service of installation is available.
100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency
100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency
100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency
* Replacement for fluorescent NCF
* Workshops and warehouse
* Garage and car parks
* Sport facility
* Corridor/Gallery/Corridor
* Outdoor & Indoor Locations
100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency
100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency
100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency
Character/Length
2ft
4ft
5ft
100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency
A
600mm
1200mm
1500mm
B
74mm
74mm
74mm
C
74m
74mm
74mm
100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency
100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency
100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency
100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency
(I) Emergency Function
100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency

100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency
100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency
100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency
100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency
100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency

Q1: Is there MOQ requirement?

RE: No MOQ, Sample order for testing is welcome.

Q2: Can you do DIAlux Simulation?

RE: We have professional DIAlux team to support you, IES files also can be downloaded from our Website(www.dualrays.com).

Q3: Finished color?

RE: Standard colors: Black / White,other colors can be customized, based on MOQ 50PCS.

Q4: Can I have samples to test ?

RE: Yes,sure. Welcome to order samples for evaluation before bulk order.

Q5: LEDs are more expensive than other lighting options,why ?

RE: LEDs can operate as stand alone devices,but when grouped or clustered they require additional steps to operate properly. LEDs need proper components such as a circuits can be designed rapidly, but to ensure that they operate correctly and for long periods of time they require testing.

100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency

100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency

100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency

100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency

100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency

100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency

100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!

100W Fluorescent Tube PC LED Triproof Light 160LPW High Efficiency

Marketing Department
Tel: 0086-755-2306 6948
Fax: 0086-755-6164 1072
Zip Code: 518103
Email: sales06@dualrays.com
Add: 3rd Floor,Building A3 | Tianrui Industrial Park| #35,Fuyuan 1st Road,Fuyong Town,Bao'an Dist | Shenzhen 518103
