1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control
1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control
1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control
1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control
1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control
1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control
Specifications
Brand Name :
DUALRAYS
Model Number :
DR-SPL1000-EGXP
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000PCS/Month
Delivery Time :
5-15 Bussiness Day
Packaging Details :
Netural Package/OEM and ODM Package Available
Price :
Negotiated After Inquiry
Material :
Aluminium Alloy
Input Voltage :
AC85～277V 50/60Hz
Power :
1000W
Color :
Black
Lumen :
28,000lm
CCT :
5000K
Efficiency :
140lm/w
Power Factor :
0.95
Description

1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control
1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control

Options:
> Driver: Meanwell ELG/HLG driver;
> Controls and Dimming: 1-10V, DALI,PWM,Zigbee for Option;
> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;
> Lens : Symmetrical 20°/30°/60°/90°,Asymmetrical 140*60° optics optional;
> Aiming Device: Laser Pointer;

1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control
> Logistics areas (Ports)
> Stadiums and Racing tracks
> Public squares
> Apron lighting (Airports), Parking and Industrial areas
> Recreational sports lighting applications (Football, Hockey, Basketball, Golf,Tennis, etc)

1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control
Model No.
 DR-SPL300-EGXP DR-SPL400-EGXP DR-SPL500-EGXP DR-SPL600-EGXP DR-SPL800-EGXP DR-SPL1000-EGXP
System Watts/W
 300W 400W 500W 600W 800W
1000W
System Efficiency/LPW
 150~160LPW
Lumen Output/lm
 48.000±5% 64.000±5% 80.000±5% 96.000±5% 128.000±5% 160.000±5%
Rated Input Voltage/V
 AC100~277V, 50/60Hz
LEDs Light Source
 SMD5050
SDCM
 <5
CCT/K
 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
 >70Ra (>80Ra for Option)
Power Factor
 >0.95
THD
 <10%
Beam Angle(Optional)
 20°/30°/60°/90°/140*60° Optional
UGR
 <25
Surge Protection
 4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
 Meanwell ELG/HLG
IP Rating
 IP65
Dimming(Optional)
 1-10V, DALI,PWM,Zigbee for Option
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time 0.5s
Protection Class
 ClassⅠ
Finishing Color(Optional)
 Black RAL9017(Standard) / White RAL9016 Optional
Material
 Aluminum+PC
Lifespan/hrs
 70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
 - 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate
 CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control

1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control 1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control 1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control

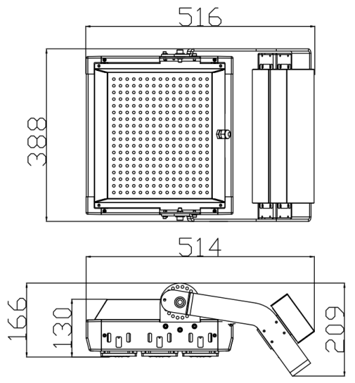

(300W) (400W) (500W)
1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control 1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control 1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control

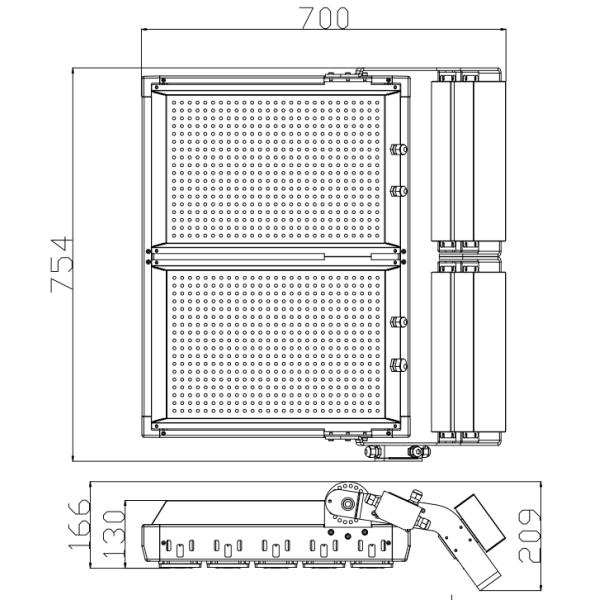

(600W) (800W) (1000W)

1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control
1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control
1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control
1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control
1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control

1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control
1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control

1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control

1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control

1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control
Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-SPL300-EGXP
13.1
590*505*250
14.2
1PCS/CTN
DR-SPL400-EGXP
16.9
680*505*250
18.2
1PCS/CTN
DR-SPL500-EGXP
4.8
790*505*250
23.5
1PCS/CTN
DR-SPL600-EGXP
22.1
830*590*250
28.4
1PCS/CTN
DR-SPL800-EGXP
30.8
830*690*250
32.5
1PCS/CTN
DR-SPL1000-EGXP
36.5
830*790*250
39.8
1PCS/CTN

1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control
1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control

1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control

1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control

1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control

1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control

1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control

1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control

1000W LED Sports Light Modular Structure Design 1-10V PWM DALI Zigbee Control
