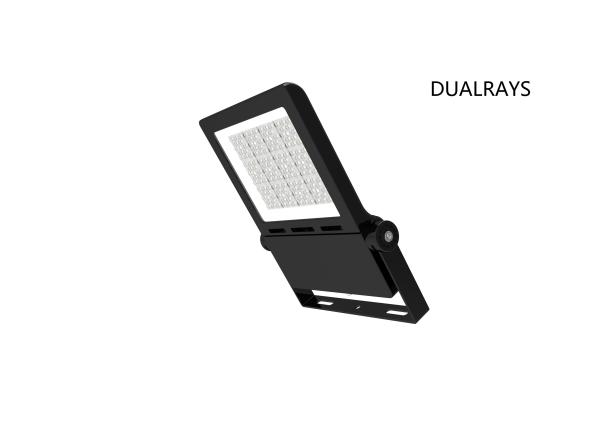

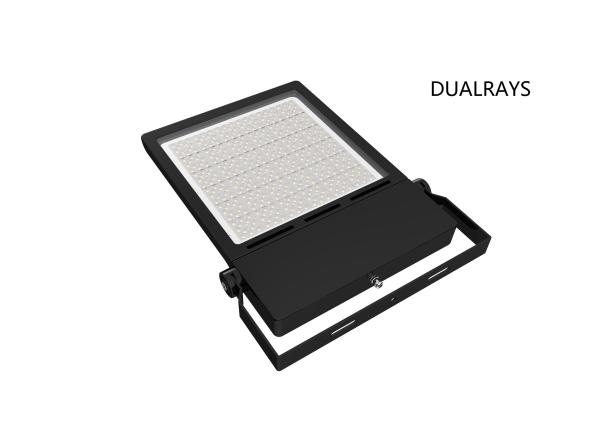

150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application
150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application
150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application
150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application
150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application
150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application
150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application
150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application
150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application
150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application
Specifications
Brand Name :
DUALRAYS
Model Number :
DR-FL150-CGXX
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen, China
MOQ :
1pcs
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
50000PCS/Month
Delivery Time :
5-15 Bussiness Day
Packaging Details :
Netural Package/OEM and ODM Package Available
Efficiency :
150LM/W
Beam Angle :
15°/30°/60°/90°
Warranty :
5 years
IP/Rating :
IP66
Material :
PC+Al
LEDs Light Source :
SMD3030
Description

150W 2020 Hot Sale LED Floodlight 150LPW Efficiency for Industrial and Public Application

150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application
150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application

Options:
> Driver: Sosen,Meanwell ELG/HLG driver;
> Controls and Dimming: 1-10V, DALI,PWM,Zigbee;
> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;
> Lens : Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV;
> Microwave Motion Sensor;

150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application
> Airports & Harbors
> Billboard illumination
> Large recreational sports facilities
> Industrial areas & Landscape buildings
> Roundabouts and motorway junctions

150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application
Model No.
 DR-FL050-CGXX DR-FL100-CGXX DR-FL150-CGXX DR-FL200-CGXX DR-FL300-CGXX
System Watts/W
 50W 100W 150W 200W
300W
System Efficiency/LPW
 120~125LPW
Lumen Output/lm
 6.500±5% 12.500±5% 18.750±5% 25.000±5% 37.500±5%
Rated Input Voltage/V
 AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source
 SMD3030
SDCM
 <5
CCT/K
 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
 >70Ra (>80Ra for Option)
Power Factor
 >0.95
THD
 <10%
Beam Angle(Optional)
 Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional
UGR
 <25
Surge Protection
 6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
 Sosen,Meanwell ELG / HLG Optional
IP Rating
 IP65
Dimming(Optional)
 1-10V, DALI,PWM,Zigbee for Option
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Sensor (Optional) Motion Sensor
Protection Class
 ClassⅠ
Finishing Color(Optional)
 Black RAL9017(Standard) / White RAL9016 Optional
Material
 Aluminum+Toughened Glass
Lifespan/hrs
 62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
 - 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate
 CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application
Character/Power
100W
150W
200W
240W
300W
150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application
A / mm
389
389
437
493
582
B / mm
297
297
346
379
444
C / mm
57
57
57
57
60

150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application
150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application
150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application
150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application
150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application

150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application

150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application

150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application

150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application

150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application
Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-FL050-CGXX
3.6
355*350*165
4.5
1PCS/CTN
DR-FL100-CGXX
3.8
355*350*165
4.7
1PCS/CTN
DR-FL150-CGXX
4.5
415*410*175
5.8
1PCS/CTN
DR-FL200-CGXX
5.7
475*470*195
7.3
1PCS/CTN
DR-FL300-CGXX
9.3
475*470*195
11.5
1PCS/CTN

150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application
150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application

150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application

150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application

150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application

Q1: What is the warranty for the F4 LED Flood Light?
RE: For the F4 Series LED flood light,Dualrays provide 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q3: Can you do DIAlux Simulation?
RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q4: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q5: Do you offer OEM or ODM?
RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:
1. We can provide you with our present products with your own label;
2. We can modify our products as your request;
3. We can even develop totally new products based on your design;
Q6: Labeling ?
RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).
