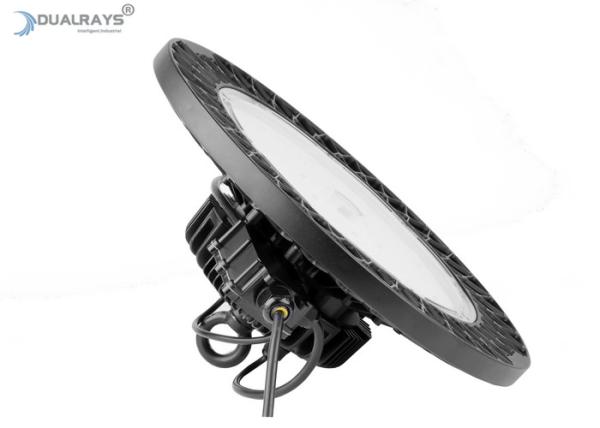

Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor
Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor
Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor
Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor
Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor
Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor
Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor
Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor
Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor
Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor
Specifications
Brand Name :
DUALRAYS
Model Number :
DR-ST150-EG1
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
1PC
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
5-15 Bussiness Day
Packaging Details :
Netural Package/OEM and ODM Package Available
Supply Ability :
50000PCS/Month
Input Voltage :
AC90V-305V
Power Effciency :
95%
Power Factor :
0.95
Junction Temperature :
<80℃
CRI :
>83Ra
Warranty :
5 Years
LED's Brand :
LUMILEDS
Material :
Aluminium Alloy
IP Rating :
IP66
Life Span :
50,000 Hours
Description

Dualrays 300W High Power HB5 Loop Hanging UFO LED High Bay Light Intellgent Control PIR Sensor

Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor
Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

Dualrays 300W High Power HB5 Series UFO LED High Bay Light-- Data Sheet

Model No DR-HB150-EG2
Rated Power 300Watt
Efficiency 140
Color Temperature WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
Dimming Function 1-10VDC /DALI / PIR Sensor
Protections Short circuit/Over current/Over voltage/Over temperature
Anti-salty spray Grade A
Dualrays 300W High Power HB5 Series UFO LED High Bay Light--Features
* LUMILEDS LUXEON High Brightness SMD3030 LEDs,SOSEN Driver;
* IP65 IK10 Protection;
* 60°/90°(with lens)/120°(without lens) beam angle optional;
* D-Mark tested for the use in paper production,wood processing etc with toughened glass;
* Multiple installations: loop hanging, ceiling mounting, wall mounting,pipe mounting;
* Various intelligent control: 1-10V, DALI, Motion sensor, Daylight sensor,Zigbee and Emergency;
* Customized supported for special projects;

Dualrays 300W High Power HB5 Series UFO LED High Bay Light--Options:
> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen
> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.
> Reflector : PC reflector with / without cover.pipe mounting.
> Installation: loop hanging, ceiling mounting, wall mounting,
> Customized supported for special projects.
Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor
> Factories / Warehouses /Workshops
> Exhibitions & showrooms
> Barns and riding halls
> High rooms and halls
> Traditional lamp replacement


Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor
Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

Character/Power
100W
150W
200W
240W
Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor
A
Ø350mm
Ø350mm
Ø420mm
Ø420mm
B
210mm
210mm
220mm
220mm


Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor
Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor
Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor
Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor
Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor
Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

DALI Device
Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

DALI Intelligent Control Diagram
Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

DALI Intelligent Control Operator Interface
Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor
Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor
Packaging Information
Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor
Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!

Dualrays 300W UFO LED High Bay Light High Power HB5 Loop Hanging Intellgent Control PIR Sensor

Marketing Department
Tel: 0086-755-2306 6948
Fax: 0086-755-6164 1072
Cila Zhang
Sales Engineer
Email: sales08@dualrays.com
Zip Code: 518125
Add: 6th Floor,Building 10, Gangzai Industrial Park, Furong Industrial Park,Xinqiao Industrial District,Shajing,Bao‘an District,Shenzhen 518125, P.R.China
