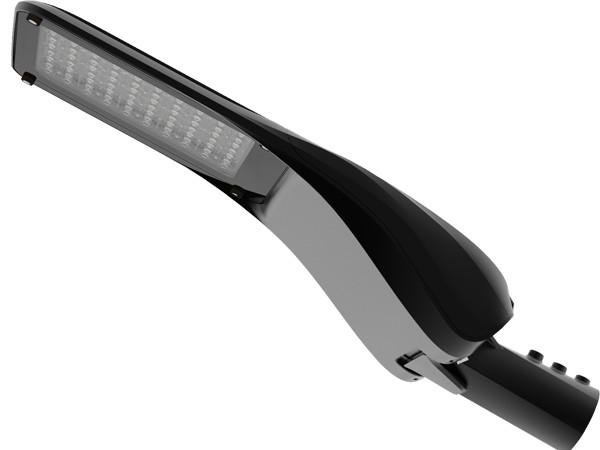

European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming
European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming
European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming
European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming
European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming
European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming
European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming
European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming
Specifications
Brand Name :
DUALRAYS/OEM
Model Number :
DR-ST120-DG2
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
2PCS
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
50000pcs/month
Delivery Time :
5-15 business days
Packaging Details :
Netural Package/OEM and ODM Package Available
Price :
Negotiated After Inquiry
Material :
Aluminum+PC+Toughened Glass
Input Voltage :
AC85～277V 50/60Hz
Power Ranges :
30W/60W/90W/120W/150W/180W
Lifespan/hrs :
>50.000 Hrs (Ta=30 @L70)
CCT :
3000/4000/5700/6500K±200K
CRI :
>70Ra (>80Ra for Option)
Beam Angle(Optional) :
TypeⅠ/TypeⅡ(Long & Medium)/TypeⅢ(Medium)/TypeⅣ /TypeⅤ (Medium) (Medium)
Guarantee :
5 Years Standard / 7 to 10 Years Negotiated
Surge Protection :
6~10KV SPD Driver,Exterior SPD 10KV() or 20KV Meanwell Optional
VAS :
Customized supported for special projects
Description

European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming

European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming
Model No. DR-ST030-DGX DR-ST060-DGX DR-ST090-DGX DR-ST120-DGX DR-ST150-DGX DR-ST180-DGX
System Watts/W 30W 60W 90W 120W 150W 180W
System Efficiency/LPW 120LPW/150LPW (Optional)
Rated Input Voltage/V AC100~277V 50/60Hz
Lumen Output/lm 3.600~4.500±5% 7.200~9.000±5% 10.800~13.500±5% 14.400~18.000±5% 18.000~22.500±5% 21.600~27.000±5%
Finishing Color(Optional) Black RAL9017 / White RAL9016
Protection Class ClassⅠ
LED Driver Meanwell ELG/HLG,Sosen
Dimming(Optional) 0/1-10V/PWM/DALI/Zigbee
Beam Angle(Optional) TypeⅠ/TypeⅡ(Long & Medium)/TypeⅢ(Medium)/TypeⅣ /TypeⅤ (Medium) (Medium)
Lifespan/hrs >50.000 Hrs (Ta=30 @L70)
Operation Temp/℃ -40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃ -40°C to + 65°C(-40°F to 149°F)

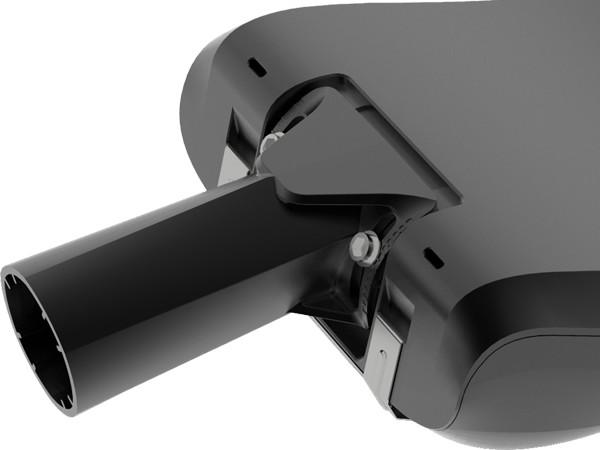

Pipe Diameter φ60mm
Certificate CE(EMC+LVD),RoHS,D-Mark,SAA,RCM Available

European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming
30W/60W Version
European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming
90W,120W/150W/180W Version
European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming

European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming
European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming

European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming
European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming
European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI DimmingEuropean Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI DimmingEuropean Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI DimmingEuropean Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming
European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming
Zigbee Wireless Intelligent Control Diagram
European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming
Zigbee Wireless Intelligent Control Operator Interface
European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming
European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming
DALI Device
European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming

DALI Intelligent Control Diagram
European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming

DALI Intelligent Control Operator Interface
European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming
European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming
European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming
European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming

European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming

European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming

European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming

European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming

European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming

European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming

European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming

European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
