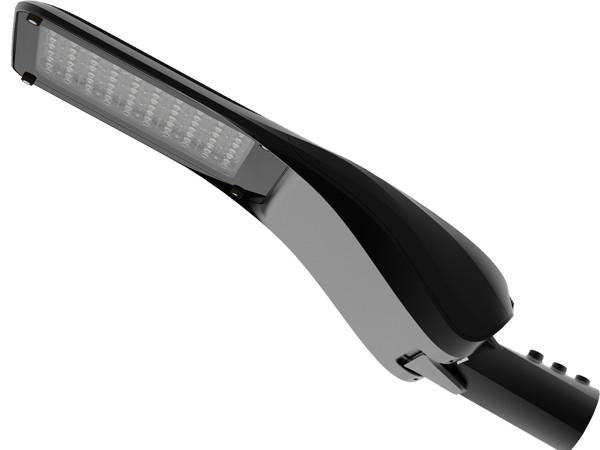

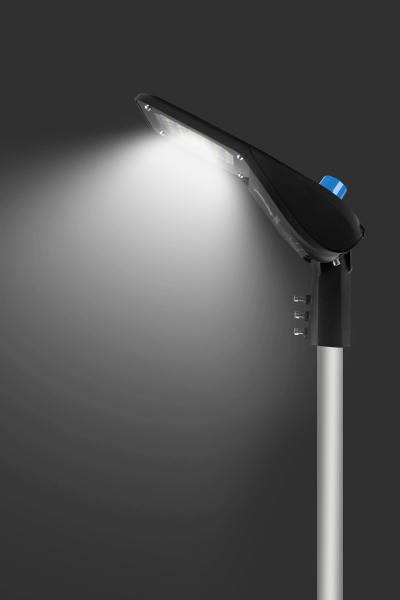

DUALRAYS S4 Latest Design 120W LED Street Light Outdoor Street Light Fixtures 150LPW Efficiency

Specifications

Brand Name :

DUALRAYS/OEM

Model Number :

DR-ST120-DG1

Certification :

CE(EMC+LVD),RoHS,D-Mark,SAA,RCM Available

Place of Origin :

Shenzhen,China

MOQ :

2PCS

Payment Terms :

Western Union, T/T, L/C

Supply Ability :

100000pcs/month

Delivery Time :

5-15 business days

Packaging Details :

Netural Package,color box package,1PCS/CTN,590(L)*380(W)*200(H)mm

Price :

Negotiated After Inquiry

Material :

Aluminium Alloy +PC

Input Voltage :

AC85～277V 50/60Hz

Power Ranges :

30W/60W/90W/120W/150W/180W

Beam Angle(Optional) :

TypeⅠ/TypeⅡ(Long & Medium)/TypeⅢ(Medium)/TypeⅣ /TypeⅤ (Medium) (Medium)

CCT :

3000/4000/5700/6500K±200K

Surge Protection :

6~10KV SPD Driver,Exterior SPD 10KV() or 20KV Meanwell Optional

LED Driver :

Meanwell ELG/HLG,Sosen

Guarantee :

5 Years Standard / 7 to 10 Years Negotiated

LEDs :

SMD3030/SMD5050

Dimming(Optional) :

0/1-10V/PWM/DALI/Zigbee

Description

DUALRAYS S4 Latest Design 120W LED Street Light Outdoor Street Light Fixtures 150LPW Efficiency

Efficiency:
STANDARDLine:

PROLine: 120LPW

PRIMELine: 150LPW

Features:

* LUMILEDS LUXEON High Brightness SMD5050/3030 LEDs,SOSEN/Meanwell/Inventronics Driver;

* IP66 Protection;

* ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;
* Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;

* Various Intelligent Control: 1-10V, DALI, Microwave Sensor, Daylight Sensor, Zigbee for Option;
* Customized supported for special projects;

> High brightness LUXEON SMD3030 LEDs,energy efficient - up to 150 lm/w;

> Die-casting Al for excellent heat dissipation;

> Superior PC reflector-optic for low glare applications,and toughened glass protection;

> IP66 and IK10 for road lighting application;

> Driver and housing separated by spacers;

> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;

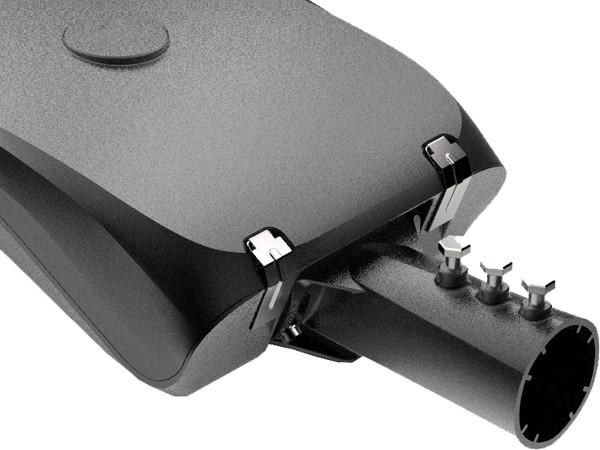

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty,7 or 10 years warranty negotiated;

Options:

> Driver: ELG/HLG,Sosen;

> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;

> 10KA SPD,20KA Meanwell SPD optional;

> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;
> Light pole adapter for different poles optional;

> Customized supported for special projects;

* Roadways.

* Avenues.

* Walkways.

* Loading Area.

* Parking lot.

* Playground.
* Sport and Stadium.

30W/60W Version
DUALRAYS S4 Latest Design 120W LED Street Light Outdoor Street Light Fixtures 150LPW Efficiency

90W,120W/150W/180W Version

DUALRAYS S4 Latest Design 120W LED Street Light Outdoor Street Light Fixtures 150LPW Efficiency

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
